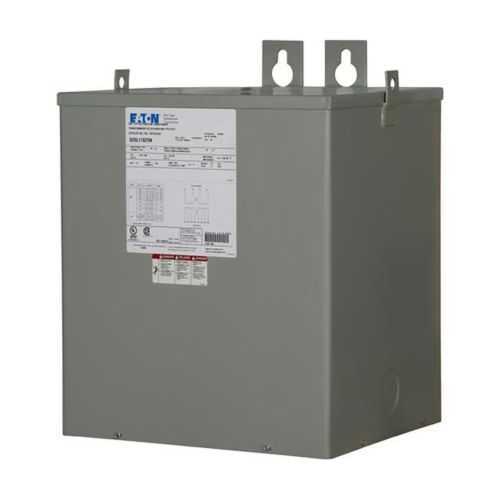

Eaton S86N08P76XCE General Purpose Transformer - CE
Part Number: S86N08P76XCE
Quick Summary
The Eaton S86N08P76XCE general purpose encapsulated transformer delivers reliable low-voltage isolation for industrial control panels. In harsh environments, technicians often battle moisture ingress and voltage drift that threaten uptime. It carries CE marking and copper windings with an EP design suitable for indoor-outdoor use, aligning with common safety and performance standards. By choosing this transformer, you gain a familiar form factor with straightforward installation and predictable secondary voltages, supporting efficient control-system integration and reducing field service time. This translates to cost-effective maintenance, enhanced reliability, and faster deployment across multiple panel builds.
Product Information
Extended Description
S86N08P76XCE Eaton: Eaton General purpose encapsulated transformer, EP, copper, 67P, 50-60 Hz, single-phase, 208 V, 240 V, 24/48 V, None, 115 °C rise, 0.75 KVA, indoor-outdoor, 17D
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S86N08P76XCE
UPC
786680112560
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
Contact Manufacturer
Catalog Notes
CE Marked.
Coil material
Copper
Design
EP
Frame
67P
Tap size
None
Type
General-purpose encapsulated transformer
Wiring connection
17D
Frequency rating
50-60 Hz
Phase
Single-phase
Primary voltage
208 V, 240 V
Secondary Voltage
24/48 V
Temperature rise
115 °C rise
Volt ampere rating
0.75 kVA
Weathershield
Indoor-Outdoor
Copper windings and EP design provide high electrical conductivity and robust thermal performance, delivering improved efficiency and reliable operation in demanding environments. This directly reduces unexpected outages and extends service life in automation panels where steady control signals are critical. The 0.75 kVA (750 VA) rating supports typical control-circuit loads, enabling compact panel layouts without compromising power delivery or control reliability in 50-60 Hz systems. With primary voltages of 208/240 V and a secondary of 24/48 V, it simplifies wiring and panel distribution, accelerating installation and reducing commissioning time for new lines or machine retrofits. The 67P frame and 17D wiring design enable straightforward mounting and routing within standard enclosures, minimizing enclosure alterations and spare-part inventories. Indoor-outdoor capability (Weathershield) lowers enclosure protection costs and broadens deployment to damp or exposed environments. A copper coil design also offers lower losses and longer-term reliability, supporting higher uptime in continuous-process applications. The 115 °C rise rating provides a clear thermal margin for moderately intensive loads, delivering dependable performance in moderately hot factory floors. A one-year warranty (or 18 months from shipment, per Eaton policy) reduces lifecycle risk for procurement and maintenance planning.
Get a Quick Quote for a Eaton S86N08P76XCE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S86N08P76XCE?
Enquire Now
FAQs
Install with the 67P frame in a standard enclosure, using the 17D wiring configuration. Ensure adequate clearance for heat dissipation and follow the Edwards/Eaton mounting guidelines. The device supports indoor-outdoor use, so place it where humidity or moisture exposure is possible, but maintain ventilation. Verify the primary voltage is set to 208 or 240 V and confirm the secondary outputs are wired to the 24/48 V control circuits. Always observe local electrical codes and IEC/UL guidelines for panel installations.
Key specs include single-phase operation at 50-60 Hz, primary voltage of 208/240 V, secondary voltage of 24/48 V, and a 0.75 kVA (750 VA) rating. The transformer exhibits a 115 °C rise, which informs cooling and enclosure air-flow considerations. Copper windings support high conductivity and reliability, while the EP encapsulation provides protection in variable ambient conditions. Use these figures to size feeders, fuses, and protective relays in control-systems within standard automation panels.
Yes. The S86N08P76XCE is designed for general-purpose, encapsulated use with indoor-outdoor capability, making it suitable for automation panels exposed to temperature fluctuations or damp conditions. Its 0.75 kVA rating covers typical control circuits powering relays, sensors, and PLC inputs. The 24/48 V secondary aligns with common control logic voltages, while copper windings and robust encapsulation enhance reliability, uptime, and ease of integration into existing panel architectures.
The product is CE Marked, indicating conformance with European safety and performance standards. Catalog notes also indicate ‘Certifications: Contact Manufacturer’ for region-specific or additional approvals. For projects requiring UL, CSA, or IP ratings, verify with Eaton or request a formal certification package to ensure alignment with your facility’s regulatory requirements.
Eaton provides a one-year warranty from the date of installation or eighteen months from shipment, whichever comes first. This reduces lifecycle risk and supports procurement budgeting. The transformer’s indoor-outdoor rating and copper-wound design contribute to long-term reliability and lower maintenance costs by reducing moisture-related failures and cooling demands in typical automation environments.
