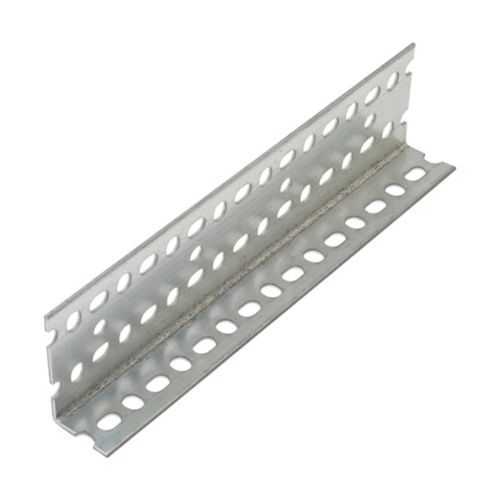

Eaton SA318-12PLN Slotted Angle - UL Listed
Part Number: SA318-12PLN
Quick Summary
Eaton SA318-12PLN slotted angle is a durable framing member used for rack mounting and electrical installations. Engineers often face retrofit challenges, misalignment, and inconsistent load paths; this product delivers precise dimensions and a UL Listed safety baseline to mitigate those risks. The unit uses 12 gauge steel with a plain green finish, aligning with standard industrial practices and providing reliable support across diverse environments. By leveraging a component that fits seamlessly with existing B-Line series hardware, teams can reduce installation time, repairs, and total cost of ownership. In short, it combines robust mechanical performance with practical, field-friendly usability for electrical and data-center projects.
Product Information
Extended Description
SA318-12PLN Eaton: Eaton B-Line series slotted angle, 1.5781" H x 2.25" L x 1.5781" W, Plain finish, Green, 12 gauge, Single piece (up) beam section
Product Name
Eaton B-Line series slotted angle
Catalog Number
SA318-12PLN
UPC
782051282290
Product Length/Depth
2.25 in
Product Height
1.578125 in
Product Width
1.578125 in
Product Weight
1.32 lb
Certifications
UL Listed
Application
Steel channels
Type
Single piece (up) beam section
Color
Green
Finish
Plain
Material gauge
12 gauge
Feature: 12 gauge steel construction provides strong load-bearing capacity and durability. Business Impact: Higher reliability in mounting rails and equipment reduces maintenance and replacement costs in harsh industrial settings. Application: Ideal for rack framing and supporting electrical components in automation installations. Feature: Plain finish with green color for visibility and easy identification. Business Impact: Improves on-site organization and reduces misplacement or misidentification during retrofit work. Application: Visible framing in control panels and equipment racks where quick visual verification is helpful. Feature: Compact dimensions (2.25 in length, 1.578125 in height and width) and 1.32 lb weight. Business Impact: Easier handling, faster cutting, and simplified on-site fitting in tight spaces, reducing install time. Application: Small-scale mounting where space is at a premium in industrial cabinets and enclosures. Feature: UL Listed certification. Business Impact: Provides safety assurance and regulatory alignment for electrical installations, supporting compliance-driven procurement. Application: Electrical enclosures, data-center cabinets, and industrial control panels. Feature: Single piece up beam section design. Business Impact: Fewer joints means faster assembly, fewer fasteners, and lower risk of misalignment during installation. Application: Retrofit projects and new builds requiring streamlined framing."
Get a Quick Quote for a Eaton SA318-12PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SA318-12PLN?
Enquire Now
FAQs
The SA318-12PLN features a height of 1.578125 in, length of 2.25 in, width of 1.578125 in, and weighs 1.32 lb. It is built from 12 gauge steel and finished in plain green.
Yes. SA318-12PLN is designed as a single-piece up-beam section in the Eaton B-Line series and is compatible with standard 12 gauge slotted angle hardware and mounting practices used in steel channel framing.
SA318-12PLN is well-suited for rack mounting, equipment support, and framing in electrical enclosures and control cabinets, especially in environments where quick installation and reliable load paths are needed.
SA318-12PLN carries UL Listed certification, confirming safety and suitability for electrical installations. For other regulatory requirements, consult the datasheet.
Use proper mounting hardware sized for 12 gauge framing, ensure loads remain within the beam’s capacity, and install in a dry, controlled environment to minimize corrosion and wear over time.
