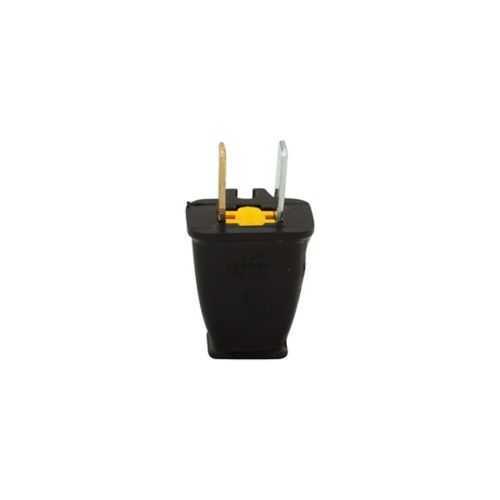

Eaton SA940 straight blade plug - cULus Listed
Part Number: SA940
Quick Summary
Eaton straight blade plug is a rugged electrical connector designed for industrial power distribution. It delivers reliable back-wire termination for #16 AWG conductors in demanding environments, reducing wiring errors and field failures. This plug is rated at 15A and 125V, with polarized contacts and a cord clip to maintain orientation and provide strain relief. The device is cULus Listed and meets Federal Specification Classification 6221 02, supporting safe North American installations across harsh environments. For engineers and procurement teams, the combination of compact size, durable thermoplastic housing, and straightforward installation translates to faster builds, lower maintenance, and improved system reliability. The two-pole, two-wire configuration and screw connections further enhance compatibility across a broad range of industrial applications.
Product Information
Extended Description
SA940 Eaton: Eaton straight blade plug , #16 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Impact-resistant thermoplastic, 1-15P, Two-pole, two-wire, Screw, 0.33" in diameter, Thermoplastic, Core pack, with cord clip
Product Name
Eaton straight blade plug
Catalog Number
SA940
UPC
052757940207
Product Length/Depth
1.17 in
Product Height
1.07 in
Product Width
1.07 in
Product Weight
0.055 lb
Certifications
cULus Listed Federal Specification Classification 6221 02
Device type
Plug
Special features
PolarizedCord clipNon-grounding
Type
Plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Polarized Cord clip Non-grounding
Application
Industrial
Device grade
Standard grade
Wiring method
Back wire
Number of wires
2
Number Of Poles
Two-pole
Style type
Straight body with cord clip
Cord range
0.33" in diameter
Material
Thermoplastic
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#16 AWG
NEMA configuration
1-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic
Receptacle type
Two-pole, two-wire
Residential Buyers Guide B-53
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - SA940
Back-wire terminations for #16 AWG provide fast, secure connections with reduced field wiring errors, delivering measurable installation time savings and improved reliability in panel builds. This translates to lower labor costs and less rework in control cabinets and industrial equipment. Polarized design and a dedicated cord clip ensure correct mating orientation and robust strain relief, minimizing mis-wiring and cord movement during vibration-heavy operations. The brass contact material delivers dependable conductivity with durable, low-resistance performance, while the impact-resistant thermoplastic housing protects the assembly in dirty or collision-prone environments, reducing replacement cycles. A compact straight-body form with a 0.33 inch cord diameter compatibility supports tight panel layouts and quick field swaps. Compatibility with back-wire screws and standard core-pack packaging streamlines stocking and reduces procurement complexity.
Get a Quick Quote for a Eaton SA940
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SA940?
Enquire Now
FAQs
SA940 uses back-wire termination for #16 AWG conductors, enabling fast, secure terminations without soldering. This reduces现场 wiring time, minimizes the risk of loose connections, and simplifies field maintenance. In control panels or industrial power cords, back-wire simplifies harness assembly while preserving reliable electrical contact.
Yes, SA940 is designed for back-wire terminations and supports #16 AWG conductors. This compatibility ensures a clean, secure connection in tight panel spaces and supports standard industrial wiring practices, reducing the need for additional adapters or specialized tools during installation.
SA940 is cULus Listed and meets Federal Specification Classification 6221 02, providing assurance for cross-border safety and performance in harsh environments. These certifications help validate compliance for electrical installations in manufacturing, processing, and general industrial facilities.
SA940 uses a 1-15P NEMA configuration with a two-pole, two-wire design. The specified torque rating is 14 lbf-in, ensuring a secure termination when tightened to the recommended specification, which helps prevent loosening under vibration and ongoing duty cycles in industrial settings.
The polarized design, cord clip, and back-wire termination facilitate quick installations and easier field swaps, reducing downtime during maintenance. Durable brass contacts and impact-resistant thermoplastic housing resist wear and environmental exposure, lowering replacement frequency and extending asset life—delivering tangible ROI through uptime gains and maintenance cost containment.
