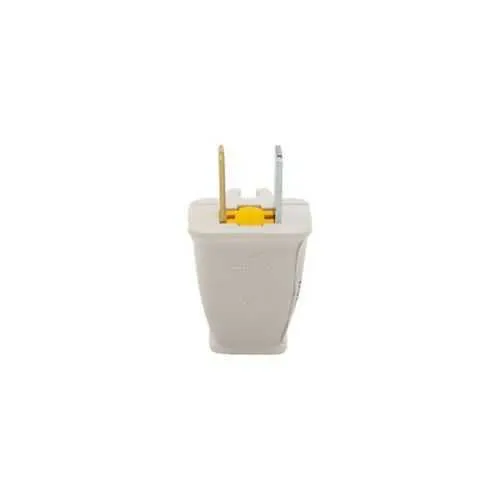

Eaton SA940W Straight Blade Plug - 15A 125V cULus Listed
Part Number: SA940W
Quick Summary
SA940W straight blade plug delivers reliable 15A, 125V connections for industrial equipment and wiring projects. Engineers often struggle with miswiring and loose terminations in back-wired plugs, which can lead to downtime or safety risks. This part is cULus Listed and Federally classified under 6221 02, providing robust regulatory alignment; it also carries polarized design for safer operation. Designed for industrial wiring devices and control panels, it supports secure cord management with a cord clip, delivering consistent performance in rugged environments while simplifying installation costs and maintenance.
Product Information
Extended Description
SA940W Eaton: Eaton straight blade plug , #16 AWG, 15A, Industrial, 125V, Back wire, White, Brass, Impact-resistant thermoplastic, 1-15P, Two-pole, two-wire, Screw, 0.33" in diameter, Thermoplastic, Core pack, with cord clip
Product Name
Eaton straight blade plug
Catalog Number
SA940W
UPC
052757940405
Product Length/Depth
1.17 in
Product Height
1.07 in
Product Width
1.07 in
Product Weight
0.055 lb
Certifications
cULus Listed Federal Specification Classification 6221 02
Device type
Plug
Special features
PolarizedCord clipNon-grounding
Type
Plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Polarized Cord clip Non-grounding
Application
Industrial
Device grade
Standard grade
Wiring method
Back wire
Number of wires
2
Number Of Poles
Two-pole
Style type
Straight body with cord clip
Cord range
0.33" in diameter
Material
Thermoplastic
Packaging type
Core pack
Color
White
Connection type
Screw
Allowable wire size
#16 AWG
NEMA configuration
1-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic
Receptacle type
Two-pole, two-wire
Residential Buyers Guide B-53
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - SA940W
Feature: 15A at 125V rating enables compatibility with common US industrial equipment, reducing the risk of overloading circuits. Business Impact: Supports standard power distribution across panels and tools, improving uptime and safety. Application: Ideal for control panels, motors and compatible devices using #16 AWG wiring. Feature: Back wire termination and screw connection offer secure, fast terminations with consistent torque. Business Impact: Cuts installation time and minimizes termination loosening during vibration. Application: Suitable for field and panel wiring where reliability matters. Feature: Polarized design with a cord clip provides safer, easier cord routing and reduced misconnection. Business Impact: Increases operator safety and cord management efficiency, lowering rework. Application: Industrial cords and equipment leveraging straight blade plugs. Feature: Impact-resistant thermoplastic body and brass contact material deliver durable, corrosion-resistant performance. Business Impact: Extends service life in harsh environments, reducing replacement costs. Application: Heavy-use environments in factories and plants. Feature: NEMA configuration 1-15P with 0.33" cord diameter allowance and core pack packaging supports streamlined sourcing and installation. Business Impact: Simplifies compatibility checks and inventory control, accelerating project timelines. Application: Wiring devices in new installations and retrofit projects.
Get a Quick Quote for a Eaton SA940W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SA940W?
Enquire Now
FAQs
The SA940W uses back-wire termination for two conductors, allowing you to insert stripped conductors into the rear of the plug and secure them with the integrated terminal screws. This provides a fast, mess-free method suitable for #16 AWG conductors, delivering reliable, vibration-resistant connections in industrial settings.
SA940W is rated for 15A at 125V and supports #16 AWG conductors. With brass contact material and an impact-resistant thermoplastic body, it delivers durable connections for everyday industrial power distribution and control panel applications.
Yes. The SA940W is designed for industrial use, featuring polarized design, cord clip for strain relief, 1-15P NEMA configuration, and back-wire capability, making it well-suited for control panels, motors, and other equipment requiring reliable two-wire, two-pole connections.
SA940W is cULus Listed and classified under Federal Specification 6221 02. These certifications support compliance in many industrial environments and help simplify regulatory approvals for commercial and manufacturing installations.
The polarized design, secure back-wire terminations, and cord clip reduce miswiring and cord strain, lowering maintenance calls and rework. Durable thermoplastic construction extends service life in harsh environments, improving uptime and return on investment for equipment and panel wiring projects.
