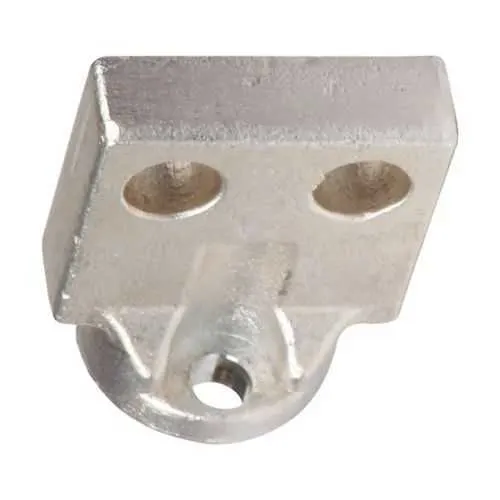

Eaton SADP316 Universal Terminal Adapter - UL Listed
Part Number: SADP316
Quick Summary
Eaton SADP316 universal terminal adapter enables high-current interfacing for Power Defense ICCB systems. Engineers often face mismatched terminations and wiring complexity during NF frame protection upgrades, leading to delays and wiring errors. The kit is UL Listed, ANSI CSA Certified, and NEMA Compliant, providing robust protection for up to 1600 A Iu and compatible with the Series NRX NF frame. In addition to rugged performance, the hardware-included design simplifies sourcing and reduces field wiring time, delivering measurable lifecycle savings and easier maintenance for critical electrical protection schemes.
Product Information
Extended Description
SADP316 Eaton: Eaton Power Defense ICCB adapter kit, Universal terminal adapter, Universal interrupt, Three-pole, Power Defense ICCB, NF Frame, 3 per box, Up to 1600A
Product Name
Eaton Series NRX adapter kit
Catalog Number
SADP316
UPC
786685441009
Product Length/Depth
3.25 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Warranty
One year factory warranty issued from date of shipment from repair center
Compliances
NEMA Compliant
Certifications
UL Listed ANSI CSA Certified
Catalog Notes
Hardware included
Type
Universal terminal adapter
Frame
NF
Rated uninterrupted current (Iu)
1600 A
Accessories
Adapter kit
Interrupt rating
Universal
Series
Series NRX
Number of poles
Three-pole
Quantity
19
Feature: Universal terminal adapter supports the NRX kit integration, reducing part mismatch. Business Impact: Streamlines installation, minimizes mis-wires, lowers downtime. Application: NF frame Power Defense ICCB in industrial facilities. Feature: Three-pole, high-current capability; Impact: Supports 1600 A uninterrupted current, enabling safe future-proofing of feeders and bus bars. Application: Data centers and manufacturing lines with heavy loads. Feature: Hardware included; Impact: Ready-to-install kit reduces sourcing complexity. Application: Field installs with standard Eaton NRX assemblies. Feature: Certifications and compliance; Impact: Ensures regulatory acceptance and reduced QA checks. Application: Compliance-bound projects in North America. Feature: Box quantity and packaging; Impact: 19 units per box improves procurement efficiency.
Get a Quick Quote for a Eaton SADP316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SADP316?
Enquire Now
FAQs
SADP316 uses universal terminals designed to interface with Eaton NRX assemblies on NF frame systems. Begin by verifying NF frame compatibility, mounting the adapter kit to the ICCB per the included hardware, and connecting the universal terminals to the bussing or conductors as specified. Torque values and safety checks follow UL guidelines to ensure a compliant, repeatable installation.
The SADP316 supports a rated uninterrupted current (Iu) of up to 1600 A with a universal interrupt, suitable for high-current defense schemes. It is a three-pole NRX adapter designed for NF frame protection, ensuring consistent performance under continuous load and during fault conditions.
Yes. The 1600 A Iu rating and universal interrupt capability, combined with NF frame compatibility, make the SADP316 ideal for Power Defense ICCB configurations in manufacturing and processing plants. The included hardware and NRX series compatibility simplify integration with existing Eaton protection schemes and minimize change orders.
SADP316 carries UL Listed, ANSI CSA Certified, and NEMA Compliant status, ensuring regulatory acceptance in North American facilities. These certifications support safer installations, reduce QA checks, and help meet project compliance requirements for electrical protection accessories in industrial environments.
Eaton backs SADP316 with a one-year factory warranty from shipment date. The hardware-included kit lowers total cost of ownership by reducing field sourcing steps, speeding installations, and minimizing downtime in high-current protection applications, delivering visible ROI in maintenance cycles and uptime improvement.
