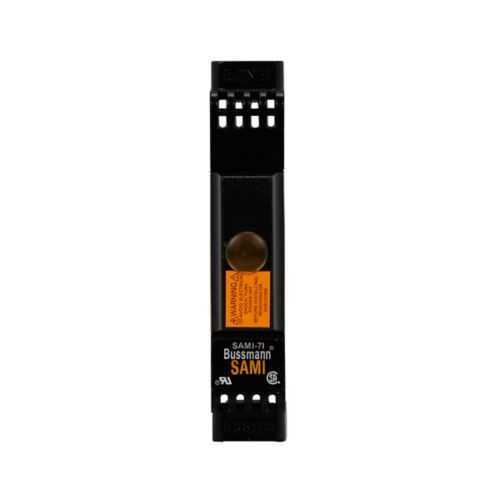

Eaton SAMI-7I Fuse Block Cover - Class CC, 600V
Part Number: SAMI-7I
Quick Summary
SAMI-7I fuse block cover provides dead-front protection for Eaton Bussmann class CC fuses used in electrical control panels. This enclosure helps eliminate exposed live parts, reducing maintenance risk and improving worker safety. While the data confirms RoHS compliance and a 600 V rating, there is no explicit SIL, CE, or IP certification listing in the provided specification; designers should verify site-specific regulatory requirements. The product is designed for compatibility with Midget and Class CC type fuses, offering a compact footprint that supports efficient panel layouts. By aligning with Eaton’s Bussmann series, this cover delivers reliable protection while enabling straightforward installation and serviceability in industrial environments.
Product Information
Extended Description
SAMI-7I Eaton: Eaton Bussmann series SAMI fuse block cover, Dead front, 0-30 A, Class CC, With Indicator, 600 Vac/dc, Used with Midget and Class CC Type fuses
Product Name
Eaton Bussmann series SAMI fuse block cover
Catalog Number
SAMI-7I
UPC
051712796903
EAN
5027590529297
Product Length/Depth
4.88 in
Product Height
1.58 in
Product Width
1.15 in
Product Weight
0.05 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
0-30A
Voltage rating
600 Vac, 600 Vdc
Class
Class CC
Fuse indicator
Non-indicating With Indicator
Special features
Dead front
Used with
Used with Midget and Class CC Type fuses
Bussmann series Fuseology
Eaton Specification Sheet - SAMI-7I
SAMI-7I~TYPE (600V MIDGET)
Datasheet - FNQ-30
Feature → Dead-front design → Reduces risk of arc flash exposure and accidental contact during maintenance, supporting safer panel operation in busy industrial environments. Application: Electrical protection enclosures in motor control centers and distribution panels. Feature → Wide electrical rating → 0-30 A with a 600 Vac/dc rating provides broad compatibility across Eaton Bussmann fuse blocks, lowering part variety and inventory costs. Application: Control panels with Midget and Class CC fuses. Feature → RoHS compliant materials → Ensures regulatory compliance and supports green manufacturing initiatives, reducing downstream compliance risk. Application: Industries with stringent environmental standards, including automotive and process automation. Feature → Compact form factor → Dimensions of 4.88 in × 1.58 in × 1.15 in and 0.05 lb weight enable easy installation in tight panel spaces, accelerating build times. Application: Retrofit projects and new panel builds. Feature → Fuse indicator option → With Indicator variant supports quick fault diagnosis and reduced downtime during maintenance. Application: Industrial control panels requiring status visibility. Feature → Compatibility with Midget and Class CC fuses → Simplifies spares planning and stocking, ensuring quick replacement in critical protection blocks. Application: Eaton Bussmann series fuse assemblies in legacy and new equipment.
Get a Quick Quote for a Eaton SAMI-7I
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SAMI-7I?
Enquire Now
FAQs
The SAMI-7I is designed to work with Eaton Bussmann series fuses, specifically Midget and Class CC type fuses, within electrical protection and control panels. It supports a 0-30 A amperage range and a 600 Vac/dc rating, making it suitable for a wide range of panelboard and motor control applications while keeping the fuse area safe and accessible for maintenance.
Install the SAMI-7I by positioning it over the fuse block with the dead-front facing outward to prevent contact with live components. Ensure the cover is compatible with Midget and Class CC fuse carriers, then secure with the existing mounting provisions. Verify the 0-30 A rating and 600 Vac/dc limit are not exceeded during commissioning to maintain safety and conformity.
The provided data confirms RoHS compliance for the SAMI-7I. While explicit SIL, CE, or IP certifications are not listed, the product is designed for Class CC fuse protection and 600 V ratings, aligning with many standard industrial controls requirements. Always validate site-specific regulatory requirements and supplier certifications during procurement.
The SAMI-7I fuse block cover has a length/depth of 4.88 inches, height of 1.58 inches, and width of 1.15 inches, with a product weight of 0.05 pounds. These compact dimensions support installation in tight panel spaces and facilitate retrofits in existing electrical enclosures without extensive rework.
Typical applications include electrical protection enclosures in control panels, motor control centers, and distribution panels that require Class CC fuse protection. It is compatible with Midget and Class CC fuses, enabling safe maintenance, straightforward replacement, and reliable protection in industrial automation systems.
