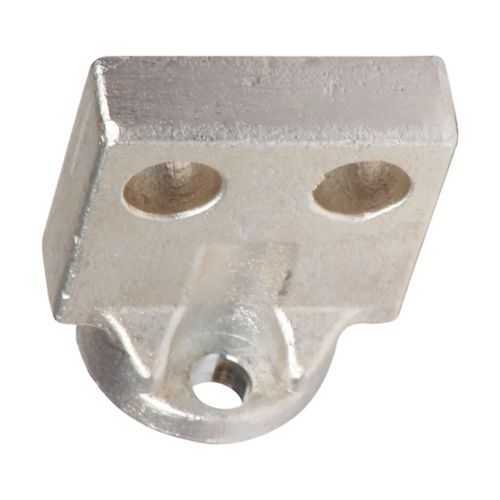

Eaton SBADPI316 NRX Adapter Kit - UL 489 IEC Rated
Part Number: SBADPI316
Quick Summary
Eaton SBADPI316 NRX Adapter Kit is a rear-connect adapter that simplifies NF frame panel mounting for high-current distribution. This solution helps engineers overcome space constraints and field-rework by delivering plug-and-play compatibility and reliable connections. Key certifications such as UL 489 and IEC rated support compliance in industrial protection schemes across NF frame installations. With its 1600 A rating, universal interrupt and a 4-per-box packaging, it integrates smoothly with existing Eaton Power Defense ICCB systems. Durable hardware and a one-year warranty reduce risk and total cost of ownership over project lifecycles.
Product Information
Extended Description
SBADPI316 Eaton: Eaton Power Defense ICCB adapter kit, NRX Rear Connect Adapter Kit, Short, Universal interrupt, Three-pole, Power Defense ICCB, NF Frame, 4 per box, Up to 1600A
Product Name
Eaton Series NRX adapter kit
Catalog Number
SBADPI316
UPC
786685954912
Product Length/Depth
3.25 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Warranty
One year factory warranty issued from date of shipment from repair center
Certifications
UL 489 IEC Rated
Catalog Notes
Hardware included
Type
NRX Rear Connect Adapter Kit
Special features
Short
Frame
NF
Rated uninterrupted current (Iu)
1600 A
Accessories
Adapter kit
Interrupt rating
Universal
Series
Series NRX
Number of poles
Three-pole
Quantity
30
Feature: NRX Rear Connect Adapter Kit for NF frame systems. Business Impact: Enables streamlined assembly and reduces field wiring complexity, cutting installation time and labor costs. Application: Ideal for high-current NF frame panel upgrades where space is constrained and reliability is critical. Feature: Three-pole configuration with universal interrupt. Business Impact: Provides flexible protection across three phases while simplifying maintenance and parts stocking. Application: Suitable for three-phase power distribution in industrial control panels and protective relays. Feature: Rated uninterrupted current (Iu) up to 1600 A. Business Impact: Supports heavy-load applications with stable performance and reduced risk of overheating, improving system uptime. Application: Power Defense ICCB integrations and high-current NF frame installations. Feature: Hardware included (Catalog Notes: Hardware included). Business Impact: Eliminates separate procurement steps and ensures correct fitting, accelerating project timelines. Application: Ready-to-install adapter kit for rapid deployment in new builds or upgrades. Feature: UL 489 and IEC rated Certifications. Business Impact: Ensures regulatory compliance and safety of protection circuits, reducing certification risk and audit findings. Application: Essential for industrial protection and circuit control environments requiring validated components. Feature: Pack quantity 4 per box. Business Impact: Improves logistics efficiency and stocking strategy, lowering warehousing costs. Application: Project where standardized batch ordering supports just-in-time manufacturing and maintenance programs.
Get a Quick Quote for a Eaton SBADPI316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SBADPI316?
Enquire Now
FAQs
SBADPI316 is designed specifically for NF frame installations and serves as the NRX Rear Connect Adapter Kit. It supports three-pole, universal-interrupt configurations and is compatible with Eaton Power Defense ICCB systems, enabling straightforward retrofits and new builds with existing NF frame components.
The SBADPI316 offers a three-pole configuration with an uninterrupted current rating up to 1600 A, and a universal interrupt rating. It is certified UL 489 and IEC rated, ensuring compliance for industrial protection and circuit control panels.
This adapter kit is ideal for high-current NF frame power distribution within industrial protection schemes. It supports up to 1600 A continuous load, integrates with Power Defense ICCB assemblies, and is suited for retrofit or new-panel installations where reliable rear-connect interfaces are required.
Yes. The SBADPI316 is UL 489 and IEC rated, providing validated safety and performance for protection and control circuits. These certifications help satisfy regulatory and customer compliance expectations in industrial environments.
The kit ships with hardware included, reducing procurement steps and field fabrication. Its NRX rear-connect design minimizes wiring, speeds up installation, and supports long-term reliability, contributing to lower maintenance costs and faster project ROI in high-current NF frame applications.
