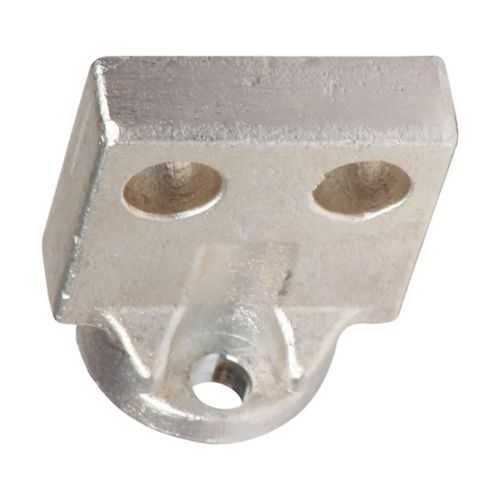

Eaton SBADPI416 NRX Rear Connect Adapter Kit - IEC UL 489
Part Number: SBADPI416
Quick Summary
Eaton SBADPI416 NRX Rear Connect Adapter Kit enables rear-connect compatibility for NF-frame power distribution gear. Engineers often grapple with bulky adapters and misalignment when upgrading NRX rear-connect configurations. This kit is IEC-rated and UL 489 certified, supporting safe, compliant installations across industrial panels. Designed for retrofit projects and new builds, it reduces installation time and field wiring errors. As part of the NRX Series, its four-pole NF-frame design enables scalable protection and straightforward maintenance for high-current systems. With hardware included and a compact footprint, it simplifies procurement and on-site reliability. This combination supports faster commissioning and consistent performance under peak loads.
Product Information
Extended Description
SBADPI416 Eaton: Eaton Power Defense ICCB adapter kit, NRX Rear Connect Adapter Kit, Short, Universal interrupt, Four-pole, Power Defense ICCB, NF Frame, 4 per box, Up to 1600A
Product Name
Eaton Series NRX adapter kit
Catalog Number
SBADPI416
UPC
786685954929
Product Length/Depth
3.25 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Warranty
One year factory warranty issued from date of shipment from repair center
Certifications
IEC Rated UL 489
Catalog Notes
Hardware included
Type
NRX Rear Connect Adapter Kit
Special features
Short
Frame
NF
Rated uninterrupted current (Iu)
1600 A
Accessories
Adapter kit
Interrupt rating
Universal
Series
Series NRX
Number of poles
Four-pole
Quantity
32
Feature NRX Rear Connect Adapter Kit enables rear-side connections for NRX four-pole NF-frame ICCB assemblies. Business Impact Reduces wiring complexity, minimizes mechanical stress on lugs, and speeds up installation. Application Ideal for Power Defense ICCB setups in control panels and switchgear. Feature Four-pole design supports high-current distribution up to 1600 A Iu. Business Impact Ensures robust protection with room to scale, improving system longevity and outage resilience. Application Suitable for NF-frame configurations in industrial switchgear and distribution panels. Feature Universal interrupt rating broadens compatibility with protective devices. Business Impact Simplifies retrofits and stock management by using a common adapter across multiple protection schemes. Application Retrofit projects and new builds in heavy-current environments. Feature Hardware included and box quantity of 32. Business Impact Reduces sourcing time and mismatch risks, enabling factory-ready deployment. Application Streamlines procurement for large projects and multi-site rollouts. Feature Compact dimensions—3.25 in depth, 6 in width, 8 in height—and 5.5 lb weight. Business Impact Fits within tight cabinet footprints while minimizing added weight. Application Ideal for space-constrained panels in manufacturing and data center environments.
Get a Quick Quote for a Eaton SBADPI416
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SBADPI416?
Enquire Now
FAQs
SBADPI416 is designed for Eaton NRX rear-connect configurations on NF-frame Power Defense ICCB assemblies. It enables rear-side connections in high-current switchgear and is compatible with four-pole NRX protection schemes. The adapter kit is intended for use in both retrofit and new-install scenarios, streamlining wiring and reducing panel depth where space is constrained.
SBADPI416 supports up to 1600 A Iu, with a universal interrupt rating to accommodate a wide range of protective devices. It carries IEC-rated and UL 489 certifications, ensuring compliance with international standards for industrial control equipment and safety in NEC/IEC installations.
The kit provides rear-connect capability, reducing front-panel wiring complexity and mechanical stress on lugs. Its four-pole NF-frame design simplifies wiring topology, minimizes field errors, and accelerates commissioning in both retrofit projects and new builds, delivering faster time-to-operational status and improved maintenance access.
Yes. SBADPI416 is specifically designed for NF-frame Power Defense ICCB assemblies in NRX configurations. Its rugged four-pole rear-connect design, combined with hardware included in the package, supports reliable retrofits and includes the necessary mounting hardware to ensure a proper, code-compliant installation.
The adapter kit carries a one-year factory warranty from the date of shipment, reflecting Eaton’s commitment to reliability. Routine maintenance involves inspection of rear-connect terminals and securing hardware; the included hardware and standardized NRX components help minimize downtime and simplify spare-parts planning for ongoing protection schemes.
