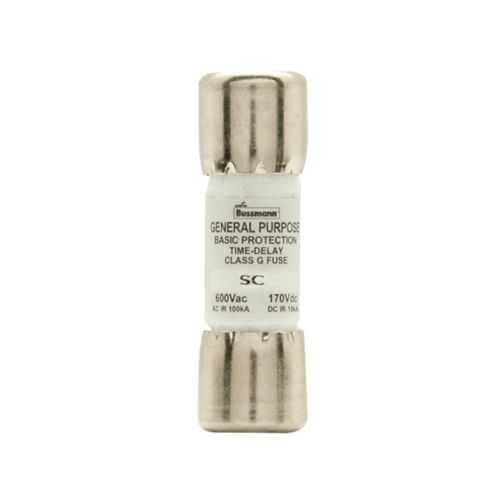

Eaton SC-1-1/2 Fuse - Class G, 100 kA at 600 Vac
Part Number: SC-1-1/2
Quick Summary
Eaton SC-1-1/2 fuse provides fast-acting overcurrent protection for industrial control panels. In many applications, inrush and transient faults can cause nuisance trips or energy spikes that shorten equipment life. CE marking and RoHS compliance ensure regulatory alignment, while the Class G, current-limiting design delivers predictable fault response. This combination supports safer installations, easier procurement, and reliable protection across industrial electrical protection and circuit control environments.
Product Information
Extended Description
SC-1-1/2 Eaton: Eaton Bussmann Series Class G fuse, SC, fast-acting, current limiting fuse, 1.5 A, rejection style fuse, interrupting rating of 100 kA at 600 Vac and 10 kA at 170 Vdc
Product Name
Eaton Bussmann series SC fuse
Catalog Number
SC-1-1/2
UPC
051712250047
EAN
5027590228008
Product Length/Depth
0.41 in
Product Height
1.31 in
Product Width
0.41 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1.5 A
Interrupt rating
10 kAIC at 170 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 170 Vdc
Packaging type
Standard
Class
Class G
Fuse indicator
Non-indicating
Special features
Rejection style
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Rejecting Fuses data sheet no. 1024
Feature: Class G fast-acting, current-limiting design. Benefit: Protects sensitive circuits quickly while minimizing arc energy and downstream damage, reducing downtime in motor drives and control circuits. Application: Industrial control panels and distribution blocks where fast fault interruption is critical. Feature: Rejection style construction. Benefit: Prevents incorrect installation, improving panel reliability and reducing commissioning errors in high-density enclosures. Application: Panel boards and control cabinets in automated manufacturing lines. Feature: High interrupt ratings—100 kAIC at 600 Vac; 10 kAIC at 170 Vdc. Benefit: Robust protection for high-energy faults and mixed AC/DC systems, enabling safer, more durable power distribution. Application: Motor starters, feeders, and machinery with mixed energy profiles. Feature: Compact footprint (0.41 in x 0.41 in x 1.31 in) with standard packaging. Benefit: Easier integration into crowded panels and simplifies replacement without rework. Application: Space-constrained electrical enclosures and field-serviceable assemblies. Feature: RoHS compliant and CE marked. Benefit: Regulatory assurance for European and environmentally regulated facilities, supporting compliant supply chains and audits. Application: Global manufacturing environments seeking standard-spec protection devices.
Get a Quick Quote for a Eaton SC-1-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SC-1-1/2?
Enquire Now
FAQs
Yes. The SC-1-1/2 is rated for 600 Vac and 170 Vdc, with a 1.5 A amperage rating and current-limiting performance that helps manage fault energy across AC and DC portions of industrial systems.
The Class G design responds rapidly to overcurrent, interrupting fault current with high energy limitation. This minimizes energy transfer to downstream components, reducing heat, wear, and the risk of collateral damage in control cabinets.
Ideal for industrial control panels, motor starters, and power distribution blocks where compact protection is needed with reliable interruption ratings and straightforward replacement in standard Bussmann catalogs.
The SC-1-1/2 is CE marked and RoHS compliant, meeting European regulatory and environmental standards for modern electrical installations and regulated facilities.
The fuse features a compact footprint (0.41 in x 0.41 in x 1.31 in) with a rejection-style design for safe insertion, enabling easy integration into space-constrained panels and standard Bussmann-compatible assemblies.
