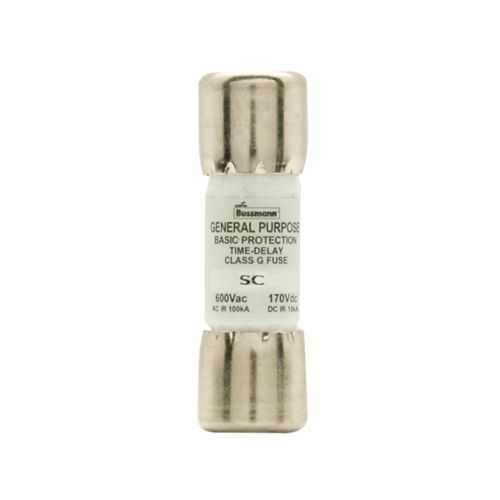

Eaton SC-5 Class G Fuse - 100 kAIC at 600 Vac
Part Number: SC-5
Quick Summary
The Eaton SC-5 Class G fuse provides reliable overcurrent protection for 5 A circuits in electrical protection & circuit control applications. It addresses nuisance trips and unplanned outages common in shared-power panels by offering precise fast-acting protection. With CE Marked and RoHS Compliant certifications, it meets modern compliance expectations while minimizing waste and downtime. This solution supports engineers seeking robust protection with straightforward installation, compatible with ferrule-end wiring for streamlined panel assembly and maintenance.
Product Information
Extended Description
SC-5 Eaton: Eaton Bussmann Series Class G fuse, SC, fast-acting, current limiting fuse, 5 A, rejection style fuse, interrupting rating of 100 kA at 600 Vac and 10 kA at 170 Vdc
Product Name
Eaton Bussmann series SC fuse
Catalog Number
SC-5
UPC
051712250054
Product Length/Depth
1.31 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
5 A
Interrupt rating
10 kAIC at 170 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 170 Vdc
Packaging type
Standard
Class
Class G
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Rejection style
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Rejecting Fuses data sheet no. 1024
Feature → Business Impact → Application: Fast-acting Class G design delivers rapid fault interruption, reducing fault energy and minimizing downstream damage in sensitive control circuits, boosting overall equipment reliability for PLCs and relays. Application: DC and AC protection in industrial controls, including machine automation and power distribution where minimizing disruption is critical. Feature → Business Impact → Application: 5 A rating aligns with typical control loops, enabling selective coordination with upstream protection to lower nuisance trips and extend component life. Application: Control panels and motor starter circuits requiring precise protection without overprotection. Feature → Business Impact → Application: 100 kAIC at 600 Vac and 10 kAIC at 170 Vdc provide high fault interruption capability, supporting compliance with demanding industrial standards and reducing replacement costs after faults. Application: Heavy-duty industrial environments with high transient currents. Feature → Business Impact → Application: Rejection style and non-indicating indicator simplify wiring verification and reduce accidental substitutions, improving inventory control and field reliability. Application: Field service and maintenance programs where reliability and tamper resistance matter. Feature → Business Impact → Application: Ferrule end x ferrule end connection and compact 1.31 in length enable easy insertion into crowded panels, supporting quick replacements and standardized assembly. Application: Retrofit projects and new builds with tight enclosure clearances.
Get a Quick Quote for a Eaton SC-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SC-5?
Enquire Now
FAQs
The SC-5 uses ferrule end x ferrule end terminals and a compact 1.31 in length, designed for straightforward insertion into standard fuse holders and panel rails. Use ferrule crimp connections that match the ferrule ends, verify correct amperage and voltage ratings, and ensure the surrounding wiring clearance supports the 0.41 in x 0.41 in footprint.
Key specs include a 5 A amperage rating, Class G fast-acting operation, and current limiting to reduce fault energy. It provides 100 kAIC interrupt rating at 600 Vac and 10 kAIC at 170 Vdc, with voltage ratings of 600 Vac and 170 Vdc, respectively. The device is non-indicating and RoHS/CE compliant.
SC-5 supports both AC and DC circuits with 600 Vac and 170 Vdc ratings, making it suitable for control panels, MCCs, and DC-powered automation loops. Its high interrupt ratings help protect downstream devices from faults, while its current-limiting capability minimizes arc duration and equipment damage during faults.
The SC-5 is CE marked and RoHS compliant, ensuring conformity with European electrical safety and environmental standards. These certifications support regulatory approvals for commercial and industrial deployments, simplify supplier qualification, and reduce risk during audits and product lifecycle management.
Using SC-5 can lower maintenance costs by reducing nuisance trips and downstream damage due to its current-limiting, fast-acting performance and high interrupt ratings. The rejection-style design also reduces incorrect substitutions, simplifying spare-part management and improving field reliability, which translates to improved uptime and lower total cost of ownership.
