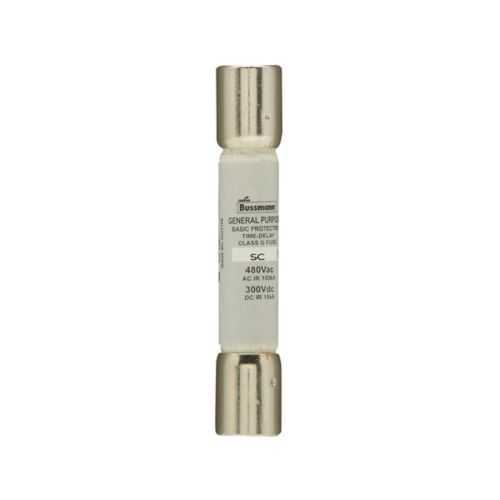

Eaton SC-60 Fuse - Class G Rejection Style Current-Limiting
Part Number: SC-60
Quick Summary
The Eaton SC-60 fuse provides fast-acting, current-limiting protection for industrial control panels and motor circuits. When short circuits occur, nuisance tripping and costly downtime are common pain points that this device helps to prevent. CE marked and RoHS compliant, with a Class G rejection-style design and high interrupt ratings, the SC-60 supports global compliance and selective protection. For panel builders and OEMs, the compact 2.25 in length, ferrule-end connections, and 60 A rating translate into easier installation, predictable coordination, and reduced spare parts requirements. This makes it a practical choice for standard electrical protection in automation and machine building, aligning with ongoing maintenance and compliance programs.
Product Information
Extended Description
SC-60 Eaton: Eaton Bussmann Series Class G fuse, SC, fast-acting, current limiting fuse, 60 A, rejection style fuse, interrupting rating of 100 kA at 480 Vac and 10 kA at 300 Vdc
Product Name
Eaton Bussmann series SC fuse
Catalog Number
SC-60
UPC
051712250603
Product Length/Depth
2.25 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.35 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
60 A
Interrupt rating
10 kAIC at 300 Vdc 100 kAIC at 480 Vac
Response time
12 sec at 200%
Voltage rating
480 Vac, 300 Vdc
Packaging type
Standard
Class
Class G
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Rejection style
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Rejecting Fuses data sheet no. 1024
Feature: Fast-acting, current-limiting Class G fuse. Business Impact: Minimizes arc energy and protects sensitive components, leading to reduced downtime and longer equipment life. Application: Ideal for control panels and motor starters in automation environments, delivering reliable protection without nuisance trips. Feature: High interrupt rating of up to 100 kAIC at 480 Vac and 10 kAIC at 300 Vdc. Business Impact: Enables safe interruption in demanding AC and DC systems, supporting coordination in multi-fuse assemblies. Application: Large industrial drives and power distribution panels demanding robust fault-handling. Feature: Rejection style design. Business Impact: Improves selective protection, prevents nuisance tripping across redundant circuits, and simplifies fuse coordination. Application: Enclosed panels with multiple feeders where selective tripping is critical for uptime. Feature: Ferrule end x ferrule end connection and compact form. Business Impact: Eases installation and replacement, reduces wiring clearance concerns, and supports quick maintenance cycles. Application: OEM panel assemblies and retrofit projects where space is limited. Feature: Compliance and physical specs. Business Impact: CE Marked and RoHS compliant ensures global market access and reduces compliance risk; compact dimensions (2.25 in length, 0.41 in width) fit crowded enclosures. Application: Standard electrical protection in automation equipment and machine builds. Feature: 60 A rating with standard packaging. Business Impact: Aligns with common branch-circuit protection requirements, enabling predictable protection levels while controlling spare parts inventory. Application: Industrial control circuits, motor protection, and equipment feeders in automation deployments.
Get a Quick Quote for a Eaton SC-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SC-60?
Enquire Now
FAQs
The SC-60 uses ferrule-end connections, offering straightforward insertion into standard ferrule terminals. Ensure compatible panel terminals are rated for 60 A and 480 Vac, and maintain proper clearances to accommodate the 2.25 in length and 0.41 in width. Use a non-indicating fuse indicator if you require external status feedback, and follow manufacturer torque specs for secure termination.
Key ratings include 60 A amperage, 480 Vac voltage rating, and 100 kAIC interrupt capability at 480 Vac along with 10 kAIC at 300 Vdc. The 12 second response time at 200% helps limit arc energy, reducing damage during faults. These specs enable robust protection in industrial control panels and motor circuits operating at standard automation voltages.
Yes, the SC-60 is CE marked and RoHS compliant, supporting global compliance. Its current-limiting, fast-acting design minimizes arc energy in fault conditions, and its Class G rejection-style configuration supports selective coordination in multi-fuse panels. However, check enclosure IP ratings and ambient temperature requirements in your specific application to ensure full suitability.
The SC-60 carries CE marking and RoHS compliance, indicating conformity with European safety, health, and environmental requirements. These certifications help simplify qualification for EU markets and industrial deployments worldwide, reducing risk during audits and helping meet supplier and customer compliance expectations in regulated industries.
The SC-60’s fast-acting protection minimizes downtime caused by nuisance trips and short circuits, while its high interrupt ratings support safe maintenance in fault conditions. The rejection-style design reduces unnecessary outages by improving selective coordination, potentially lowering spare-part usage and maintenance labor costs over the equipment’s life cycle.
