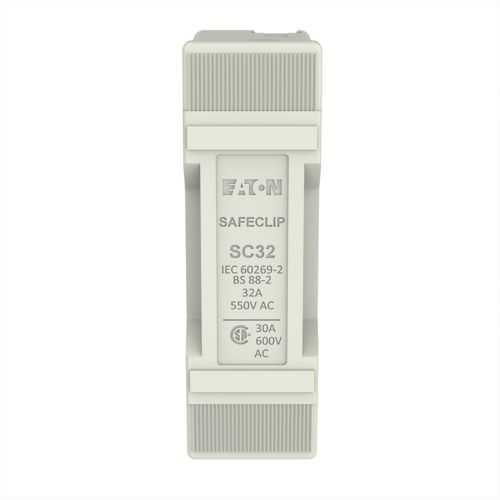

Eaton SC32PH/DWH Fuse Holder - BS88 NSD Safeclip
Part Number: SC32PH/DWH
Quick Summary
SC32PH/DWH fuse holder from Eaton provides reliable low-voltage protection for British-standard control panels and industrial equipment. This compact unit addresses common installation challenges, offering front/back stud connections for fast wiring and straightforward maintenance in congested panels. It supports BS88/F1 British standard fuses and NSD fuse types, with CE compliance to meet European safety requirements, giving buyers confidence in regulatory performance. The Safeclip design simplifies mounting and reduces risk during fuse replacement, while its single-pole, 32 A rating covers a broad range of machine protection scenarios. By aligning with standard components, it lowers spare-parts inventory and speeds commissioning, delivering measurable uptime gains for electrical protection architectures.
Product Information
Extended Description
SC32PH/DWH Eaton: Fuse accessory, Fuse-holder, low voltage, 32 A, AC 550 V, BS88/F1, 1P, BS, front/back stud connected, white, fuse-link NSD, BS88-2, Optional accessories copper links, padlockable inserts and adaptor carriers
Product Name
Eaton Bussmann series low voltage british standard fuse holder
Catalog Number
SC32PH/DWH
UPC
051712419529
EAN
5027590509336
Product Length/Depth
81 mm
Product Height
25 mm
Product Width
60 mm
Product Weight
130 g
Warranty
Not Applicable
Compliances
CE
Certifications
Not Applicable
Amperage Rating
32 A
Voltage rating at AC
550 V a.c.
Model
Safeclip
Connection
Front/back stud connected
Number of Poles
Single-pole
Fuse type
NSD
eaton-bussmannseries-bs88-fuses-industrial-motor-use-product-aid-pa134006-en-gb.pdf
CA134002EN
CA134002EN
CA134002EN
DA-DC-00004825.pdf
DA-DC-00004825.pdf
eaton-low-voltage-british-standard-fuse-holder-eplan-sc32ph-dwh.edz
Eaton's Bussmann series Safeclip front/back stud connected
10024 Red spot fuse holders
10024 Red spot fuse holders
Feature: 32 A, 550 V AC rating. Business Impact: Provides robust protection for mid-range industrial loads, reducing nuisance trips and enabling wider use in UK-based machinery. Application: Suitable for control panels and machine protection circuits where compact, standards-compliant protection is required. Feature: BS88/F1 compatibility and NSD fuse type. Business Impact: Regulatory compliance is simplified, enabling safer procurement and easier audits. Application: UK and European installations that specify British standard fuse holders with NSD fuses. Feature: Safeclip with front/back stud connections. Business Impact: Speeds installation, simplifies maintenance, and minimizes wiring errors in tight panel layouts. Application: High-density control cabinets where wiring efficiency matters. Feature: 1P single-pole design with compact dimensions. Business Impact: Space-saving footprint reduces panel depth and material costs while maintaining accessibility. Application: Small to mid-size machines and automation modules. Feature: Lightweight 130 g with 81 mm length, 60 mm width, 25 mm height. Business Impact: Easier handling during installation and on-site servicing reduces labor time. Application: Portable maintenance scenarios and modular machine builds. Feature: CE compliance and compatibility with BS88 NSD fuse families. Business Impact: Supports regulatory compliance while enabling standardized spares and rapid replacement. Application: European market and multi-vendor assemblies where standardization is key.
