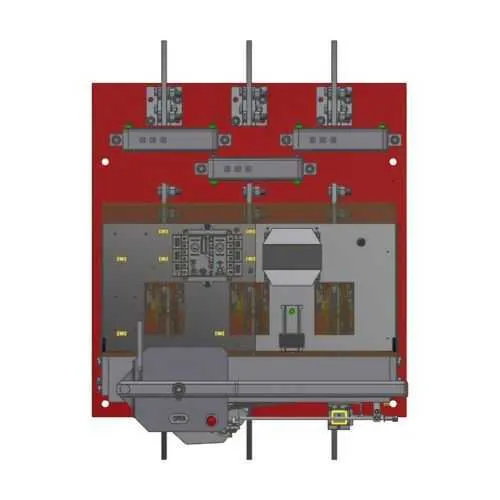

Eaton SCB1234B120208C Switch UL Listed, 1200A 208V 3-Phase
Part Number: SCB1234B120208C
Quick Summary
The Eaton SCB1234B120208C switch delivers bolted pressure contact control for high-current electrical panels. Engineers often struggle to find a robust, UL-listed solution that fits a bottom-feed, three-pole layout without complex wiring. This model carries UL Listed safety certification and is built for reliable duty in demanding environments. By integrating ArcRed/GF Relay-CT and sturdy bolted contact design, it supports OEM and retrofit programs, reducing downtime and simplifying installation. Its 1200A rating at 208V and bottom-feed orientation suit heavy-power control in switchgear, MCCs and OEM enclosures. The design emphasizes a compact footprint and straightforward terminations to reduce installation time and maintenance costs.
Product Information
Extended Description
SCB1234B120208C Eaton: Pringle(Special)BPS, 1200A, Bottom, 208V 3P w/N-CT, ArcRed/GF Relay-CT
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
SCB1234B120208C
UPC
786689773793
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
180 lb
Certifications
UL Listed
Feed type
Bottom
Fuse configuration
Bottom feed
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
1200A
Voltage rating
208 V
Bolted pressure contact construction delivers high-current reliability with minimal contact wear, reducing maintenance cycles and unexpected failures in demanding environments. This leads to longer service life and fewer field interventions in critical control panels. 1200A at 208V capacity supports heavy-power loads within switchgear and MCCs, enabling you to consolidate circuits and simplify inventory while improving overall energy management and safety. The bottom-feed configuration streamlines wiring termination, lowers panel depth requirements, and enhances wiring organization, which translates to faster commissioning and reduced risk during modernization projects. Three-pole, three-wire architecture ensures balanced phase control and reliable interlocking across the control system, reducing miswiring and enabling safer, more predictable operation. UL Listed certification provides a clear compliance signal for electrical safety, easing procurement audits and installation approvals. ArcRed/GF Relay-CT integration helps manage arc energy, improving protection in high-energy switching events. The heavy 180 lb form factor and 16 × 28 × 24 in footprint reflect a robust build intended for durable, long-life installations in harsh industrial settings.
Get a Quick Quote for a Eaton SCB1234B120208C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SCB1234B120208C?
Enquire Now
FAQs
Plan for the 16 in depth by 24 in width and 28 in height footprint, with a 180 lb weight to support secure mounting. Use bottom-feed wiring terminations to align with your panel layout, ensuring UL Listed compliance. Verify clearances for safe access to the three-pole, three-wire connections and provide proper bus bar and terminal torque per Eaton guidelines.
The unit is rated for 1200A at 208V, configured as a three-pole, three-wire switch with bottom feed and bottom fuse configuration. It carries UL Listed certification and uses bolted pressure contact technology for reliable high-current switching in industrial panels.
Yes. The 1200A at 208V rating, three-pole, bottom-feed design, and UL Listing make it appropriate for MCCs and heavy-control panels. Its robust construction supports consistent actuation under load and simplifies integration with MCC bus systems and OEM enclosures, reducing potential bottlenecks during panel upgrades.
The SCB1234B120208C is UL Listed, which provides a formal safety certification for electrical components. This helps streamline procurement and installation approvals in many regions and aligns with standard industry safety practices. Always verify any region-specific requirements beyond UL Listing for your application.
Adopting this switch can lower downtime due to its high-current reliability and reduced maintenance frequency. The bottom-feed, simplified wiring design accelerates installation and commissioning, while UL Listing supports faster regulatory clearance. Over time, these factors translate to reduced labor costs, improved panel uptime, and greater overall equipment effectiveness (OEE).
