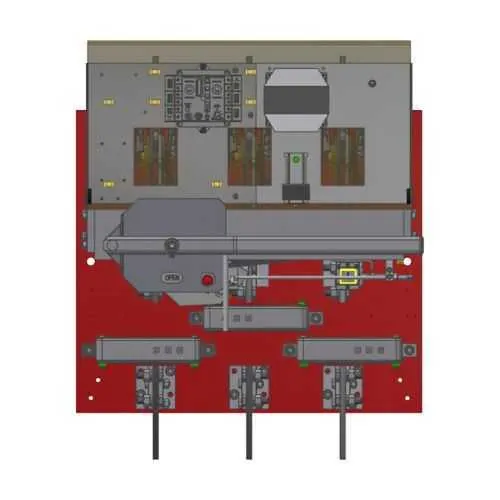

Eaton SCB1234T120480C Bolted Pressure Switch - UL Listed
Part Number: SCB1234T120480C
Quick Summary
The Eaton SCB1234T120480C bolted pressure switch provides reliable protection for high-current, three-phase electrical distributions in industrial facilities. When mis-timed trips or worn contacts occur under heavy loads, production downtime and maintenance costs rise dramatically. UL Listed certification underpins safety and reliability in switchgear assemblies, while its 1200A at 480V rating aligns with demanding power distribution needs. Designed for top-feed installations with three-pole, three-wire configurations, it integrates smoothly with standard Eaton and UL-listed panel components, supporting scalable plant expansions. In practice, engineers gain predictable operation and lower lifecycle costs, with safer, more efficient control of critical processes and easier integration into existing electrical infrastructures.
Product Information
Extended Description
SCB1234T120480C Eaton: Pringle(Special)BPS, 1200A, Top, 480V 3P w/N-CT, ArcRed/GF Relay-CT
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
SCB1234T120480C
UPC
786689773380
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
180 lb
Certifications
UL Listed
Feed type
Top
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
1200A
Voltage rating
480 V
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Feature: 1200A amperage rating. Business Impact: Enables reliable switching for high-current equipment and large motor loads, reducing fault-driven outages and enabling tighter protection curves in the feeder design. Application: Large manufacturing lines and power distribution panels requiring robust current handling. Long-tail keywords: high-current switchgear, motor control center feeds. Feature: 480V voltage rating. Business Impact: Aligns with common industrial distribution voltages, simplifying panel design and reducing step-down requirements. Application: Facility-wide switchgear and three-phase feeders. Long-tail keywords: three-phase power distribution, industrial control systems. Feature: Top-feed, three-pole, three-wire configuration. Business Impact: Improves installation ergonomics and connection security, delivering consistent arc-quenching performance and easier field wiring. Application: Control panels and switchgear assemblies in mid-to-large scale plants. Long-tail keywords: top-feed switch, three-pole protection. Feature: UL Listed certification. Business Impact: Provides a recognized safety baseline for compliance and procurement, streamlining audits and regulator reviews. Application: Any UL-listed panel or MCC installation requiring verified safety compliance. Long-tail keywords: UL Listed protection, safety-certified switch. Feature: Physical dimensions and weight (16 in L, 28 in H, 24 in W; 180 lb). Business Impact: Facilitates accurate space planning, mounting, and crane/rigging considerations during installation. Application: Retrofit projects and new-build switchgear with strict footprint requirements. Long-tail keywords: installation planning, panel fitment. Feature: N‑CT/ArcRed/GF Relay-CT compatibility. Business Impact: Enhances arc-flash mitigation and control reliability within Eaton ecosystem, reducing downtime and improving operator safety. Application: Arc-aware switchgear and protective-relay integrations in critical facilities. Long-tail keywords: arc mitigation devices, relay-CT compatibility.
Get a Quick Quote for a Eaton SCB1234T120480C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SCB1234T120480C?
Enquire Now
FAQs
Key installation considerations include top-feed orientation for secure wiring, accommodating the 16 x 24 x 28 inch footprint, and planning for a 180 lb weight during mounting. Use UL-listed panels and compatible Nexus-CT or relay-CT accessories to ensure safe isolation and reliable tripping under full-load conditions.
The switch is rated for 1200A at 480V, three-pole with three-wire configuration. This enables handling of high-current feeders and large motors. Performance hinges on proper panel integration, correct bus connections, and adherence to UL-listed component interfaces to maintain protection coordination and reliable trips.
Yes. With its high amperage rating and three-pole topology, the SCB1234T120480C is well-suited for switchgear assemblies and motor control centers that require robust isolation, dependable switching, and straightforward wiring in industrial facilities.
The unit carries UL Listed certification, which supports safety compliance and procurement approvals in regulated environments. Always verify that all accompanying components (cables, relays, and panels) are UL-listed or certified to maintain overall panel accreditation and safe operation.
The bolted contact design and high-current rating reduce nuisance trips and wear-related downtime. Coupled with UL-listed safety, predictable lifecycle costs and lower maintenance intervals can be achieved, leading to improved uptime, safer operations, and better total cost of ownership in demanding manufacturing settings.
