Eaton SCB2534B120480KC7 Pringle bolted switch - UL Listed
Part Number: SCB2534B120480KC7
Quick Summary
Eaton SCB2534B120480KC7 is a bolted pressure contact switch used for high-capacity power distribution and protection. Plant engineers often contend with undesirable downtime and miswiring when upgrading protective switching devices in busy MCCs and control panels. This model carries UL Listed certification to support safety compliance, and its bottom-feed fuse configuration along with a three-pole design suit rugged industrial environments. With a 480 V rating and a 2500 A amperage, it integrates with relay-CT options like KIP and AER/GF, supporting 2NO/2NC configurations. Selecting this Eaton switch translates to reliable protection, easier installation, and reduced maintenance costs across manufacturing and process facilities.
Product Information
Extended Description

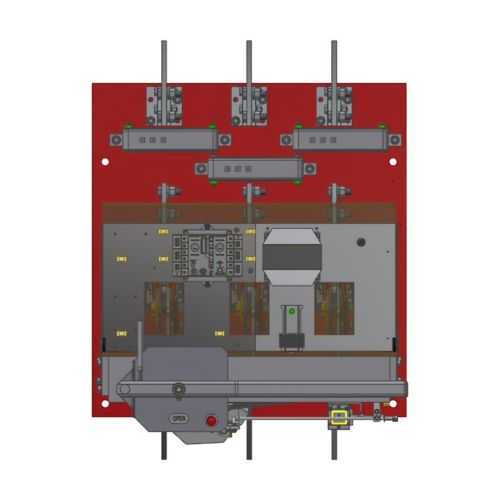

SCB2534B120480KC7 Eaton: Pringle(Special)BPS, 2500A, Bottom, 480V 3P w/N-CT, KIP, AER/GF Relay-CT, 2NO/2NC
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
SCB2534B120480KC7
UPC
786689773472
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
180 lb
Certifications
UL Listed
Feed type
Bottom
Fuse configuration
Bottom feed
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
2500A
Voltage rating
480 V
Feature 2500 A amperage at 480 V supports direct main power switching for heavy motors and feeders. Business impact: reduces the number of devices in a starter or MCC, cutting installation time and footprint. Application: ideal for large manufacturing lines and process equipment where reliability matters. Feature bottom feed and bottom fuse configuration simplify panel wiring and minimize front-access space. Business impact: improves field serviceability and reduces wiring errors during installation. Application: well-suited to compact control panels and retrofit projects in existing installations. Feature three-pole, three-wire configuration with 2NO/2NC contacts delivers flexible control options and robust interrupt paths. Business impact: enables both normally open and normally closed schemes without extra modules. Application: protective interlocking and coordination in high-current circuits. Feature UL Listed certification confirms safety compliance and supports regulatory audits. Business impact: lowers risk of nonconformance and accelerates panel approvals. Application: widely accepted in industrial facilities requiring certified power switching components. Feature compatibility with KIP, AER/GF Relay-CT options supports streamlined integration with existing protective relays. Business impact: simplifies control scheme upgrades and maintains consistent signaling. Application: ideal for new builds and panel modernization in manufacturing, metal processing, and water treatment. Feature substantial footprint including 16 in depth, 28 in height, and 24 in width, with a 180 lb weight. Business impact: provides robust mounting stability in harsh environments and reduces vibration-related wear. Application: suitable for front-panel installations in heavy-duty switchgear and industrial controls.
Get a Quick Quote for a Eaton SCB2534B120480KC7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SCB2534B120480KC7?
Enquire Now
FAQs
Plan for a bottom-feed wiring arrangement to align with the factory fuse configuration and three-pole design. Verify clearances for the 16 in depth and 28 in height footprint, use appropriate lifting equipment for the 180 lb unit, and ensure mounting surfaces meet vibration and ingress protection expectations. Consider coordinating with a protective relay like KIP or AER/GF Relay-CT for streamlined control signaling.
The SCB2534B120480KC7 is rated for 2500 A at 480 V. It uses a bottom feed fuse configuration with 2NO/2NC contacts across a three-pole, three-wire arrangement. This combination supports heavy motor starting and high-current protection while allowing flexible control logic in modern control panels.
Yes. With a 480 V rating and a three-pole, three-wire configuration, it is designed for main power distribution and protection in manufacturing and process facilities. The UL Listed certification reinforces compliance with safety standards, and its compatibility with relay-CT options helps integrate with existing protection schemes.
This model is UL Listed, which indicates adherence to recognized safety standards for electrical equipment in industrial environments. UL listing supports regulatory compliance, smoother panel approvals, and safer operation in critical power circuits. Always verify your regional requirements, but UL Listed components are widely accepted in industrial controls.
High-current, robust construction reduces the need for frequent replacement of starter components and simplifies protective scheme maintenance. The integration with KIP and AER/GF Relay-CT options enables coherent signaling with existing relays, cutting maintenance complexity. Expect lower downtime, faster fault isolation, and a longer service life in demanding facilities.
