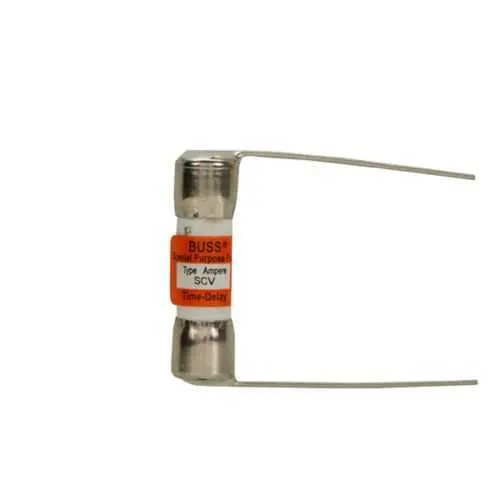

Eaton SCV20 Fuse - 20 A, 10 kAIC @ 170 Vdc, CE RoHS
Part Number: SCV20
Quick Summary
The Eaton SCV20 fuse provides reliable current-limiting protection for industrial control circuits. A common challenge is nuisance trips from brief surges that stop production and complicate maintenance. This device carries CE Marked and RoHS Compliant certifications, with interrupt ratings of 10 kAIC at 170 Vdc and 100 kAIC at 600 Vac, aligning with common industrial safety standards. Its standard 600 V / 170 Vdc ratings support diverse AC and DC applications, making it a versatile choice for panel builders and OEMs. By combining high reliability with fast response, the SCV20 helps reduce energy waste and downtime while simplifying compliance across multiple jurisdictions.
Product Information
Extended Description
SCV20 Eaton: Eaton Bussmann series SCV fuse, Current-limiting time-delay fuse, 20 A, Non-indicating, 10 kAIC at 170 Vdc, 100 kAIC at 600 Vac, Standard, 600 V, 170 Vdc
Product Name
Eaton Bussmann series SCV fuse
Catalog Number
SCV20
UPC
051712502337
Product Length/Depth
0.41 in
Product Height
1.41 in
Product Width
1.955 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
20 A
Interrupt rating
10 kAIC at 170 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 170 Vdc
Packaging type
Standard
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - SCV20
The SCV20 fuse is a 20 A current-limiting time-delay device designed to protect industrial control circuits in panel assemblies and machine safety systems. This feature delivers a lower risk of nuisance trips during startup surges, which translates to improved line uptime and reduced maintenance costs. The high interrupt ratings—10 kAIC at 170 Vdc and 100 kAIC at 600 Vac—mean robust fault clearance with limited arc energy, safeguarding downstream components and improving system reliability. Compatibility with the Bussmann series form factor enables quick replacement and consistent installation across existing control panels, minimizing downtime during maintenance windows. The non-indicating design keeps panel interiors uncluttered, while the CE Mark and RoHS compliance ensure regulatory peace of mind in global deployments. A standard packaging type supports straightforward stocking and predictable lead times, supporting efficient procurement for OEMs. This fuse also suits DC control circuits requiring reliable protection up to 170 Vdc and AC control circuits up to 600 Vac, helping customers meet safety and performance targets without over-specifying components.
Get a Quick Quote for a Eaton SCV20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SCV20?
Enquire Now
FAQs
SCV20 is a standard Bussmann series fuse with a compact footprint suitable for common fuse blocks in control panels. Its non-indicating design simplifies panel aesthetics, while the standard packaging and 0.41 in depth, 1.41 in height, and 1.955 in width support straightforward replacement and routing. When selecting mounting, ensure space for replacement and maintain proper clearance for heat dissipation in enclosed panels.
SCV20 is rated at 20 A with an interrupt rating of 10 kAIC at 170 Vdc and 100 kAIC at 600 Vac. It supports 600 Vac and 170 Vdc voltage ratings, making it suitable for both AC control circuits and DC control circuits in industrial environments. This combination provides robust fault protection while minimizing risk to downstream devices.
Yes. The SCV20 fuse is CE Marked and RoHS compliant, aligning with European safety and environmental standards. This reduces regulatory concerns for global deployments and supports green compliance initiatives in manufacturing facilities.
Typical applications include protection of industrial control panels, machine safety circuits, and panel-mounted protection in OEM equipment. Its 20 A rating and wide voltage compatibility make it suitable for both DC and AC control paths, while the high interrupt ratings protect sensitive components from fault energy during short circuits.
By delivering current-limiting protection with fast fault clearance, SCV20 reduces nuisance trips and arc energy, enhancing machine uptime and reducing unplanned downtime. Its compatibility with standard Bussmann series blocks lowers replacement time, and RoHS/CE compliance simplifies regulatory audits, contributing to lower total cost of ownership over the equipment life cycle.
