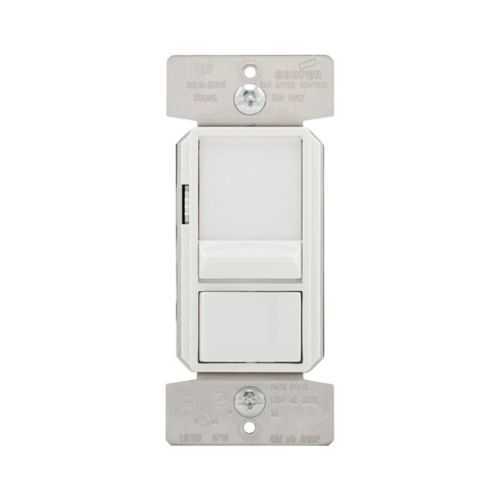

Eaton SFS5P-W Fan Speed Controller - cULus Listed
Part Number: SFS5P-W
Quick Summary
Eaton SFS5P-W fan speed controller is designed to regulate enclosure fan speed for electronics cooling. Installers often face neutral wiring constraints and retrofit challenges, and this unit eliminates the need for a neutral, simplifying upgrades. Key certifications include cULus Listed, ensuring safety compliance for North American panel builds. With 60 Hz operation at 120 V, it provides precise, repeatable speed control for reliable cooling. Flush mounting and back and side wiring streamline installation in tight panels and existing enclosures. Its white polycarbonate body is durable under typical industrial conditions, reducing replacement cycles. These features translate to faster installations, lower downtime, and predictable maintenance costs.
Product Information
Extended Description
SFS5P-W Eaton: Eaton fan speed controller, No neutral required, #14 -12 AWG, Flush, 120 Vac, Back and side, Maintained, White, 60 Hz, Fan, Single-pole, Three-way, Single-phase, Polycarbonate 663444
Product Name
Eaton fan speed controller
Catalog Number
SFS5P-W
UPC
032664663444
Product Length/Depth
2.02 in
Product Height
4.34 in
Product Width
2.1 in
Product Weight
0.24 lb
Certifications
cULus Listed
Frequency rating
60 Hz
Load type
Fan
Number Of Poles
Single-pole, Three-way
Number of ways
Three-way
Phase
Single-phase
Torque rating
14 lbf-inch
Voltage rating
120 V
Mounting method
Flush
Wiring method
Back and side
Color
White
Material
Polycarbonate
Connection type
Back Side
Feature: No neutral required simplifies wiring and reduces external components, cutting overall panel complexity. Business impact: lowers labor time, reduces BOM cost, and speeds project timelines for retrofit work. Application: ideal for enclosure cooling in electrical panels and automation racks, especially where neutral runs are limited. Feature: 120 V, 60 Hz single-phase operation with 14 lbf-in torque supports reliable, repeatable fan control. Business impact: ensures predictable motor response, accurate cooling, and tighter process control in critical panels. Application: suitable for standard control panels and equipment enclosures across manufacturing and data centers. Feature: Flush mounting with back and side wiring enables truly compact installations in small footprints. Business impact: maximizes available panel space, reduces wiring congestion, and speeds commissioning. Application: install in flush-mount panels and compact electrical cabinets where accessibility matters. Feature: White polycarbonate housing provides durable, flame-retardant protection in harsh industrial environments. Business impact: reduces wear, minimizes replacement cycles, and maintains appearance under demanding conditions. Application: ideal for control rooms, machinery cabinets, and factory floors that require robust visibility. Feature: Compatibility with 14-12 AWG conductors simplifies harnessing and safer terminations. Business impact: supports straightforward harnessing, lowers termination risk, and improves pull strength in dense looms. Application: ideal for new builds and retrofits in fan-driven cooling circuits across automation panels. Feature: cULus Listed certification affirms safety compliance and traceable manufacturing standards. Business impact: aids supplier audits, procurement qualifications, and regulatory approvals for North American installations. Application: suitable for electrical panels and industrial automation projects in manufacturing, water treatment, and logistics facilities.
Get a Quick Quote for a Eaton SFS5P-W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SFS5P-W?
Enquire Now
FAQs
The SFS5P-W uses a flush mounting method and accepts back and side wiring, simplifying installation in tight control panels. Verify enclosure clearance, attach the device to the mounting surface, and connect conductors per the wiring method. The unit supports #14 - 12 AWG conductors, reducing the need for additional adapters and splice points while ensuring secure terminations.
Key ratings include 120 V at 60 Hz with a torque rating of 14 lbf-in, designed for single-phase fan loads. This combination ensures consistent fan speed control and dependable operation across standard enclosure fans. The device is rated for back and side wiring, facilitating straightforward integration into existing control panels without neutral wiring in most applications.
Yes. The SFS5P-W is engineered for enclosure cooling in control panels, automation racks, and equipment housings typical in manufacturing and data centers. Its 120 V, 60 Hz single-phase design, along with no-neutral operation, makes it well-suited for common cooling fans while meeting industry safety standards (cULus Listed).
The SFS5P-W is cULus Listed, indicating compliance with applicable safety requirements for North American equipment. This certification supports regulatory audits and procurement decisions in regulated industries, ensuring safer, validated operation within electrical panels and automation systems.
Maintenance needs are minimal due to solid-state speed control and durable polycarbonate housing. The no-neutral design reduces wiring complexity, contributing to lower installation time and lifecycle costs. Energy savings come from precise fan speed control, enabling reduced fan run-time during lower cooling demand without compromising enclosure protection.
