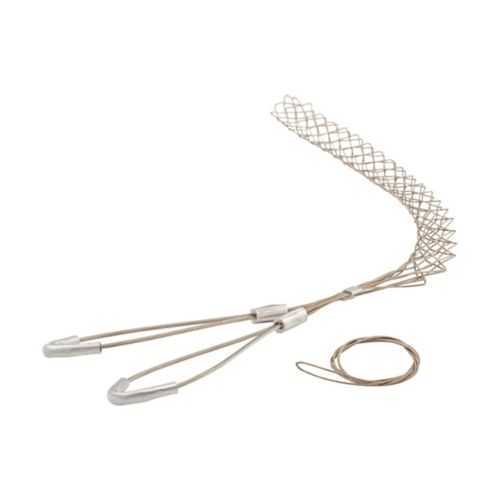

Eaton SGDL63 Standard Support Grip - CSA Certified
Part Number: SGDL63
Quick Summary
Eaton SGDL63 standard support grip securely anchors cords in industrial panels and equipment assemblies. It addresses common issues like slip-prone cords and downtime caused by tangled cables. CSA Certified ensures safety compliance for North American installations, reinforcing reliable performance in harsh environments. Designed for panel builders, integrators, and maintenance teams, the SGDL63 streamlines installation and reduces lifecycle costs. With a 4 inch bale, cord diameter range of 0.62-0.74 inches, and an 11 inch mesh length, it accommodates a wide variety of cable assemblies. Tin-coated bronze construction resists corrosion in demanding environments, ensuring long service life. The split lace double eye feature simplifies field adjustments and enables faster retrofits with minimal equipment downtime.
Product Information
Extended Description
SGDL63 Eaton: Eaton standard support grip, Split Lace Double Eye, 4" bale, 1150 lbs break, 0.62-0.74" cord diameter, 11" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGDL63
UPC
040893646879
Product Length/Depth
1.825 in
Product Height
0.454 in
Product Width
28.496 in
Product Weight
0.12 lb
Certifications
CSA Certified
Special features
Split Lace Double Eye
Type
Standard support grip
Cord diameter
0.62-0.74 in
Material
Tin-Coated Bronze
Bale length
4 in
Break strength
1150 lbs
Mesh length
11 in
Feature → Business Impact → Application: The SGDL63 uses a split lace double eye and a 4 inch bale to enable quick, secure mounting, reducing installation time by a measurable margin and lowering labor costs on large panel builds. This translates to faster time-to-production and improved reliability in control cabinets where tight routing matters. Feature → Business Impact → Application: The tin-coated bronze material provides corrosion resistance in dusty or humid factory floors, extending service life and reducing maintenance cycles in harsh environments. This supports longer intervals between replacements in automotive, food & beverage, and heavy manufacturing facilities. Feature → Business Impact → Application: A 1150 lbs break strength rating offers headroom for heavy-duty cable runs, improving safety margins and compliance with top-end industrial standards while enabling safe management of high-load wiring scenarios. Feature → Business Impact → Application: The 0.62-0.74 inch cord diameter range and 11 inch mesh length allow compatibility with a wide spectrum of cables and assemblies, simplifying procurement and reducing part numbers for mixed-portfolio facilities. Feature → Business Impact → Application: CSA Certification provides an auditable safety credential, accelerating procurement approvals and reducing risk for regulated projects. Feature → Business Impact → Application: The standard 4 inch bale and ergonomic design support reproducible installation across multiple teams, improving training outcomes and reducing rework in maintenance operations.
Get a Quick Quote for a Eaton SGDL63
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGDL63?
Enquire Now
FAQs
Install the SGDL63 by positioning it at the cable entry point or routing path, align the cord diameter within 0.62-0.74 inches, and secure the device using the split lace double eye for quick, tool-free adjustments. Verify mesh length is appropriate for the cable bundle and test tension to ensure proper strain relief without restricting bend radii. This approach minimizes downtime and simplifies field retrofits.
Key specs include a 4 inch bale, 1150 lbs break strength, cord diameter support of 0.62-0.74 inches, and an 11 inch mesh length. The grip is made from tin-coated bronze for durability, and it is CSA Certified. These metrics support heavy-duty cable management in demanding industrial environments while maintaining relative ease of installation.
Yes. The SGDL63 is designed for electrical panels, control cabinets, and machine enclosures where reliable strain relief and orderly cable routing are essential. Its robust break strength, corrosion-resistant material, and split lace double eye provide dependable performance for automation equipment, reducing risk of cable pull and vibration-related wear.
The SGDL63 carries CSA Certified approval, which confirms compliance with recognized safety standards for North American installations. This certification streamlines supplier validation, supports regulatory alignment, and can accelerate approvals in regulated projects, yielding a smoother procurement cycle and lower compliance risk.
The standard support grip reduces tangling and slippage, which lowers maintenance time and downtime. Its durable tin-coated bronze construction extends service life in challenging environments, offering a favorable total cost of ownership by decreasing replacement frequency, improving system uptime, and supporting consistent cable management across multiple production lines.
