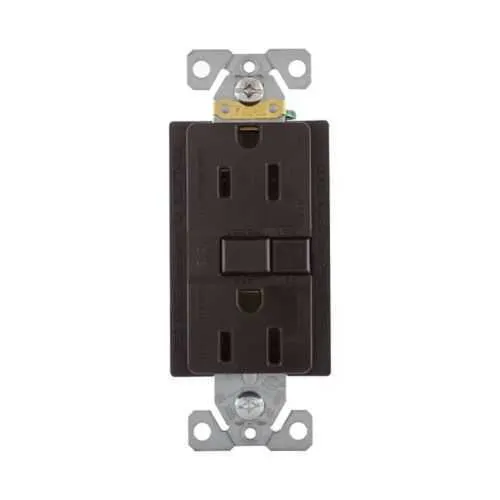

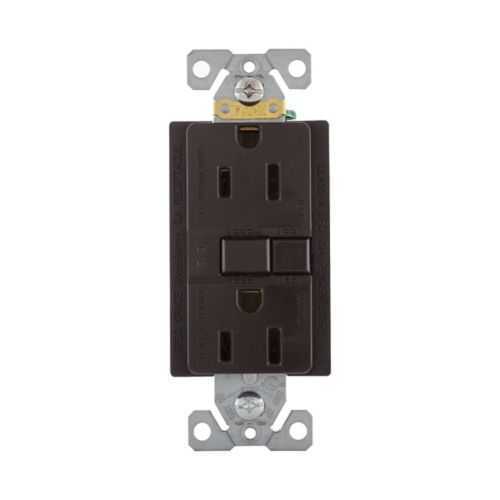

Eaton SGF15FB GFCI Receptacle - NAFTA compliant

Part Number: SGF15FB
Manufacturer
Eaton
Part number
SGF15FB

Quick Summary

The Eaton SGF15FB GFCI receptacle delivers reliable ground-fault protection for residential and commercial outlets. Installers often struggle with wiring compatibility and regulatory compliance, but this unit supports back- and side-wiring for flexible, code-ready installations. It carries NOM and cULus listings and is NAFTA compliant, with a self-test feature that continuously validates protection without manual checks. Designed to reduce downtime and callbacks, SGF15FB pairs with standard 15A 125V circuits and supports flush mounting for clean, space-saving layouts.

Product Information

Extended Description

SGF15FB Eaton: Eaton GFCI receptacle,NAFTA compliant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Brown,Brass,Receptacle,Polycarbonate,5-15R,Two-pole,Three-wire,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
SGF15FB
UPC
032664743351
Product Length/Depth
4.71 in
Product Height
2.01 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
NOM cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Color
Brown
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature: Self-test with continuous protection verification. Benefit: Reduces maintenance and ensures ongoing safety compliance, critical for high-traffic installations in both residential and commercial environments. Application: Ideal for new construction and retrofit projects where downtime must be minimized and safety codes demand proactive testing. Feature: Back- and side-wiring with #14–10 AWG conductors. Benefit: Flexible installation options that speed up wiring and reduce field errors, improving project timelines and installer productivity. Application: Suitable for wall boxes in dense mechanical rooms or finished walls where wiring access varies. Feature: 15A, 125V GFCI protection with NEMA 5-15R configuration. Benefit: Meets common U.S. and NAFTA electrical standards, delivering reliable protection for outlets serving basements, kitchens, and commercial spaces. Application: Residential and commercial outlets requiring reliable ground-fault protection. Feature: NOM and cULus listings, NAFTA compliant. Benefit: Streamlined compliance across North American markets, reducing approval cycles and risk. Application: Regulatory-driven installations in professional facilities and trades where certification traceability matters. Feature: Flush mounting with brass contact material on a polycarbonate body. Benefit: Space-saving, durable construction that resists wear and ensures long-term reliability in busy environments. Application: Wall-mounted outlets in constrained enclosures and high-traffic areas where aesthetics and performance matter.

Get a Quick Quote for a Eaton SGF15FB

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton SGF15FB? Enquire Now

FAQs

Power must be off at the breaker before installation. Use #14–10 AWG conductors and connect per local codes, securing wires to the back- and side-wire terminals. Tighten to 16 in-lbf for brass terminations, then mount flush into a standard wall box. Verify polarity and test the GFCI function after wiring to ensure proper protection.
The SGF15FB is a 15A, 125V GFCI receptacle with a NEMA 5-15R configuration. It supports back- and side-wiring with #14–10 AWG conductors, features a two-pole, three-wire grounding setup, and requires 16 in-lbf torque for secure connections. The device uses brass contact material and a PVC/polycarbonate body for durability.
Yes. The SGF15FB is designed for residential and commercial outlets, offering self-test protection and compatibility with standard 15A circuits. Its NAFTA compliance, NOM and cULus listings, and flush-mount form factor make it a versatile choice for kitchens, basements, offices, and other shared spaces requiring reliable GFCI protection.
The SGF15FB carries NOM and cULus listings and is NAFTA compliant, ensuring alignment with regional electrical codes and trade requirements. The self-test capability provides ongoing protection verification, helping maintain compliance with safety standards and reducing the likelihood of undetected faults in critical outlets.
The self-test feature minimizes manual tests, reducing routine maintenance checks and potential downtime. Compliance with NOM, cULus, and NAFTA simplifies approvals and reduces risk during audits. For installers, back- and side-wiring options plus standard 14–10 AWG conductors streamline installation, cutting labor time and callbacks in busy commercial environments.
