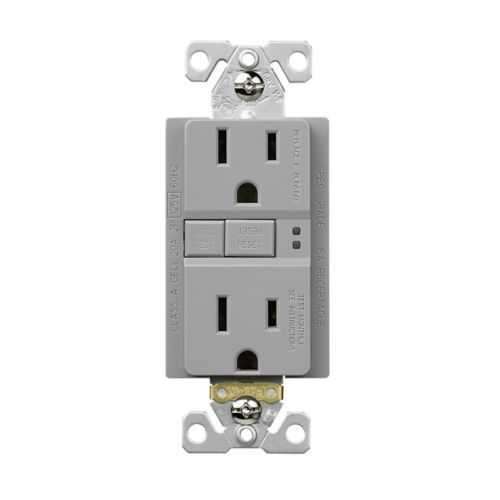

Eaton SGF15FGY GFCI Receptacle - NAFTA compliant
Part Number: SGF15FGY
Quick Summary
Eaton SGF15FGY GFCI receptacle protects people and equipment by interrupting ground faults in residential and commercial outlets. Installers often struggle with wiring complexity, code compliance, and reliable test features; this unit simplifies with back and side wiring, a self-test mechanism, and clear installation guidance. It carries NOM and cULus listings and NAFTA compliance, providing confidence across North American projects. Its compact flush-mount design, gray polycarbonate face, brass contacts, and 15A/125V rating help reduce installation time while boosting reliability. For contractors and facility managers, this GFCI receptacle delivers safer power delivery, predictable lifecycle costs, and easier procurement for both new builds and retrofits.
Product Information
Extended Description
SGF15FGY Eaton: Eaton GFCI receptacle,NAFTA compliant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Gray,Brass,Receptacle,Polycarbonate,5-15R,Two-pole,Three-wire,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
SGF15FGY
UPC
032664743375
Product Length/Depth
4.71 in
Product Height
2.01 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
NOM cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Color
Gray
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - SGF15FGY
Eaton Specification Sheet - SGF15FGY
Feature: Self-test GFCI function ensures ongoing fault protection without manual testing → Business Impact: reduces maintenance overhead and risk of undetected ground faults → Application: ideal for high-traffic commercial spaces and patient-care areas where continuous protection is critical. Feature: Back and side wiring support simplifies field wiring → Business Impact: minimizes installation errors, speeds up wiring, and lowers labor costs → Application: retrofit projects and new builds with limited access to front-wire terminals. Feature: 15A, 125V rating with 5-15R NEMA configuration → Business Impact: compatible with standard household and light commercial outlets, reducing inventory variety and replacement costs → Application: residential kitchens, offices, and retail spaces needing reliable GFCI protection. Feature: Flush mounting and durable face/body (PVC/Polycarbonate) → Business Impact: clean aesthetics, easier cleaning, and enhanced longevity in damp environments → Application: wall plates in bathrooms, kitchens, and utility rooms. Feature: Torque-rated terminals at 16 lbf-in → Business Impact: secure terminations prevent overheating and nuisance trips → Application: consistent performance across installers and warranty adherence. Feature: NAFTA compliant with NOM and cULus Listed → Business Impact: streamlines cross-border procurement and regulatory compliance → Application: multinational projects and supply chains across North America.
Get a Quick Quote for a Eaton SGF15FGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGF15FGY?
Enquire Now
FAQs
Power must be off. Remove the existing receptacle, attach #14-10 AWG conductors to the back and side terminals as shown in the wiring diagram, and tighten to 16 lbf-in on each terminal. Mount flush in a compatible electrical box and run a quick self-test to confirm ground-fault protection is active.
The SGF15FGY is NOM certified and cULus Listed, with NAFTA compliance, reflecting cross-border safety and regulatory alignment for North American installations.
Yes. It provides a 15A, 125V rating with a 5-15R receptacle configuration, making it suitable for both homes and commercial spaces needing reliable GFCI protection and easy installation.
The device uses a two-pole, three-wire grounding configuration (5-15R), ensuring proper grounding and compliance with modern electrical codes for safe fault interruption.
The built-in self-test reduces maintenance downtime by continuously validating protection. Cross-border certifications simplify procurement, delivering predictable lifecycle costs and safer, code-compliant operation.
