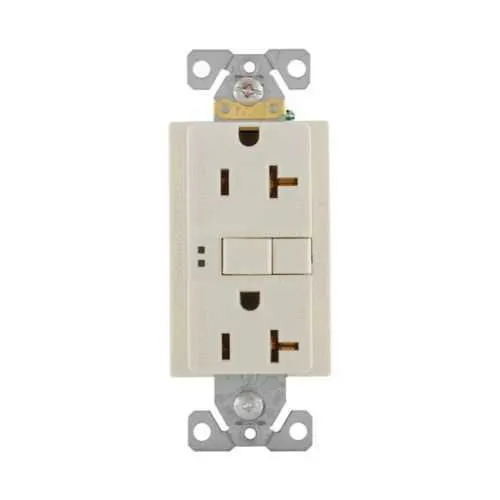

Eaton SGF20A GFCI Receptacle - Self-test cULus Listed
Part Number: SGF20A
Quick Summary
GFCI receptacle SGF20A by Eaton delivers reliable ground-fault protection for residential and commercial outlets. Installing and testing GFCI devices in flush installations can invite wiring errors, noncompliance with code, and costly rework, especially in tight spaces. It carries cULus Listed and NOM certifications, supporting U.S. and international safety requirements for dependable installations across diverse job sites. With back and side wiring, 20A at 125V, flush mounting, almond finish, brass contacts, and a rugged PVC/polycarbonate body, the SGF20A fits compact spaces while reducing field calls and warranty risk, helping projects stay on schedule and within budget.
Product Information
Extended Description
SGF20A Eaton: Eaton GFCI receptacle,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Almond,Brass,Receptacle,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
SGF20A
UPC
032664742477
Product Length/Depth
2.823 in
Product Height
4.635 in
Product Width
2.01 in
Product Weight
0.425 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Mounting method
Flush
Color
Almond
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - SGF20A
Eaton Specification Sheet - SGF20A
Feature: Self-test functionality provides automated verification of GFCI protection. Business Impact: Reduces manual testing, increases reliability, and improves code-compliance confidence across ongoing maintenance cycles. Application: Ideal for kitchens, bathrooms, and work areas where continuous protection is required. Feature: 20A, 125V rating with NEMA 5-20R receptacle and brass contact material. Business Impact: Supports common branch circuits with durable contact performance, reducing contact wear and service calls. Application: Suitable for new-builds and retrofit installations in commercial and residential spaces. Feature: Back and side wiring for #14–10 AWG conductors with a 16 in-lbf torque rating. Business Impact: Accelerates field wiring and ensures secure terminations, decreasing commissioning time. Application: Fits in flush-box configurations with flexible wiring options. Feature: Flush mounting, almond color, PVC/polycarbonate face/body. Business Impact: Delivers a neat, durable finish that resists impact and environmental exposure while meeting aesthetic requirements. Application: Visible outlets in wall recesses, utility rooms, and common areas. Feature: Certifications cULus Listed and NOM. Business Impact: Supports code compliance and reduces project risk through recognized safety approvals. Application: North American and international projects requiring reliable listings.
Get a Quick Quote for a Eaton SGF20A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGF20A?
Enquire Now
FAQs
To install SGF20A, turn off power, remove the existing outlet, and connect conductors using back and side wiring for #14 to 10 AWG. Maintain proper rotation of the brass terminals and tighten to 16 in-lbf. Mount the device flush in the box, restore power, and test with the built-in self-test or an external test method.
SGF20A is a 20A, 125V GFCI receptacle with a NEMA 5-20R configuration. It uses brass contact material and supports back or side wiring for #14–10 AWG conductors. The device is rated for 16 in-lbf torque and is designed for residential and commercial circuits requiring reliable ground-fault protection.
Yes. The SGF20A is specified for residential and commercial use, with a flush-mount design and almond finish that blend into common interior environments. Its 20A/125V rating, back-and-side wiring, and grounding configuration meet typical building codes for outlets in kitchens, bathrooms, garages, and other spaces requiring quick, compliant protection.
The SGF20A carries cULus Listed and NOM certifications, indicating compliance with North American safety standards and select international requirements. These certifications reduce project risk by aligning with code expectations for protective devices, especially in spaces with stringent electrical regulations and in projects that require verified safety approvals.
The self-test feature continuously verifies the integrity of the GFCI protection without manual intervention, lowering maintenance overhead and the chance of undetected faults. This translates to fewer field calls, faster commissioning, improved uptime, and a favorable return on investment through enhanced safety, compliance, and longer device life in high-use areas.
