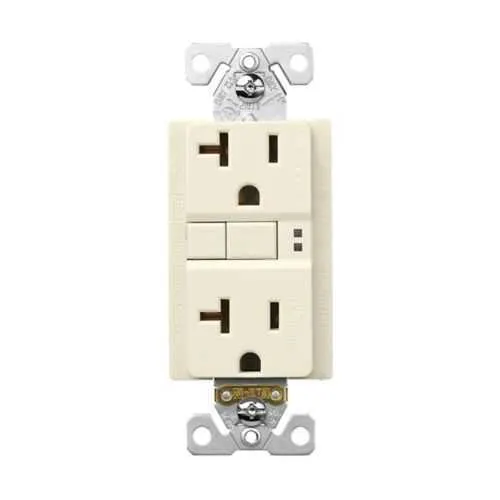

Eaton SGF20FLA GFCI Receptacle - NAFTA Compliant
Part Number: SGF20FLA
Quick Summary
GFCI receptacle from Eaton SGF20FLA provides reliable ground-fault protection for residential and commercial outlets. Installers often struggle with wiring choices and nuisance trips, but this unit’s self-test helps maintain continuous protection with minimal maintenance. Certified NOM and cULus Listed, plus NAFTA compliance, it meets regional standards for diverse projects and cross-border installations. With back-and-side wiring, flush mounting, and a 20A, 125V rating, it delivers fast, code-compliant installation for both renovations and new builds. This combination supports industry requirements while delivering practical value to electrical contractors and facility managers.
Product Information
Extended Description
SGF20FLA Eaton: Eaton GFCI receptacle,NAFTA compliant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Light almond,Brass,Receptacle,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
SGF20FLA
UPC
032664743443
Product Length/Depth
4.71 in
Product Height
2.01 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
NOM cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Mounting method
Flush
Color
Light almond
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - SGF20FLA
Eaton Specification Sheet - SGF20FLA
Feature: Self-test GFCI ensures ongoing protection without manual testing; Business Impact: reduces risk of undetected ground faults and lowers maintenance calls; Application: suitable for kitchens, bathrooms, and other residential/commercial outlets where protection is required. Feature: Back and side wiring accepts #14 - 10 AWG; Business Impact: flexible installation paths streamline wiring and reduce time on site; Application: retrofit projects and new constructions alike. Feature: NEMA configuration 5-20R (two-pole, three-wire grounding); Business Impact: standard plug compatibility minimizes adaptor needs and accelerates turnover; Application: common branch circuits in offices and homes. Feature: Flush mounting design; Business Impact: neat, code-compliant installations that resist damage and improve aesthetics; Application: surface-mount environments where a clean finish matters. Feature: Durable face/body materials (PVC polycarbonate) with brass contacts; Business Impact: improved longevity and reliable electrical contact reduce replacement costs; Application: high-use locations with regular plug-in activity. Feature: NAFTA compliant and NOM/cULus Listed; Business Impact: accelerates cross-border project approvals and regulatory adherence; Application: multi-region specifications and controlled environments where compliance matters.
Get a Quick Quote for a Eaton SGF20FLA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGF20FLA?
Enquire Now
FAQs
To install the SGF20FLA, switch off power and remove the existing receptacle. Prepare #14 - 10 AWG conductors, attach them to the back or side terminals per the wiring method, torque to 16 lbf-in, and secure the device in the flush-mount box. Ensure the line and load connections follow code requirements, then test the self-test feature to verify protection.
The SGF20FLA is NOM and cULus Listed and NAFTA compliant. These certifications confirm compliance with regional electrical safety standards, enabling cross-border installations and reducing risk during inspections. For contractors, this simplifies approvals on multi-site projects and supports warranty eligibility when used in approved configurations.
Yes. The receptacle is designed for both residential and commercial applications, supporting back and side wiring with #14 - 10 AWG conductors. Its 20A, 125V rating and NEMA 5-20R configuration align with common branch circuits, making it suitable for kitchens, bathrooms, offices, and other high-use spaces.
The SGF20FLA uses a NEMA 5-20R configuration, which is a two-pole, three-wire grounding receptacle. This setup provides standard 20A circuit protection with grounding for safety. The brass contact material and flush-mount design support reliable, code-compliant connections in typical 125V circuits.
Wiring accepts #14 - 10 AWG conductors with back or side wiring options. Tighten terminals to 16 lbf-in torque to ensure a secure connection and reliable protection. The unit is rated for 20A at 125V, with a flush mounting method to deliver a clean installation in both new and retrofit projects.
