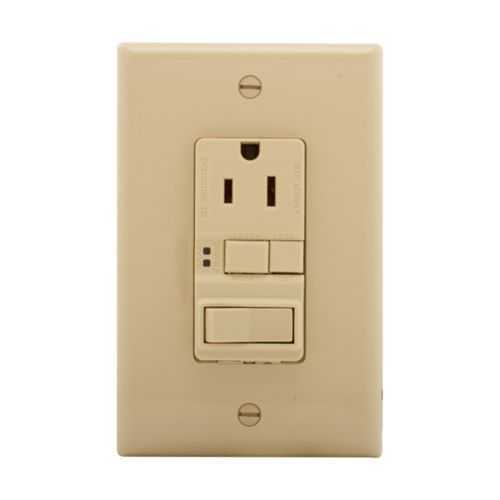

Eaton SGFS15V-MSP GFCI Receptacle - NOM cULus Listed
Part Number: SGFS15V-MSP
Quick Summary
Eaton SGFS15V-MSP GFCI receptacle delivers dependable ground-fault protection for commercial outlets and decorator-style installations. When project timelines or retrofit budgets are tight, contractors need a reliable, code-ready solution that minimizes field corrections and nuisance trips. This unit is NOM and cULus Listed, with a 125 V, 60 Hz rating, and it supports back-and-side wiring for flexible, flush-mount installation. Designed for professional environments, it combines safety, durability, decorator-compatibility, and ease of installation, helping reduce commissioning time and total cost of ownership while meeting commercial standards. It is well suited for office, retail, and hospitality applications where reliable GFCI protection is required.
Product Information
Extended Description
SGFS15V-MSP Eaton: Eaton GFCI receptacle, 120 V Self-Test GFCI recept, Decorator compatible, #14 - #12 AWG, 15A, Commer, 125V, bk and sd wiring, togg, Maint closure, Ivy, Mid-size walplt, 60 Hz, 5-15R, -35-66?C, 1-pole, thermoplas, PVC, 1800W
Product Name
Eaton GFCI receptacle
Catalog Number
SGFS15V-MSP
UPC
032664750083
Product Length/Depth
1.68 in
Product Height
4.2 in
Product Width
1.26 in
Product Weight
0.001 lb
Certifications
NOM cULus Listed
Type
Decorator compatible
Amperage Rating
15A
Voltage rating
125 V
Features
Mid-size wallplate Combination with switch
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Torque rating
16 lbf-inch
Mounting method
Flush
GFCI brochure
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - SGFS15V-MSP
Self-Test GFCI technology provides built-in fault detection, delivering immediate protection and reducing maintenance overhead. This translates to fewer unplanned outages and enhanced code compliance in high-traffic commercial spaces. The decorator-compatible face and mid-size wallplate compatibility simplify renovations and new builds, accelerating project timelines while preserving aesthetics in corporate environments. Back and side wiring offers flexible terminations, and flush mounting ensures a clean, code-ready appearance that minimizes space concerns in crowded boxes. A torque rating of 16 lbf-in supports consistent, secure terminations resistant to vibration in busy facilities. With compact dimensions (1.68 in depth, 4.2 in height, 1.26 in width) and a 1800W load capacity, installation remains straightforward across standard commercial outlets. Certifications NOM cULus Listed validate safety and cross-border applicability.
Get a Quick Quote for a Eaton SGFS15V-MSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGFS15V-MSP?
Enquire Now
FAQs
The SGFS15V-MSP supports both back and side wiring, enabling flexible terminations in existing or new boxes. For decorator-style applications, pair it with a mid-size wallplate and a compatible decorator face to maintain architectural aesthetics. Ensure the device is flush-mounted for proper clearance and use the supplied mounting hardware and torque specification (16 lbf-in) to achieve a secure, code-compliant connection.
The SGFS15V-MSP is a 15A, 125V GFCI receptacle with 60 Hz operation and self-test functionality. It provides ground-fault protection to reduce shock risk in commercial outlets, supports up to 1800W loads, and requires 16 lbf-in of torque for proper termination. The device is designed for commercial use and is NOM cULus Listed, ensuring safety compliance across markets.
Yes. The SGFS15V-MSP is specifically designed for commercial environments, offering decorator-compatible aesthetics with robust GFCI protection. Its 125V, 60 Hz rating, back/side wiring, flush mounting, and 16 lbf-in torque make it ideal for office spaces, reception areas, conference rooms, and other high-traffic commercial applications where reliable outlet protection and quick installation matter.
The SGFS15V-MSP is NOM and cULus Listed. This certification combination validates safety across Mexican and North American standards, supporting compliance for commercial buildings and multi-site deployments without requiring device-level revalidation for different jurisdictions.
The built-in Self-Test GFCI feature reduces routine maintenance checks by automatically verifying protection function. Back and side wiring simplifies wiring in a variety of box configurations, while flush mounting speeds up installation and improves wall aesthetics. Collectively, these factors shorten project timelines, minimize field corrections, and lower long-term maintenance costs in busy commercial facilities.
