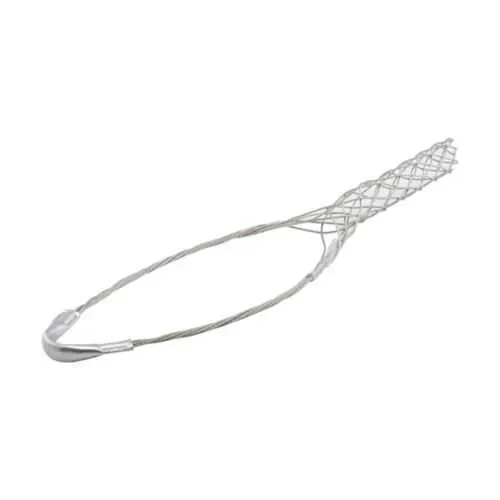

Eaton SGS100 Standard Support Grip - CSA Certified
Part Number: SGS100
Quick Summary
The Eaton SGS100 Standard Support Grip secures cables and wires in harsh industrial environments. Engineers often contend with vibration, moisture, and cramped spaces that lead to loosening, cable fatigue, and maintenance delays; this grip simplifies installation and delivers a dependable hold. CSA Certified ensures recognized safety and performance compliance, while tin-coated bronze resists corrosion in challenging settings. Designed for wiring and connectivity applications, the SGS100 combines a 9 inch bale, 15 inch mesh length, and a cord diameter range of 1.00 to 1.24 inches to support a broad range of industrial cords and conductors.
Product Information
Extended Description
SGS100 Eaton: Eaton standard support grip, Closed Mesh Single Eye, 9" bale, 1680 lbs break, 1.00-1.24" cord diameter, 15" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGS100
UPC
040893647111
Product Length/Depth
1.116 in
Product Height
27.491 in
Product Width
1.73 in
Product Weight
0.28 lb
Certifications
CSA Certified
Special features
Closed Mesh Single Eye
Type
Standard support grip
Cord diameter
1.00-1.24 in
Material
Tin-Coated Bronze
Bale length
9 in
Break strength
1680 lbs
Mesh length
15 in
Closed Mesh Single Eye design provides a uniform gripping surface, improving load distribution and minimizing conductor damage in vibration-prone environments. The 9 inch bale length and 15 inch mesh length enable deeper engagement and longer service life, reducing rework and maintenance in motor drives and control cabinets. The cord diameter range of 1.00 to 1.24 inches ensures compatibility with standard industrial cords, streamlining part selection and stocking. Tin-Coated Bronze offers enhanced corrosion resistance, extending service life in humid or washdown environments and lowering replacement costs over time. A robust 1680 lb break strength delivers reliable hold under heavy loads, promoting safer, more compliant installations in conveyors and machinery. CSA Certification reinforces adherence to recognized safety standards, supporting audits and procurement requirements while maintaining compatibility with Wiring & Connectivity applications and professional, code-compliant installations.
Get a Quick Quote for a Eaton SGS100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGS100?
Enquire Now
FAQs
The SGS100 is designed to secure cables and conductors within industrial wiring and connectivity installations. It is especially effective in machinery enclosures, motor drives, conveyors, and control panels where vibration, space constraints, and exposure to harsh conditions can compromise cable integrity. Its closed mesh eye helps maintain a stable grip while protecting conductors.
The SGS100 supports a cord diameter range of 1.00 to 1.24 inches, enabling compatibility with common industrial cords used in motors, power distribution, and wiring harnesses. This range simplifies part selection and reduces the need for multiple grip sizes in a given project.
The SGS100 offers a break strength of 1680 pounds, providing a strong, reliable hold under heavy loads and during equipment vibration. This specification helps prevent slip, cable damage, and downtime in high-stress applications such as conveyors and heavy machinery while supporting compliant, safe installations.
Yes, the SGS100 is CSA Certified, indicating compliance with recognized safety and performance standards. This certification supports regulatory obligations, quality assurance processes, and procurement requirements for industrial wiring and connectivity projects, reducing risk during audits and inspections.
For optimal performance, ensure the cord diameter sits within 1.00–1.24 inches and align the grip with the intended cable path to minimize bending stress. The Closed Mesh Single Eye design protects against abrasion, while Tin-Coated Bronze material offers corrosion resistance. Maintain appropriate mesh length (15 inches) and bale length (9 inches) to maximize engagement and service life in demanding settings.
