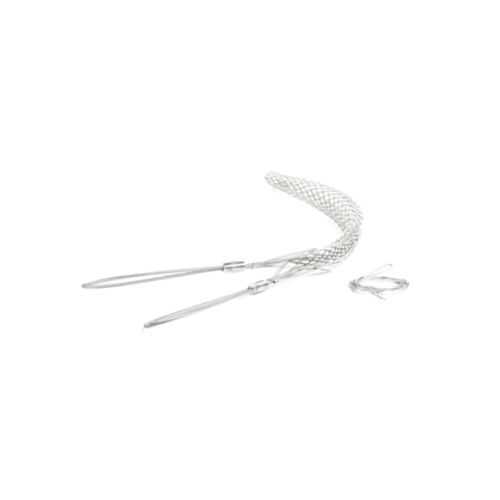

Eaton SGTDL100 Standard Support Grip - CSA Certified
Part Number: SGTDL100
Quick Summary
Eaton SGTDL100 standard support grip secures heavy-duty cables in industrial wiring and harness applications. For engineers facing frequent maintenance, its split lace double eye and rugged build reduce wear, slippage, and downtime in vibratory environments. CSA Certified safety validation supports reliable, code-compliant installations across North American facilities. Tin-coated bronze material and a heavy-duty design deliver corrosion resistance and extended service life in harsh, moisture-prone settings. The device's 1.00–1.24 in cord diameter range, 10 in bale, and 29 in mesh length simplify selection and installation while matching common field cables. With a compact footprint and light weight, it contributes to lower inventory costs and predictable procurement. This combination supports scalable wiring layouts for growing manufacturing lines.
Product Information
Extended Description
SGTDL100 Eaton: Eaton standard support grip, Split Lace Double Eye, Heavy duty, 10" bale, 4720 lbs break, 1.00-1.24" cord diameter, 29" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGTDL100
UPC
032664725432
Product Length/Depth
2.369 in
Product Height
0.97 in
Product Width
40 in
Product Weight
1 lb
Certifications
CSA Certified
Special features
Split Lace Double Eye, Heavy duty
Type
Standard support grip
Cord diameter
1.00-1.24 in
Material
Tin-Coated Bronze
Bale length
10 in
Break strength
4720 lbs
Mesh length
29 in
Split Lace Double Eye design provides a secure and stable anchoring point for routed cables. Business impact: reduces movement, wear, and slippage, lowering inspection intervals in vibrating equipment. Application: ideal for heavy-duty panel assemblies and wire mesh grip installations in manufacturing plants. Tin-Coated Bronze material enhances corrosion resistance, extending service life in damp and industrial environments. Business impact: lowers replacement costs and maintenance downtime. Application: suitable for outdoor or humid facilities where conductors and grips face exposure. Cord diameter range of 1.00 to 1.24 inches ensures compatibility with standard field cables and harnesses. Business impact: simplifies procurement, reduces spares stocking, and minimizes part variety. Application: supports mid-size cable bundles in wiring & connectivity setups. Break strength of 4720 lbs underlines capability to secure heavy cable bundles. Business impact: improves containment under vibration, reducing risk of loosening. Application: ideal for high-load environments like manufacturing floors and data centers. Dimensions and weight provide a compact, easy-to-handle profile: Product Length/Depth 2.369 in, Product Height 0.97 in, Product Width 40 in, Product Weight 1 lb. Business impact: facilitates quick installation and streamlined inventory management. Application: suitable for space-constrained electrical panels and cabinetry. CSA Certified safety validation ensures compliance and reliable performance in North American installations. Business impact: enhances procurement confidence and reduces compliance risk. Application: suitable for OEM assemblies and field deployments in wiring & connectivity projects.
Get a Quick Quote for a Eaton SGTDL100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGTDL100?
Enquire Now
FAQs
The SGTDL100 supports a cord diameter range of 1.00 to 1.24 inches, making it compatible with a broad set of mid-size electrical cables used in wiring and connectivity applications. This range helps reduce the need for multiple grip sizes in typical panel and harness installations, simplifying procurement and stocking while ensuring a secure fit under operating loads.
Yes. The SGTDL100 carries CSA Certified safety validation, which provides confidence for panel builds, field installations, and OEM assemblies within North American markets. CSA certification helps ensure compliance with applicable safety standards and contributes to risk reduction during audits and inspections.
The Split Lace Double Eye design anchors cables securely, reducing movement and wear in vibrating equipment. Combined with a 4720 lb break strength and tin-coated bronze material, the grip resists loosening and corrosion. This results in fewer maintenance events and more reliable harness assemblies in manufacturing lines and heavy-duty electrical installations.
Tin-coated bronze is the primary corrosion-resistant material used in the SGTDL100, paired with a heavy-duty construction. This combination minimizes degradation in moisture-prone or industrial environments, extending service life and reducing replacement costs for cable routing components in harsh facilities.
Ideal for securing heavy cables and wire bundles in electrical panels, distribution centers, and automated manufacturing lines. The product’s high break strength, compatible cord diameter, and robust mesh length make it suitable for demanding cable management tasks, while CSA certification supports compliant integration into existing wiring and connectivity architectures.
