Eaton SGTS100 Standard support grip - CSA Certified
Part Number: SGTS100
Quick Summary
SGTS100 Eaton standard support grip enables secure heavy-duty cable management in industrial enclosures. Without proper grips, cables slip, increasing maintenance requirements, downtime, and safety risks for operators. CSA Certified design supports compliance with North American electrical safety standards and steady performance in harsh environments. The 4720 lb break strength, 10 in bale length, 29 in mesh length, and tin-coated bronze construction deliver reliable retention for 1.00–1.24 in cord diameters, while a compact footprint supports easy integration with existing wire-mesh systems. This combination reduces replacement frequency, improves installation efficiency, and lowers lifecycle costs for panel builders and machine integrators. Engineers appreciate predictable performance across temperature and vibration.
Product Information
Extended Description

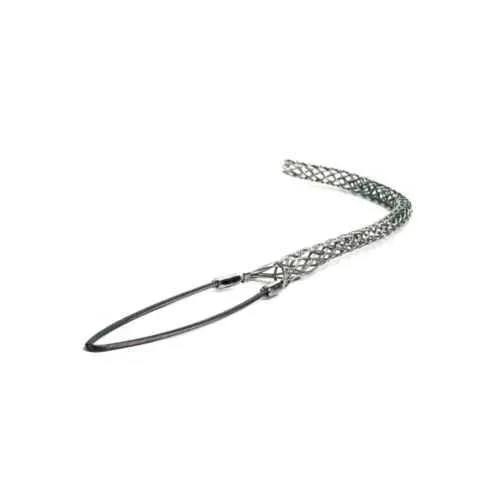

SGTS100 Eaton: Eaton standard support grip, Closed Mesh Single Eye (Heavy Duty), 10" bale, 4720 lbs break, 1.00-1.24" cord diameter, 29" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGTS100
UPC
040893652115
Product Length/Depth
0.852 in
Product Height
49.11 in
Product Width
2.716 in
Product Weight
0.98 lb
Certifications
CSA Certified
Special features
Closed Mesh Single Eye (Heavy Duty)
Type
Standard support grip
Cord diameter
1.00-1.24 in
Material
Tin-Coated Bronze
Bale length
10 in
Break strength
4720 lbs
Mesh length
29 in
Feature: Closed Mesh Single Eye (Heavy Duty) design provides a secure grip that resists pull-out under heavy loads. Business Impact: Lower maintenance intervals and reduced cable misalignment in dense bundles. Application: Ideal for securing large power and control cables in industrial enclosures and outdoor installations where vibration is common. Feature: 4720 lb break strength. Business Impact: High load capacity minimizes the chance of grip failure during startup surges or fault events, boosting system reliability. Application: Suitable for heavy electrical harnesses and motor leads in switchgear and panel assemblies. Feature: Tin-Coated Bronze material. Business Impact: Corrosion resistance extends life in humid or corrosive environments, reducing replacement costs. Application: Excellent for coastal plants or labs with exposure to moisture. Feature: Bale length 10 in and Mesh length 29 in. Business Impact: Longer length accommodates longer cable runs and simplifies routing, reducing assembly steps and touchpoints. Application: Works well for large harnesses and equipment where multiple cables must be contained in a single grip. Feature: Cord diameter 1.00–1.24 in. Business Impact: Fits a common range of power and control cables, enabling standardized installation across multiple assemblies. Application: Supports typical industrial automation harnesses in panels and control cabinets. Feature: CSA Certified. Business Impact: Regulatory alignment and documented safety compliance reduce procurement risk for North American facilities. Application: Ideal for panel builders, OEMs, and integrators seeking compliant solutions. Feature: Dimensions and weight. Business Impact: Compact footprint and light weight streamline handling, shipping, and on-site installation. Application: Fits within standard enclosure layouts and supports rapid deployment in upgrade projects.
Get a Quick Quote for a Eaton SGTS100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGTS100?
Enquire Now
FAQs
SGTS100 is designed for closed mesh single-eye grips with a 1.00–1.24 in cord diameter. It uses a 10 in bale and a 29 in mesh length, enabling secure containment of larger power and control cable bundles in industrial enclosures and panels.
The grip features a product length/depth of 0.852 in, a product height of 49.11 in, and a product width of 2.716 in, with an approximate weight of 0.98 lb. These dimensions support compact integration into standard electrical assemblies.
Yes. SGTS100 is CSA Certified, providing compliance with North American electrical safety standards. This certification helps streamline procurement for facilities prioritizing regulatory alignment and vendor credibility.
Ideal for securing large cable runs in electrical enclosures, switchgear panels, and machinery harnesses where heavy-duty retention and vibration resistance are required, such as OEM equipment and panel assembly lines.
The high break strength, corrosion-resistant tin-coated bronze, and extended mesh length reduce replacement frequency and maintenance visits, delivering lower lifecycle costs and improved uptime for panel builders and integrators.
