Eaton SGTS150 Standard Support Grip - CSA Certified
Part Number: SGTS150
Quick Summary
SGTS150 standard support grip is used to secure heavy-duty cables in industrial electrical installations. Engineers often struggle with selecting a grip that survives vibration, heavy loads, and harsh environments without complex adjustments. CSA Certified, and in many markets CE and IP-rated equipment are common expectations for safety and reliability, reinforcing compliant designs. This model combines robust mechanical strength with corrosion resistance, delivering dependable performance in demanding settings. For buyers, the combination of a heavy-duty design and standard compliance translates into reduced maintenance, predictable uptime, and improved project ROI when integrating with wiring and connectivity solutions.
Product Information
Extended Description

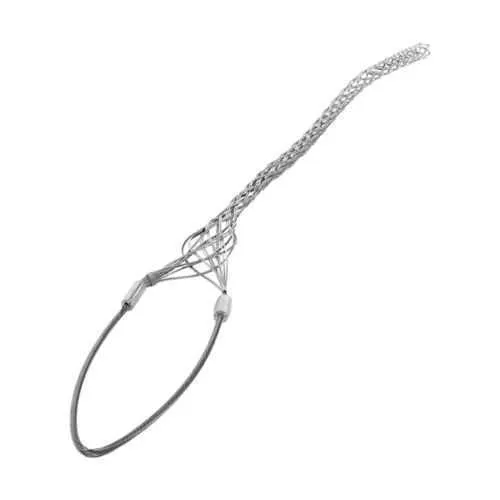

SGTS150 Eaton: Eaton standard support grip, Closed Mesh Single Eye (Heavy Duty), 10" bale, 4720 lbs break, 1.50-1.99" cord diameter, 35" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGTS150
UPC
040893652139
Product Length/Depth
1.346 in
Product Height
45.75 in
Product Width
3.575 in
Product Weight
1.44 lb
Certifications
CSA Certified
Special features
Closed Mesh Single Eye (Heavy Duty)
Type
Standard support grip
Cord diameter
1.50-1.99 in
Material
Tin-Coated Bronze
Bale length
10 in
Break strength
4720 lbs
Mesh length
35 in
Feature: Closed Mesh Single Eye (Heavy Duty) design → Business Impact → Application: Provides secure cable attachment with enhanced load distribution, reducing grip movement and wear in feeder installations. This translates to lower maintenance cycles and safer operations in harsh environments such as factories and plants. Feature: 4720 lbs break strength → Business Impact → Application: Strong, reliable retention under high-torque and impact conditions, minimizing risk of cable release during start-up or surge events in heavy machinery and distribution panels. Feature: 1.50-1.99 in cord diameter compatibility → Business Impact → Application: Flexible range to accommodate common cable sizes, simplifying inventory management and field installations for control cabinets and switchgear. Feature: Tin-Coated Bronze material → Business Impact → Application: Superior corrosion resistance in challenging environments, improving long-term durability in damp or industrial settings. Feature: 35 in mesh length + 10 in bale → Business Impact → Application: Extended working length for easier routing and secure anchoring in large cable arrays, streamlining installation in panel bays and cable trays. Feature: CSA Certified → Business Impact → Application: Compliance assurance supports regulatory adherence and quality expectations across electrical construction projects, reducing risk during audits and handovers.
Get a Quick Quote for a Eaton SGTS150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGTS150?
Enquire Now
FAQs
SGTS150 uses the Closed Mesh Single Eye design and is sized for 1.50-1.99 in cord diameter, matching common Eaton and third-party grip assemblies. For retrofit projects, confirm cylinder bore diameter, eye size, and bale length (10 in) to ensure seamless integration with existing mounting hardware and panel enclosures. If mismatches occur, consider adapter sleeves or alternate SG-series products with the same grip geometry.
A 4720 lb break strength indicates the maximum load the grip can tolerate before failure under static testing. In industrial automation and wiring applications, this translates to robust retention during high-vibration startup, short-term surge events, and heavy-duty cable bundles. Design engineers should factor dynamic loads, temperature rise, and material fatigue into the safety margin to ensure long-term reliability.
The SGTS150 uses Tin-Coated Bronze, which provides some corrosion resistance, but its suitability for marine or offshore environments depends on exposure level and splash protection requirements. For aggressive salt spray or immersion, verify environmental rating and consider additional protective coatings or alternative corrosion-rated products designed specifically for offshore use.
SGTS150 is CSA Certified, offering assurance of compliance with recognized safety standards for electrical components. When sourcing, confirm the CSA marking aligns with your regional compliance requirements and audit expectations. If CE or IP ratings are mandatory for your project, evaluate alternate SKUs or contact Eaton for product variants that meet those certifications.
To maximize lifespan, inspect grip integrity during routine preventive maintenance, check for corrosion on tin-coated bronze, and ensure cable diameters remain within 1.50-1.99 in to avoid overloading or slippage. Regularly verify mesh length allocation and bale condition, replacing grips showing wear, deformation, or looseness to sustain secure cable management and reduce unplanned downtime.
