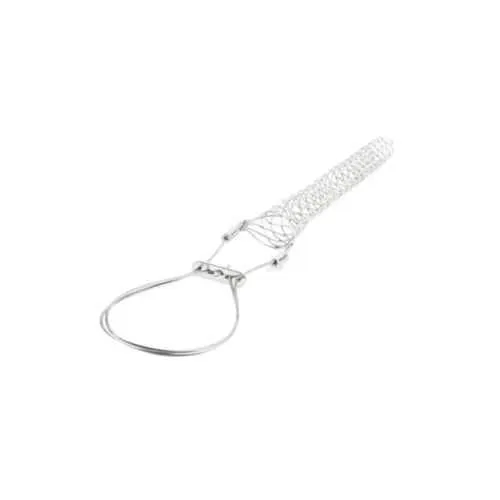

Eaton SGU100 Standard Support Grip - CSA Certified
Part Number: SGU100
Quick Summary
The Eaton SGU100 standard support grip provides secure, durable cable management for industrial enclosures. Engineers often confront loose fittings and load fatigue that drive downtime and maintenance costs. CSA Certified ensures electrical safety standards are met in rugged environments, supporting reliable operation in demanding installations. Its tin-coated bronze construction and closed mesh locking bale deliver long-term reliability, while the 18 inch bale and 15 inch mesh length simplify routing and tensioning. This combination supports wiring and connectivity workflows, reduces replacement cycles, and enhances installation efficiency for panel builders and OEMs.
Product Information
Extended Description
SGU100 Eaton: Eaton standard support grip, Closed Mesh Locking Bale, 18" bale, 1920 lbs break, 1.00-1.24" cord diameter, 15" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGU100
UPC
040893683737
Product Length/Depth
0.863 in
Product Height
28.501 in
Product Width
2.423 in
Product Weight
0.445 lb
Certifications
CSA Certified
Special features
Closed Mesh Locking Bale
Type
Standard support grip
Cord diameter
1.00-1.24 in
Material
Tin-Coated Bronze
Bale length
18 in
Break strength
1920 lbs
Mesh length
15 in
Feature → The SGU100 uses a Closed Mesh Locking Bale for secure cable retention, delivering consistent tension and reducing looseness under vibration. Business Impact → This improves equipment uptime and lowers maintenance costs by minimizing cable movement that can wear cords or disconnect fittings. Application → Ideal for control panels and electrical enclosures in harsh industrial environments where reliable cable management is essential. Feature → Tin-Coated Bronze material enhances corrosion resistance and durability, increasing service life in damp or corrosive settings. Business Impact → Extends grip longevity and reduces replacement frequency, lowering total cost of ownership. Application → Suitable for outdoor installations or humidity-prone facilities where metal exposure is a concern. Feature → 18 in Bale length and 15 in Mesh length provide flexible routing options for diverse cable layouts. Business Impact → Simplifies installation planning, reduces setup time, and supports efficient space utilization in compact enclosures. Application → Works well in machine and process equipment that require precise cable paths. Feature → Cord diameter range of 1.00-1.24 in accommodates common industrial cables with robust hold. Business Impact → Improves grip reliability under load, minimizing slip and rework. Application → Beneficial for medium to large cables in power and control wiring applications. Feature → Break strength of 1920 lbs ensures high-load performance and resilience. Business Impact → Enhances safety margins for critical installations and reduces risk of sudden grip failure. Application → Appropriate for heavy-duty cable management in high-vibration environments and robust equipment platforms. Feature → CSA Certification provides recognized electrical safety compliance. Business Impact → Aids regulatory alignment, simplifying procurement and approval processes for regulated facilities. Application → Recommended for industrial facilities requiring certified components within wiring and connectivity systems.
Get a Quick Quote for a Eaton SGU100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGU100?
Enquire Now
FAQs
The SGU100 is designed for standard wiring enclosures and control panels, with an 18 inch bale length and 15 inch mesh length that accommodate typical cable routing. Its closed mesh locking bale simplifies secure anchoring, reducing the need for additional hardware and minimizing installation time. Verify cable diameter compatibility (1.00–1.24 in) for a proper fit and reliable performance.
Key specs include a tin-coated bronze construction, 18 in bale length, 15 in mesh length, cord diameter range of 1.00–1.24 in, and a break strength of 1920 lbs. CSA certification confirms electrical safety compliance. These attributes translate to strong retention under load and long service life in demanding environments.
Yes. The SGU100 features a closed mesh locking bale and a high 1920 lb break strength, which helps resist loosening and slippage under vibration. Tin-coated bronze adds durability, while CSA certification ensures safety compliance. This makes it well-suited for machinery, packaging lines, and process equipment exposed to continuous motion.
The SGU100 carries CSA Certification, indicating compliance with recognized electrical safety standards for industrial components. This certification supports regulatory alignment, supplier qualification, and safer procurement decisions for panel builders and OEMs working in regulated facilities.
The SGU100 can lower maintenance costs by reducing cable movement and re-tensioning needs, thanks to its robust closed mesh bale and high break strength. Its durable tin-coated bronze construction minimizes corrosion-related replacements, while CSA certification streamlines compliance checks, delivering quicker approvals and reduced downtime in production environments.
