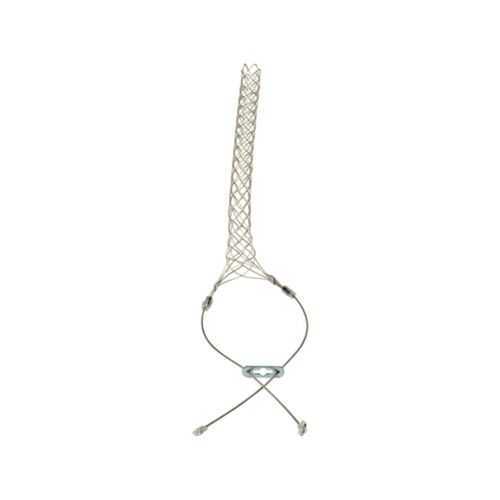

Eaton SGU125 Standard Support Grip - CSA Certified
Part Number: SGU125
Quick Summary
The Eaton SGU125 Standard Support Grip secures cables using a closed mesh locking bale for heavy-duty wire harnesses. Engineers often struggle to keep flexible cords from slipping or vibrating under load in demanding environments. CSA Certified for safety, it combines robust tin-coated bronze with a 1920 lb break strength to keep cables secure under vibration. The 18 inch bale length and 16 inch mesh length fit common harnesses, and the 1.25-1.49 inch cord diameter range aligns with standard industrial cables. This design reduces downtime during assembly and maintenance, delivering predictable performance and improved total cost of ownership.
Product Information
Extended Description
SGU125 Eaton: Eaton standard support grip, Closed Mesh Locking Bale, 18" bale, 1920 lbs break, 1.25-1.49" cord diameter, 16" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGU125
UPC
040893647784
Product Length/Depth
2.423 in
Product Height
0.863 in
Product Width
28.501 in
Product Weight
0.5 lb
Certifications
CSA Certified
Special features
Closed Mesh Locking Bale
Type
Standard support grip
Cord diameter
1.25-1.49 in
Material
Tin-Coated Bronze
Bale length
18 in
Break strength
1920 lbs
Mesh length
16 in
Feature → Business Impact → Application: The closed mesh locking bale provides secure, repeatable cord retention, reducing the risk of cord slippage and incidental disengagement. This translates to fewer production interruptions and enhanced operator safety on assembly lines and control panels. Application: use in heavy-duty machinery, control enclosures, and wiring harness installations where vibration is common. Feature → Business Impact → Application: The 1.25-1.49 inch cord diameter range accommodates a wide spectrum of industrial cables, enabling fast, tool-free securing while minimizing installation time. Application: ideal for panel builders and service technicians needing quick reconfiguration during maintenance windows. Feature → Business Impact → Application: The 1920 lb break strength offers high-load tolerance, supporting reliability in shock-prone environments and preventing cord fatigue. Application: suitable for high-vibration equipment and heavy power distribution setups. Feature → Business Impact → Application: Tin-Coated Bronze resists corrosion in humid or dusty facilities, extending service life and reducing replacement costs. Application: outdoor-rated or damp environments with long service intervals. Feature → Business Impact → Application: CSA Certified compliance reduces validation time for safety audits, ensuring alignment with industrial standards. Application: procurement and compliance teams can streamline supplier qualification. Feature → Business Impact → Application: The 18 in bale length and 16 in mesh length provide compatibility with standard harness geometries, improving consistency across assemblies. Application: system integrators can standardize grip choices across product lines for faster wiring.
Get a Quick Quote for a Eaton SGU125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGU125?
Enquire Now
FAQs
Installers should prepare the harness area, confirm cord diameter within 1.25–1.49 in, and seat the cord into the closed mesh bale. Tighten the securing mechanism to achieve a firm grip without crushing the conductor insulation. Check alignment to avoid pinching and verify the 18 in bale and 16 in mesh length fit within the enclosure.
Critical specs include cord diameter 1.25–1.49 in, break strength 1920 lbs, bale length 18 in, mesh length 16 in, product length 2.423 in, height 0.863 in, width 28.501 in, and material Tin-Coated Bronze. Also note CSA Certification and UPC 040893647784 for traceability.
Yes. SGU125 is CSA Certified, indicating compliance with recognized electrical safety standards. It supports reliable cord management in safety-critical panels and machinery, helping fulfill regulatory documentation and audit requirements while reducing field failure risks.
The grip uses Tin-Coated Bronze, which offers improved corrosion resistance compared to uncoated metals. This makes SGU125 more耐 resistant in humid, dusty, or damp facilities, contributing to longer service life and reduced maintenance costs in harsh conditions.
Expect lower maintenance downtime due to secure, vibration-resistant cabling and fewer reworks from cord slippage. The robust break strength reduces risk of cord fatigue under load, while CSA certification simplifies compliance checks. Overall, you gain consistent performance, safer installations, and reduced replacement and service costs over time.
