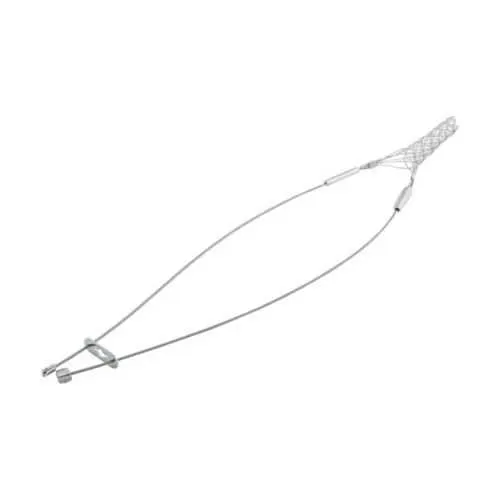

Eaton SGU75 Standard support grip - CSA Certified
Part Number: SGU75
Quick Summary
The Eaton SGU75 standard support grip securely anchors heavy cords in industrial wiring and cable management applications. For maintenance teams, loose grips lead to dynamic loads, wear, and downtime. CSA certified ensures electrical safety and compatibility, while tin-coated bronze resists corrosion in harsh environments. This grip offers reliable 1320 lb break strength and a 14 in mesh length, supporting safer, more efficient installations. A 0.75–0.99 in cord diameter range and an 18 in bale length align with common industrial cords and workflows. Designed for compatibility with tin-coated bronze locking bales, it simplifies inventory management and reduces spare part variety. In high-availability environments, the combination of size, strength, and material resilience supports uptime and safety metrics.
Product Information
Extended Description
SGU75 Eaton: Eaton standard support grip, Closed Mesh Locking Bale, 18" bale, 1320 lbs break, 0.75-0.99" cord diameter, 14" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGU75
UPC
040893683744
Product Length/Depth
0.501 in
Product Height
24.479 in
Product Width
5.044 in
Product Weight
0.26 lb
Certifications
CSA Certified
Special features
Closed Mesh Locking Bale
Type
Standard support grip
Cord diameter
0.75-0.99 in
Material
Tin-Coated Bronze
Bale length
18 in
Break strength
1320 lbs
Mesh length
14 in
Feature → Closed Mesh Locking Bale provides secure retention under vibration, reducing cord movement and wear. Business Impact → Fewer rework cycles and lower downtime in harsh production environments. Application → Ideal for 0.75-0.99 in cords in heavy-duty cable assemblies on conveyors and processing lines. Feature → Tin-Coated Bronze material offers corrosion resistance in aggressive environments. Business Impact → Longer service life lowers maintenance costs and part replacements. Application → Suitable for outdoor, wash-down, or chemically challenging areas within manufacturing facilities. Feature → 1320 lbs break strength gives a robust safety margin. Business Impact → Improves operator safety and minimizes risk of cord release during peak loads. Application → Useful in presses, heavy machinery, and high-torque equipment where cord grips must endure load spikes. Feature → 14 in mesh length and 18 in bale length provide predictable installation geometry. Business Impact → Simplifies planning, stocking, and field routing of cords. Application → Supports standard wiring device panels and modular installations across multiple lines. Feature → Lightweight 0.26 lb profile with 0.501 in depth enhances install speed and BOM clarity. Business Impact → Reduces handling time and total cost of ownership. Application → Fits compact control panels and space-constrained assemblies in automation racks and cabinets.
Get a Quick Quote for a Eaton SGU75
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGU75?
Enquire Now
FAQs
To install the SGU75, verify the cord diameter falls within 0.75 to 0.99 inches, rotate the grip onto the wire bundle, and seat the closed mesh locking bale firmly. Ensure the 18 inch bale length aligns with your panel or conduit routing, then secure with compatible hardware. This minimizes slippage and simplifies future inspections.
Key specs include a 1320 lbs break strength, tin-coated bronze material, 18 inch bale length, 14 inch mesh length, and a 0.75–0.99 inch cord diameter range. The grip weighs about 0.26 lb and fits within a compact 0.501 inch product depth, enabling robust performance without bulky hardware.
SGU75 suits manufacturing, packaging lines, conveyors, and energy/utilities environments where reliable cord retention is critical. It is ideal for wiring devices and connectivity assemblies in control panels and industrial cabinets, particularly where vibration and harsh conditions can cause cord migration.
The SGU75 is CSA Certified, reinforcing electrical safety and compatibility for North American installations. CE certification is not listed in the provided data; verify regional requirements with procurement if CE compliance is essential for your project.
By resisting corrosion, providing a high break strength, and featuring a lightweight, compact design, SGU75 reduces replacement frequency and maintenance downtime. This improves uptime, lowers spare-parts inventory, and simplifies BOM planning for automation projects.
