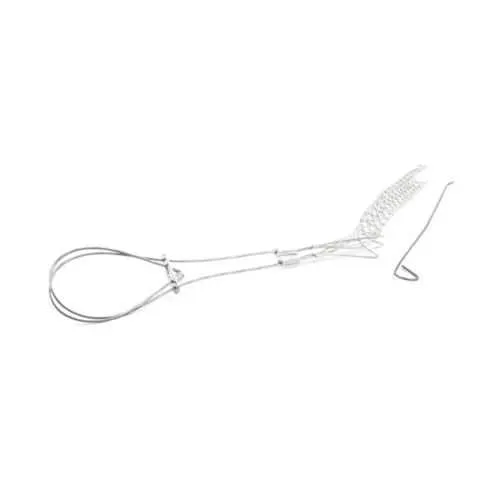

Eaton SGUR125 Standard support grip - CSA Certified
Part Number: SGUR125
Quick Summary
Eaton standard support grip secures wire rope in industrial wiring and connectivity applications, enhancing safety and reliability. Many teams struggle with loosened fittings and wear under load, leading to unplanned downtime. CSA Certified and designed to meet general electrical safety standards, this grip supports compliant installations in demanding environments. Leveraging the ISA/industrial wiring standards mindset, it delivers robust performance with tin-coated bronze for long-term reliability, while remaining compatible with common wiring and mesh grip systems to optimize project timelines and lifecycle costs.
Product Information
Extended Description
SGUR125 Eaton: Eaton standard support grip, Split Rod Locking Bale, 18" bale, 1920 lbs break, 1.25-1.49" cord diameter, 16" mesh length, Tin-Coated Bronze
Product Name
Eaton standard support grip
Catalog Number
SGUR125
UPC
040893648002
Product Length/Depth
1.223 in
Product Height
36.75 in
Product Width
2.425 in
Product Weight
0.6 lb
Certifications
CSA Certified
Special features
Split Rod Locking Bale
Type
Standard support grip
Cord diameter
1.25-1.49 in
Material
Tin-Coated Bronze
Bale length
18 in
Break strength
1920 lbs
Mesh length
16 in
Feature: Split Rod Locking Bale enables quick, secure engagement without complex adjustments. Benefit: Reduces installation time and human error, improving overall project efficiency in harsh industrial settings. Application: Ideal for heavy-duty wire rope assemblies in electrical installations where fast, repeatable securement is essential. Feature: Cord diameter range of 1.25-1.49 in ensures compatibility with a typical range of wire ropes used in plant envelopes. Benefit: Improves fit, minimizes need for adapters, and lowers stocking variety while preventing slippage. Application: Useful in material handling and crane-support contexts where precise grip sizing matters. Feature: Bale length of 18 in and mesh length of 16 in provide substantial holding capacity for medium-sized mesh grips. Benefit: Enhanced load distribution reduces wear and extends component life. Application: Suitable for mid-sized mesh grip applications in panel assemblies. Feature: Tin-Coated Bronze material offers corrosion resistance in challenging environments. Benefit: Longer service life and lower maintenance costs in humid or dusty facilities. Application: Industrial-grade environments where exposure to moisture or corrosive elements is common. Feature: Break strength of 1920 lbs ensures reliable performance under peak loads. Benefit: Improved safety margins and reduced risk of grip failure during peak operations. Application: High-load roped assemblies in manufacturing lines. Certification: CSA Certified provides regulatory confidence and standard-compliance alignment. Benefit: Streamlines procurement and audit processes, supporting quality and safety objectives. Application: Environments requiring CSA conformity as part of electrical safety programs.
Get a Quick Quote for a Eaton SGUR125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SGUR125?
Enquire Now
FAQs
SGUR125 supports a cord diameter range of 1.25 to 1.49 inches, enabling compatibility with common wire rope sizes used in industrial wiring. To maximize performance, verify the rope diameter falls within the specified range and ensure the load path aligns with the grip’s bale orientation. Use proper torque and seating to achieve full clamping force without over-tightening.
The 1.25-1.49 in cord diameter paired with a 1920 lbs break strength provides a sizable safety margin for many medium- to high-load rope applications. This combination reduces risk of grip creep under peak loads and supports continuous operation in demanding environments such as manufacturing lines or material handling, helping to prevent unexpected grip failure.
Yes, SGUR125 uses tin-coated bronze, which offers corrosion resistance in exposed or humid environments. The CSA certification further reinforces suitability for electrical installations in regulated settings. For outdoor exposure, consider additional protective enclosures or coatings as part of the broader installation strategy to maximize longevity.
Regular inspection of the grip, rope, and bale interface is advised to detect wear or deformation early. Clean debris from the grip area, verify the locking bale remains aligned, and re-torque as specified during periodic maintenance. Keeping the assembly free of corrosive residues and ensuring compatible mating components will extend service life and reduce replacement costs.
The SGUR125 delivers a tangible return by reducing installation time through its straightforward locking mechanism, lowering downtime and labor costs. Its robust 1920 lbs break strength and corrosion-resistant tin-coated bronze improve reliability, reducing maintenance cycles and unexpected replacement costs, while CSA certification supports audit readiness and regulatory compliance across projects.
