Eaton SMS3PDH1 Quick Mating Plastic Connector - IP30
Part Number: SMS3PDH1
Quick Summary
Eaton Souriau SMS3PDH1 is a quick-mating plastic rectangular connector designed for high-density field wiring in industrial automation. Engineers often struggle with long assembly times and unreliable strain relief in tight enclosures. UL94 V0, RoHS, and REACH compliance support safety audits and regulatory alignment across global operations. With a 3-position layout, IP30 protection, and integrated strain relief, it accelerates automation deployment while reducing field maintenance costs. The plug is compatible with three-crimp contacts and a straight plug configuration, simplifying panel-mount or cable-to-cable assemblies in constrained spaces. Designed for harsh environments, its plastic shell with IP30 protection and integrated strain relief enables reliable operation across automation, machinery, and control panels.
Product Information
Extended Description

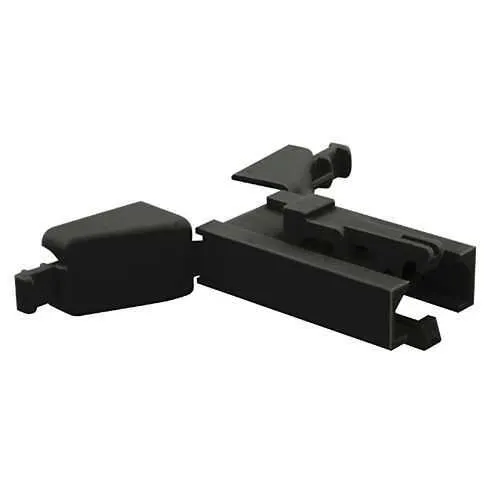

SMS3PDH1 Eaton: Cable plug with integrated strain relief; SMS3PDH1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3PDH1
Product Length/Depth
57.1 mm
Product Height
16.4 mm
Product Width
18.6 mm
Product Weight
4.6 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Plug
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Number Of Contacts
3
Number of cavity #16
3
Feature – three-crimp contact termination with an integrated strain-relief backshell provides a secure, vibration-tolerant cable interface. Business impact – this reduces conductor fatigue and field failures, lowering maintenance callbacks and warranty costs. Application – ideal for panel-mount junctions, machine interfaces, and robotic cells where dense wiring and reliable connections are critical. Feature – Push-Pull coupling with IP30-rated plastic shell enables fast mating and unmating without tools. Business impact – minimizes on-site labor during commissioning and service, accelerating time-to-value. Application – suitable for automation lines, control cabinets, and modular power-distribution assemblies that require quick field access and dependable sealing in non-harsh indoor environments. Feature – 3-position layout and straight plug configuration with a compact footprint (57.1 mm length, 16.4 mm height, 18.6 mm width). Business impact – saves panel space and supports higher-density mounting strategies. Application – well-suited for compact robotic grippers, multi-sensor networks, and distributed I/O hubs where space is at a premium. Feature – Operating temperature range -55 °C to 125 °C with UL94 V0, RoHS, and REACH compliance. Business impact – supports use in harsh environments while meeting safety and environmental standards, reducing risk in audits and product certifications. Application – industrial automation, machinery, and control panels that require durable, regulation-compliant connectors. Feature – Three-contact (3 cavities) design with IP30 protection. Business impact – ensures reliable performance in indoor environments with minimized risk of mis-mating and contamination. Application – modular automation assemblies and SMS-series compatibility for scalable deployments.
