Eaton SMS3PH3TR29 SMS Series Connector - IP30
Part Number: SMS3PH3TR29
Quick Summary
SMS3PH3TR29 is a compact quick-mating plastic rectangular connector designed for rugged industrial panel and board mounting. In environments where space is at a premium, engineers often battle bulky, hard-to-mate solutions that slow assembly and risk misalignment. This device addresses those challenges with a tight footprint and reliable mating action. It carries critical certifications such as UL94 V0 flammability, REACH compliance, and IP30 protection, supporting safety, regulatory, and environmental requirements. Built as a front-mount panel receptacle with a 3-pin PCB-ready contact layout, it delivers straightforward installation and long-term reliability. The combination of Tin pre-plated contacts, push-pull coupling, and a plastic shell supports fast field maintenance, cost control, and scalable deployment across applications.
Product Information
Extended Description

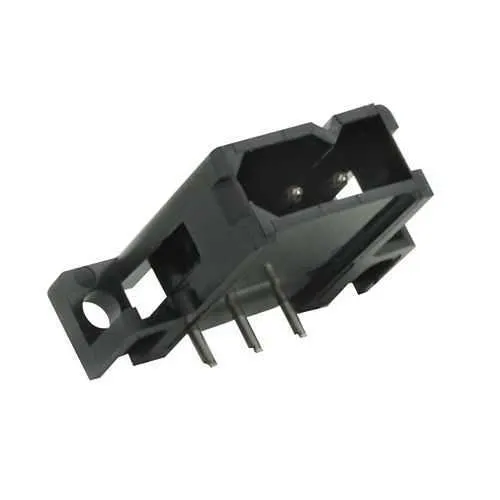

SMS3PH3TR29 Eaton: Right angle pin header boardmount with male contacts; SMS3PH3TR29
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3PH3TR29
Product Length/Depth
31.2 mm
Product Height
9.4 mm
Product Width
22.9 mm
Product Weight
3 g
Environmental conditions
Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
3
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
3
Number of cavity #16
3
Feature → Push-Pull coupling enables fast, repeatable mating with minimal alignment effort. Business Impact → Speeds assembly and reduces wear on mating interfaces, cutting maintenance time in automated lines. Application → Ideal for control panels and robotic modules that require quick field connections. Feature → Front-mount panel receptacle design saves enclosure space and simplifies cable routing. Business Impact → Increases usable panel area and reduces harness complexity, improving installation time and serviceability. Application → Suitable for compact PLC cabinets and machine dashboards where space is at a premium. Feature → Tin pre-plated PCB contacts improve electrical reliability and corrosion resistance. Business Impact → Enhances signal integrity over long service life and in challenging environments, lowering failure rates. Application → Critical for sensor interfaces and I/O headers in harsh plant settings. Feature → IP30 and UL94 V0/REACH compliance provide safety and regulatory alignment. Business Impact → Reduces risk of fire hazards, streamlines compliance reporting, and supports environmental commitments. Application → Mandatory in many automation, machine-building, and cabinet-building projects. Feature → 3-position, 3-contact layout with a front-mount panel receptacle offers straightforward wiring schemes. Business Impact → Simplifies design, speeds prototyping, and minimizes inventory varieties. Application → Fits common 3-wire sensor/actuator configurations in industrial automation. Feature → Wide operating temperature range (-55 °C to 125 °C) and plastic shell deliver robust performance. Business Impact → Maintains connection integrity in extreme factory conditions, reducing downtime. Application → Suitable for outdoor or temperature-pressured environments and high-temperature machinery.
Get a Quick Quote for a Eaton SMS3PH3TR29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS3PH3TR29?
Enquire Now
FAQs
Install SMS3PH3TR29 as a front-mount panel receptacle by aligning the 3 PCB contacts with the board pads and seating the connector into the panel opening. Solder or press-fit the PCB contacts as per your assembly method, then mate with the corresponding plug using the push-pull action. Ensure correct orientation and verify full engagement before powering the system.
The SMS3PH3TR29 combines IP30 protection with UL94 V0 flammability rating and REACH compliance, delivering safe operation and regulatory peace of mind. Its tin pre-plated contacts resist corrosion, and the plastic shell accommodates broad operating temperatures from -55 °C to 125 °C, making it reliable in factory floors, machinery cabinets, and robotics.
Key certifications include UL94 V0 flammability, IP30 protection, and REACH compliance. UL94 V0 ensures flame retardancy for safety in electrical components, IP30 provides protective performance against solid objects, and REACH ensures materials meet environmental and health standards—critical for automotive, machinery, and automation applications.
SMS3PH3TR29 is designed as part of the SMS series with front-mount panel receptacle characteristics and push-pull mating. The connector accessory option specifies no backshell possibility, so compatibility with backshells is not supported. For multi-part assemblies, ensure mating connectors come from the SMS family and match the 3-contact, PCB-ready configuration.
ROI benefits stem from faster mating cycles due to push-pull coupling, reduced assembly time with a compact front-mount design, and fewer maintenance events thanks to robust IP30 protection and tin-plated contacts. In high-mix, high-volume automation lines, these factors translate to lower labor costs, shorter downtimes, and improved overall equipment efficiency.
