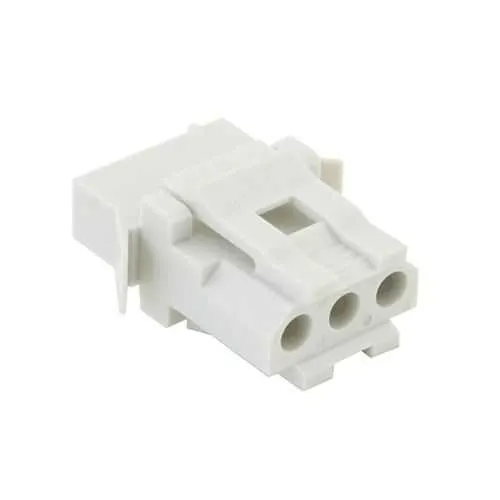

Eaton SMS3R3 Quick Mating Plastic Connector - UL94 V0
Part Number: SMS3R3
Quick Summary
The Eaton SMS3R3 is a quick mating plastic rectangular connector for panel-mount applications. In tight equipment spaces, this design reduces assembly time and mating errors by enabling push-pull coupling with crimped contacts. The SMS3R3 family delivers critical safeguards through UL94 V0 flame rating, IP40 protection, and RoHS/REACH compliance, supporting safer, regulatory-ready installations. By combining compact dimensions with reliable connectivity, it provides a practical, scalable solution for control panels, motor drives, and automation enclosures, while enabling suppliers to streamline sourcing and stocking. For engineers seeking robust panel wiring in space-constrained layouts, SMS3R3 delivers measurable time-and-cost savings without compromising performance.
Product Information
Extended Description
SMS3R3 Eaton: Flame retardant panel mount receptacle; SMS3R3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3R3
Product Length/Depth
25 mm
Product Height
15.2 mm
Product Width
16.2 mm
Product Weight
2.2 g
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
3
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Front Mount Panel
Number Of Contacts
3
Number of cavity #16
3
Feature: 3-position, 3-cavity receptacle design enables a compact, integrated wiring solution. Benefit: Frees panel space and simplifies harness routing, reducing enclosure size and installation complexity in control panels and machine cabinets. Application: Ideal for multi-signal or small-power assemblies where space is at a premium. Feature: Crimp contact delivery supports reliable, high-integrity terminations. Benefit: Improves connection reliability, lowers field repair incidents, and accelerates hand-off to assembly teams. Application: Wiring looms on automation equipment and on-board electronics in harsh factory environments. Feature: Push-Pull coupling provides fast, secure mating and disconnection. Benefit: Shortens maintenance cycles and minimizes downtime during panel servicing. Application: Frequent access panels and modular machine configurations. Feature: Plastic shell with lightweight construction and corrosion resistance. Benefit: Reduces overall weight of equipment and improves resistance to environmental exposure in industrial settings. Application: Shipping, installation on conveyors, and equipment housings. Feature: Environmental compliance including UL94 V0, IP40, RoHS, and REACH. Benefit: Ensures fire safety, enclosure protection, and regulatory alignment with automotive and industrial standards. Application: Machinery enclosures, control panels, and automation equipment in regulated industries. Feature: Front Mount Panel receptacle with 25 mm length and 16.2 mm width. Benefit: Predictable footprint simplifies panel cutouts and aligns with standard component spacing. Application: Panel-dinned wiring where space constraints drive a compact geometry.
