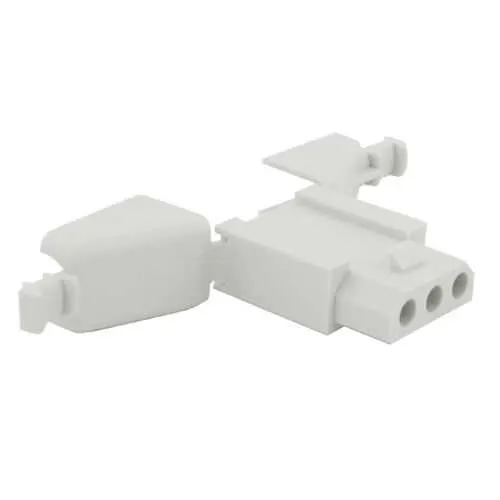

Eaton SMS3RDH3 SMS series plastic connector - IP40
Part Number: SMS3RDH3
Quick Summary
SMS3RDH3 is a quick-mating plastic rectangular connector for efficient wiring in industrial control panels. Engineers often confront bulky, fragile assemblies that slow installation and risk field failures; this compact receptacle with an integrated strain relief hood addresses those challenges. It complies with RoHS, UL94 V0 flammability, and REACH, while IP40 protection helps manage dust exposure in typical factory environments. With a 49.2 mm length, 16.2 mm width, and 9.9 mm height, plus a 3-position layout and push-pull coupling, the SMS3RDH3 reduces cabling footprint and simplifies maintenance across automation lines.
Product Information
Extended Description
SMS3RDH3 Eaton: Flame retardant receptacle with integrated strain relief hood; SMS3RDH3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3RDH3
Product Length/Depth
49.2 mm
Product Height
9.9 mm
Product Width
16.2 mm
Product Weight
3.5 g
Environmental conditions
RoHS Flammability rating UL94 V0 Fire & Smoke REACH
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
3
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Free Hanging
Number Of Contacts
3
Number of cavity #16
3
Feature: 3-position receptacle with 3 crimp contacts and a free-hanging receptacle design. Business Impact: Enables compact routing and robust termination, reducing assembly time and cabling errors in panel wiring. Application: Suitable for space-constrained control cabinets and machine backplanes. Feature: Integrated strain relief hood. Business Impact: Minimizes cable movement and wear, extending connector life and lowering maintenance costs. Application: High-vibration environments such as packaging lines and robotic stations. Feature: Push-Pull coupling. Business Impact: Quick, secure mating and release reduces downtime during maintenance and reconfiguration. Application: Conveyor systems and automated hands where frequent field servicing occurs. Feature: IP40, flame-retardant plastic shell. Business Impact: Provides baseline environmental protection and compliance with safety standards without added enclosure complexity. Application: General automation, control panels, and equipment exposed to limited dust. Feature: Lightweight design at 3.5 g and 49.2 mm length. Business Impact: Reduces overall system weight and footprint, enabling tighter layouts and energy-efficient installations. Application: Mobile machinery, compact robotics, and space-limited panels. Feature: 3 contacts with crimp delivery. Business Impact: Fast termination with reliable electrical performance, supporting consistent signal and power integrity. Application: Control wiring in automation cabinets and peripheral devices.
