Eaton SMS3RE3S6 Quick Mating Plastic Rectangular Connector - IP30
Part Number: SMS3RE3S6
Quick Summary
Eaton SMS3RE3S6 is a quick-mating plastic rectangular PCB connector for compact control panels. Sourcing reliable, space-saving connectors that mate consistently in tight enclosures can be challenging and slow automation progress. It carries IP30 protection, UL94 V0 flammability rating, and RoHS/REACH compliance, helping you meet safety and environmental standards. Designed for front-mount panel receptacle use with a 3-contact layout, it integrates with the Souriau SMS series family and supports easy PCB attachment, delivering reduced cabinet footprint and faster wiring for automated applications.
Product Information
Extended Description

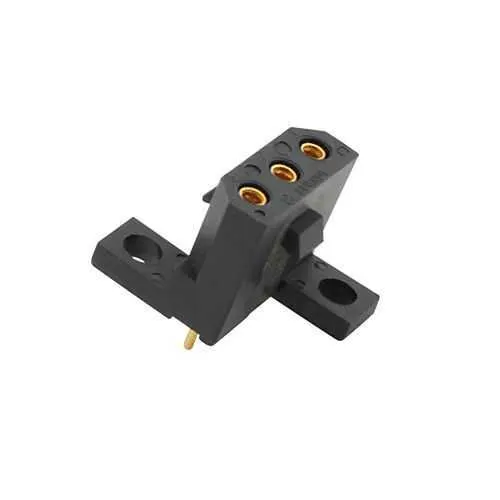

SMS3RE3S6 Eaton: Straight boardmount with long PCB female contacts (Gold & Tin plating); SMS3RE3S6
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3RE3S6
Product Length/Depth
13.4 mm
Product Height
16.2 mm
Product Width
5.9 mm
Product Weight
2.5 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
3
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
3
Number of cavity #16
3
