Eaton SMS3RE3TR29 SMS Series Connector - UL94 V0
Part Number: SMS3RE3TR29
Quick Summary
Eaton SMS3RE3TR29 is a compact PCB-mate receptacle for quick-mating connections in the Souriau SMS series. In tight panels, engineers struggle with space constraints, mating reliability, and long assembly times. Its IP30 protection, UL94 V0 flammability rating, and REACH compliance help meet safety, environmental, and regulatory requirements across industrial environments. This front-mount panel solution uses tin-plated PCB contacts and a durable plastic shell to reduce weight and cost. The design supports fast, error-free installations in automation cabinets, control panels, and equipment in energy, water, and factory automation sectors.
Product Information
Extended Description

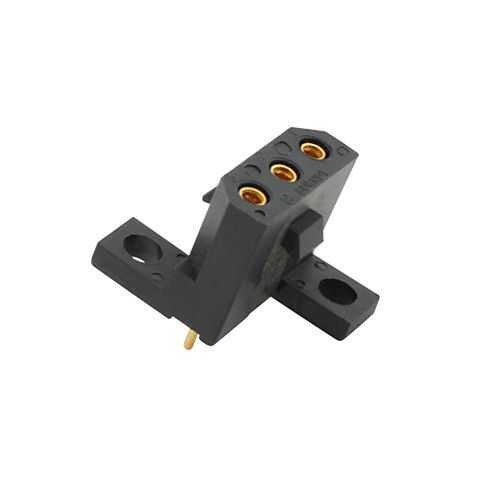

SMS3RE3TR29 Eaton: Straight boardmount with long PCB female contacts (Tin plating); SMS3RE3TR29
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3RE3TR29
Product Length/Depth
13.4 mm
Product Height
16.2 mm
Product Width
5.9 mm
Product Weight
2.5 g
Environmental conditions
REACH Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
3
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
3
Number of cavity #16
3
Feature → Business Impact → Application: Three-position, front-mount panel receptacle consolidates three electrical contacts into a compact footprint, reducing panel depth and wiring complexity. The result is a lighter, more efficient assembly with fewer part counts, ideal for dense control cabinets and equipment where space is at a premium. Feature → Business Impact → Application: Push-Pull coupling enables quick mating and unmating, minimizing maintenance downtime and mis-mating risk. In production lines, technicians connect or service channels rapidly without tools, supporting faster changeovers in packaging lines and robotics cells. Feature → Business Impact → Application: Tin pre-plated PCB contacts provide reliable electrical performance and corrosion resistance, extending service life in humid or dusty environments, which lowers maintenance costs and downtime in harsh manufacturing floors. Feature → Business Impact → Application: Operating temperature range of -55 to 125 °C and IP30 protection ensure dependable operation in challenging environments, reducing enclosure needs and replacements in automotive, energy, and process automation. Feature → Business Impact → Application: Lightweight plastic shell and compact dimensions (13.4 mm length, 16.2 mm height, 5.9 mm width) simplify cable routing and panel aesthetics, enabling more compact equipment and easier installation in space-constrained control panels.
