Eaton SMS3SE3T Quick Mating Connector - IP30
Part Number: SMS3SE3T
Quick Summary
SMS3SE3T from Eaton is a quick-mating plastic rectangular connector designed for boardmount applications in control panels and machine automation. Engineers often struggle with space constraints and slow assembly when wiring multiple signals in tight control cabinets. This solution highlights IP30 protection, UL94 V0 flame rating, and REACH compliance, delivering safer, regulation-aligned performance in harsh environments. For teams chasing reliability and cost efficiency, these features translate into faster harness builds, reduced field failures, and simpler maintenance in automated facilities. With its PCB-compatible contacts and compact footprint, it also supports scalable deployments alongside other Souriau SMS series components.
Product Information
Extended Description

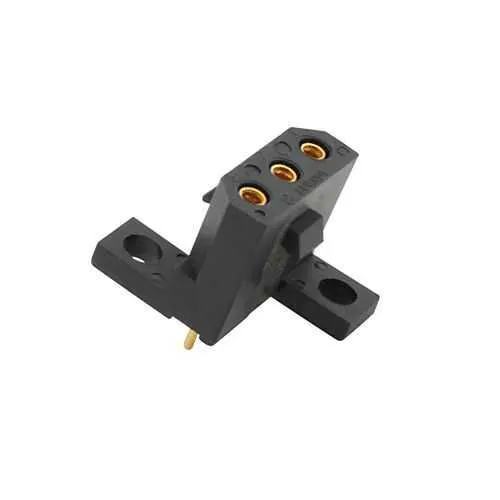

SMS3SE3T Eaton: Straight boardmount with short PCB female contacts (Tin plating); SMS3SE3T
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3SE3T
Product Length/Depth
13.4 mm
Product Height
16.2 mm
Product Width
5.9 mm
Product Weight
2.5 g
Environmental conditions
Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
3
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
3
Number of cavity #16
3
Feature is a quick-mating push-pull connector that accelerates assembly and reduces misalignment risk during panel wiring. Business impact is a measurable decrease in wiring time and improved production line throughput, especially in high-mix, low-volume environments where changeovers are frequent. Application: ideal for control panels and automation equipment that require rapid, secure PCB-to-cable connections without complex backshells. Feature is a 3-contact receptacle with front-mount panel integration and short PCB female contacts, enabling a compact footprint and straightforward PCB layout. Business impact includes simplified BOMs and predictable connector behavior across three signal paths, which translates to lower installation risk and faster debugging in industrial automation projects. Application: suitable for multi-signal boards and compact controller assemblies. Feature is tin pre-plated PCB contacts with push-pull coupling for reliable mating and corrosion resistance. Business impact includes long-term contact integrity and reduced maintenance costs over the life of the equipment. Application: common in harsh industrial environments where moisture and contaminants are present. Feature is IP30 protection with an operating range from -55 to 125 °C and a plastic shell, delivering lightweight, resilient performance. Business impact includes compliant operation under extreme temperatures and safe handling in automated systems. Application: critical for outdoor or heat-intensive control panels. Feature is a front-mount panel receptacle with a 3-layout, 3-contact configuration and no backshell option, simplifying installation and reducing accessory costs. Business impact includes lower inventory complexity and faster panel assembly. Application: compatible with streamlined automation harnesses and modular panel designs. Feature is a compact 13.4 mm depth, 16.2 mm height, and 5.9 mm width, totaling a 2.5 g weight, which supports space-constrained installations. Business impact includes weight reduction and easier routing in dense control enclosures. Application: well-suited for compact robot cells and machine control panels.
