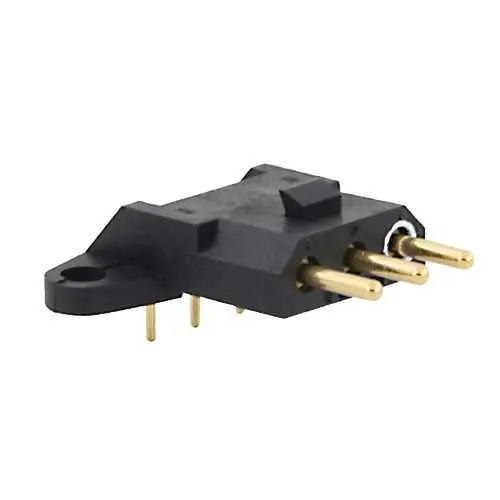

Eaton SMS3SE5K9 Quick Mating Plastic Connector - IP30
Part Number: SMS3SE5K9
Quick Summary
SMS3SE5K9 is a quick mating plastic rectangular connector designed for PCB-to-board and panel-mount automation applications. Engineers often face crowded control panels and unreliable mating in tight spaces. The design supports RoHS and REACH compliance with UL94 V0 flammability, strengthening safety and sustainability. With a front mount panel receptacle, 3 contacts, and gold-plated sockets, it delivers reliable connectivity in compact systems. This combination enables faster assembly, easier maintenance, and durable performance in demanding industrial environments.
Product Information
Extended Description
SMS3SE5K9 Eaton: Right angle boardmount with female contacts (Gold & Tin plating); SMS3SE5K9
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS3SE5K9
Product Length/Depth
20.5 mm
Product Height
6.8 mm
Product Width
30.2 mm
Product Weight
4.5 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
PCB 90°
Coupling type
Push-Pull
Degree of protection
IP30
Layout
3
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
3
Number of cavity #16
3
Right-angle boardmount with female contacts enables a compact footprint, reducing PCB area and enabling tighter control panels. Business impact: frees board real estate and simplifies routing in dense automation installations, supporting PCB-to-panel transitions and easier field service in industrial equipment. Application: suitable for front mount panel receptacle configurations in compact automation controllers and I/O modules. The push-pull coupling provides secure mating and vibration resistance, improving uptime in rugged environments. Business impact: lowers intermittent contact risk and minimizes maintenance cycles. Application: suitable for machinery enclosures with high vibration profiles. The 3-contact, 20.5 mm depth and 30.2 mm width deliver a compact yet robust interface for 3-way power or signal paths. Business impact: enables dense panel designs and scalable expansion in control cabinets. Application: preferred for small-form-factor PLCs and distributed I/O networks. The plastic shell and IP30 rating help manage heat and insulation in tight enclosures. Business impact: reduces enclosure heat issues and improves electrical isolation. Application: ideal for panel-mounted connectors in automated lines. RoHS and REACH compliance with UL94 V0 flammability support global regulatory alignment. Business impact: simplifies supplier qualification and risk management. Application: suitable for global manufacturing environments and regulated industries.
