Eaton SMS4H1 Plastic Rectangular Connector - 4-pole 125 °C
Part Number: SMS4H1
Quick Summary
The Eaton SMS4H1 is a rapid-mating plastic rectangular connector for control panels and harness assemblies. Engineers often wrestle with cable strain, moisture ingress, and slow mating during panel wiring. Although specific certifications aren’t listed here, the SMS4H1 offers a rugged -55 to 125 °C operating range and a plastic shell with a strain-relief backshell to support demanding industrial environments. For control panels and robotics, this translates to faster assembly, improved reliability, and reduced maintenance costs, making it a practical choice for high-mix, low-to-medium volume deployments.
Product Information
Extended Description

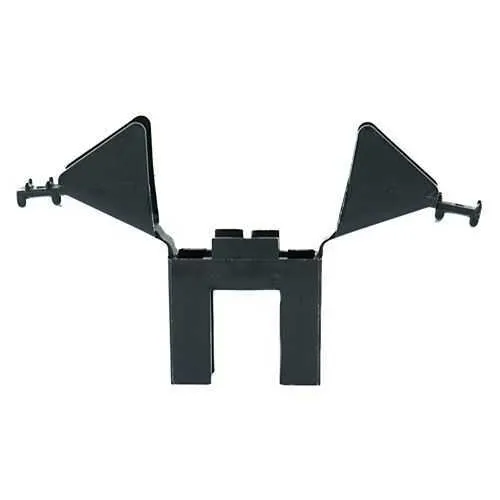

SMS4H1 Eaton: Strain relief hood, for 4 contacts connector; SMS4H1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS4H1
Number Of Poles
4-pole
Backshell type
Strain Relief
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Number Of Contacts
4
With a 4-pole configuration, the SMS4H1 enables multiple circuits in a single plug, reducing harness complexity and panel space. This consolidation lowers part counts and simplifies inventory, delivering cost savings and quicker field deployments in automation projects. The strain-relief backshell protects cables from bending at the interface, lowering wear, extending connector life, and reducing downtime during service. The plastic shell keeps the assembly lightweight and cost-effective while providing reliable electrical insulation in standard industrial settings, supporting safer and easier installation in control cabinets and equipment housings. Operating from -55 °C to 125 °C ensures consistent performance across cold starts and hot factory floors, minimizing rework in temperature-variant environments and enabling robust robotics and process control connections. Quick-mating design reduces assembly time on production lines, improving throughput and reducing commissioning delays, which is especially valuable for high-mix production or OEM harness builds. Compatibility with the SMS series streamlines procurement, testing, and maintenance, while the included Eaton Souriau drawings SE75800 provide exact mating and installation guidance, improving first-time fit and system integration.
Get a Quick Quote for a Eaton SMS4H1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS4H1?
Enquire Now
FAQs
Yes, the SMS4H1 is part of the Eaton Souriau SMS series and is designed to mate with corresponding SMS receptacles and inserts. To ensure proper alignment and performance, verify the mating pair against Eaton’s drawings SE75800 and the official SMS series compatibility guidelines.
The SMS4H1 is a 4-pole, plastic rectangular connector featuring a strain-relief backshell and a plastic shell. It is catalogued as SMS4H1 and supports operating temperatures from -55 °C to 125 °C, providing dependable performance in harsh industrial environments.
Ideal for control cabinets, wiring harnesses, robotics, and industrial equipment, the SMS4H1 delivers reliable 4-conductor interconnections with quick mating, reducing assembly time and inventory complexity while maintaining robust mechanical protection for cables.
Certification details are not listed in the provided data. For compliance needs, consult Eaton’s official datasheets or request CE, IP, or SIL certifications from the supplier to verify suitability for your regulatory requirements.
The strain-relief backshell minimizes cable movement at the connector interface, reducing wear, extending connector life, and lowering maintenance costs. This also helps maintain mating integrity in environments with vibration or dynamic loads common in automation and machinery wiring.
