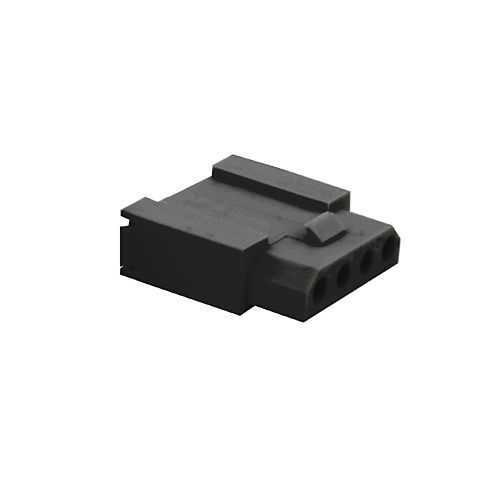

Eaton SMS4R1 Receptacle - IP30
Part Number: SMS4R1
Quick Summary
The Eaton SMS4R1 receptacle delivers quick mating for compact panel-mounted connections in industrial automation. Engineers often struggle with space constraints, wiring reliability, and tool-free mating in harsh environments. This design meets RoHS and REACH expectations and offers UL94 V0 flame rating with IP30 protection. By combining a lightweight plastic shell with a 4‑cavity push‑pull interface, it translates to faster assembly, lower maintenance, and reliable performance in control panels and automation gear. As a result, procurement gains predictable lead times and reduced total cost of ownership. This makes SMS4R1 a compelling choice for space-constrained control cabinets, sensor networks, and automation enclosures. With robust RoHS and REACH compliance, it helps meet sustainability goals too.
Product Information
Extended Description
SMS4R1 Eaton: Panel mount receptacle; SMS4R1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS4R1
Product Length/Depth
25 mm
Product Height
15.2 mm
Product Width
21.2 mm
Product Weight
3 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
4
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
4
Number of cavity #16
4
SMS4R1 is a front-mount panel receptacle from Eaton's Souriau SMS series, designed for four-position quick mating in compact spaces. Feature: four crimp contacts and four cavities reduce wiring complexity and harnessing time, delivering tangible efficiency gains on assembly lines and in control cabinets. Business impact: shorter commissioning times and fewer harness-related faults. Application: ideal for space‑constrained automation panels where reliability and speed matter. Feature: push-pull coupling enables tool-free mating with positive retention. Business impact: reduces maintenance downtime and simplifies field service. Application: machine enclosures and sensor housings requiring fast field connections. Feature: lightweight plastic shell (approx. 3 g) and compact footprint (25 mm length, 21.2 mm width, 15.2 mm height). Business impact: lowers panel weight, enables higher-density mounting, and frees cabinet space. Application: dense control panels and compact automation modules. Feature: IP30 protection and operating range from -55 °C to 125 °C. Business impact: predictable performance in harsh environments and broad industrial deployments. Application: machinery operating in temperature extremes. Feature: RoHS, REACH, and UL94 V0 compliance. Business impact: simplifies regulatory approvals and sustainability reporting. Application: industrial and automotive-grade installations. Feature: no backshell option; front-mount panel design simplifies integration. Business impact: reduces accessory inventory and simplifies installation planning. Application: panels where backshell customization is not required. Feature: contact delivery not included; crimp contacts must be sourced separately. Business impact: enables flexible procurement and tailored terminal selection. Application: systems demanding specific crimp terminals and supply chain control.
