Eaton SMS4R3 Quick Mating Plastic Connector - IP40
Part Number: SMS4R3
Quick Summary
The Eaton SMS4R3 plastic connector enables quick mating in panel-mounted automation applications. This compact receptacle reduces assembly time and mitigates misalignment risks during field installation. It meets UL94 V0 flame rating, RoHS and REACH compliance, and IP40 protection for controlled environments. Designed as a front-mount panel receptacle with four crimp contacts and a push-pull coupling, it offers reliable connectivity and lower maintenance costs. For engineers and buyers, the consistent performance across operating temperatures and the lightweight form factor translate to faster panel builds and predictable lifecycle costs. This makes it an ideal fit for control panels in machinery, automation cabinets, and energy equipment.
Product Information
Extended Description

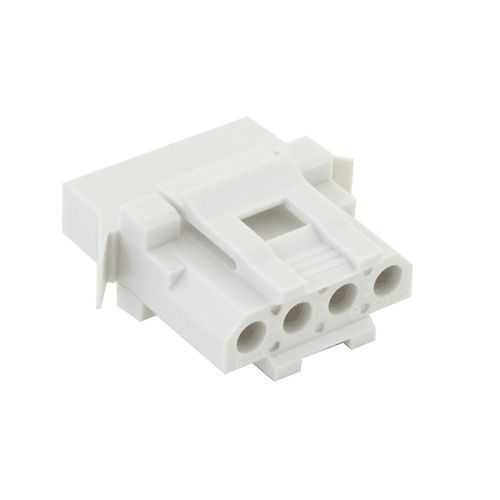

SMS4R3 Eaton: Flame retardant panel mount receptacle; SMS4R3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS4R3
Product Length/Depth
25 mm
Product Height
15.2 mm
Product Width
21.2 mm
Product Weight
3.1 g
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
4
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Front Mount Panel
Number Of Contacts
4
Number of cavity #16
4
Feature: 4-position layout with 4 cavities and a front-mount panel receptacle. Business impact: Streamlines wiring and reduces enclosure footprint while maintaining reliable signal integrity. Application: Suitable for compact control panels and multi-connector assemblies in industrial automation. The SMS4R3 design supports four crimp contacts in a single receptacle, enabling clean, scalable harnessing for prepared assemblies and field replacements. Feature: Push-Pull coupling with plastic shell. Business impact: Simplifies mating and demating, minimizes installation time, and improves resistance to vibration. Application: Ideal for equipment that undergoes frequent maintenance or reconfiguration in harsh manufacturing environments. Feature: Operating temperature range from -40 °C to 105 °C and IP40 protection. Business impact: Delivers durable performance in diverse factory floors and enclosures, reducing unplanned downtime. Application: Used in machinery, control cabinets, and panel-mounted interfaces that require dependable environmental tolerance. Feature: 4 contacts with crimp delivery and front-mount panel type. Business impact: Ensures fast, repeatable terminations and robust contact retention. Application: Perfect for plug-in panels where quick field servicing and consistent electrical performance are critical. Feature: Compliance and material choices (Plastic shell, UL94 V0, RoHS, REACH). Business impact: Supports regulatory compliance and safer material selection, lowering risk during audits. Application: Suitable for OEMs targeting certified components for medical, industrial, and automation equipment. Insight: The SMS4R3 combines a compact footprint with reliable mating and corrosion-resistant performance, making it a practical choice for modern control panels with stringent space and safety requirements.
