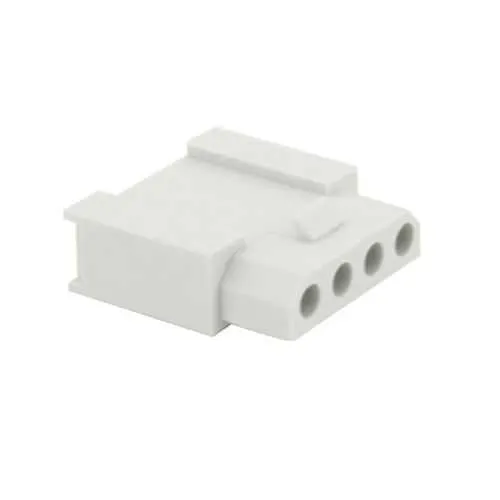

Eaton SMS4RD3 Plastic Rectangular Connector - IP40
Part Number: SMS4RD3
Quick Summary
The Eaton SMS4RD3 plastic rectangular connector provides quick mating for compact control wiring in automation environments. Engineers often struggle with bulky interfaces and mis-mating risk in tight electrical panels. With IP40 protection, UL94 V0 flame rating, and RoHS/REACH compliance, it simplifies procurement and ensures reliable performance across harsh environments. As part of the Eaton Souriau SMS series, this 4-position receptacle supports crimp contacts and push-pull coupling, delivering fast assembly and lower maintenance costs for machine builders and control panels.
Product Information
Extended Description
SMS4RD3 Eaton: Flame retardant receptacle without strain relief hood; SMS4RD3
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS4RD3
Product Length/Depth
32.9 mm
Product Height
8.4 mm
Product Width
23.7 mm
Product Weight
3.7 g
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP40
Layout
4
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Free Hanging
Number Of Contacts
4
Number of cavity #16
4
Feature: Four-position layout enables four circuits in a compact footprint, reducing panel density and freeing space for critical components. Business Impact: Improves wiring organization and lowers panel manufacturing time, contributing to shorter time-to-market for automated systems. Application: Ideal for machine control modules and sensor networks where space is at a premium. Feature: Push-Pull coupling simplifies engagement and removal, speeding assembly and service operations. Business Impact: Cuts field maintenance time and minimizes downtime during upgrades or repairs. Application: Suitable for rugged manufacturing environments with frequent connector mate/demate cycles. Feature: Crimp contact termination provides reliable, high-integrity connections without screw hardware. Business Impact: Delivers consistent electrical performance with repeatable crimp quality, reducing rework and warranty claims. Application: Preferred in high-vibration applications and where field termination is common. Feature: Free Hanging receptacle and plastic shell keep weight low and wiring flexible. Business Impact: Enhances installation efficiency and panel density while maintaining robust protection. Application: Warehouse automation, conveyor systems, and modular control cabinets. Feature: Environmental and regulatory compliance with IP40, UL94 V0, RoHS/REACH. Business Impact: Ensures regulatory alignment and safer operation across international projects, reducing certification delays. Application: Automotive/equipment manufacturing and process automation where standards matter.
Get a Quick Quote for a Eaton SMS4RD3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS4RD3?
Enquire Now
FAQs
Yes. SMS4RD3 is a 4-position receptacle designed for crimp contact termination and features a Push-Pull coupling for quick, reliable engagement. It is a free-hanging receptacle suitable for panel-mounted assemblies, reducing assembly time and field rework while maintaining robust electrical contact integrity in vibration-prone environments.
SMS4RD3 provides four contacts in a four-position layout with IP40 protection. It operates from -40 °C to 105 °C and carries a UL94 V0 flame rating, plus RoHS and REACH compliance. This combination supports reliable performance in harsh industrial environments and simplifies cross-border procurement.
The SMS4RD3 excels in compact control wiring for machine builders, process automation, and panel wiring where space is limited. Its four-position receptacle, crimp contacts, and Push-Pull coupling suit sensor/actuator networks and quick-connect wiring in tight panels, enabling faster diagnostics and easier field upgrades.
No. The connector specification notes no backshell possibility, which simplifies inventory and reduces accessory costs. This makes SMS4RD3 a lean choice for streamlined installations where space and cost efficiency are priorities, though you should plan for compatible mating components within the SMS series.
SMS4RD3 delivers faster mate/demate cycles with Push-Pull coupling and reliable crimp terminations, reducing assembly time and field service visits. Its compact, lightweight design conserves panel space and lowers weight-related costs, while RoHS/REACH and UL94 V0 compliance help minimize compliance-related risk and warranty expenses in manufacturing environments.
