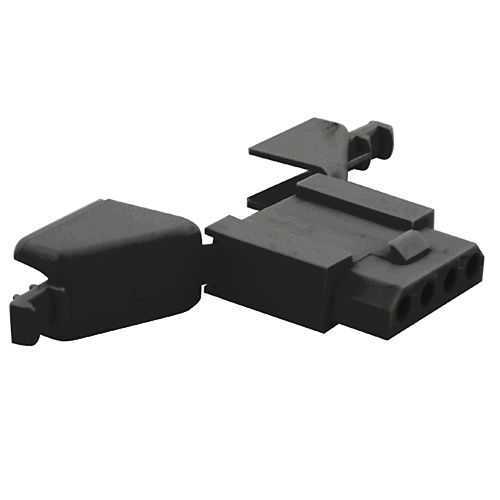

Eaton SMS4RDH1 Receptacle - Plastic Push-Pull IP30
Part Number: SMS4RDH1
Quick Summary
SMS4RDH1 is a quick‑mating plastic rectangular connector for industrial control panels and cable assemblies. When panel space is tight or vibration is present, engineers need reliable mating without complex setup. It carries IP30 protection, UL94 V0 flammability, and RoHS/REACH compliance for safe, compliant installations. The design combines a compact 4‑cavity footprint with Push‑Pull coupling and integrated strain relief, delivering faster assembly, reduced maintenance, and lower downtime for high‑demand automation applications.
Product Information
Extended Description
SMS4RDH1 Eaton: Cable receptacle with integrated strain relief hood; SMS4RDH1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS4RDH1
Product Length/Depth
49.2 mm
Product Height
9.9 mm
Product Width
21.2 mm
Product Weight
4.4 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Backshell type
Strain Relief
Connector accessory option
Integrated with connector
Connector type
Receptacle
Contact delivery
Not delivered
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP30
Layout
4
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Free Hanging
Number Of Contacts
4
Number of cavity #16
4
Feature: 4‑position, 4 contact receptacle with integrated strain relief hood. Benefit: Enables a compact, reliable harness in dense panel layouts, reducing component count and wiring complexity. Application: Ideal for control panels and compact automation installations where space is at a premium. Feature: Push‑Pull coupling for quick mating. Benefit: Cuts assembly and service time, improving line uptime and lowering labor costs. Application: Recurrent field replacements or line upgrades where speed matters. Feature: Free Hanging receptacle with cross‑barrel crimp contacts. Benefit: simplifies installation and routing, while maintaining strong vibration resistance. Application: Modular machines and equipment with frequent disconnections or modular field wiring. Feature: IP30 protection with UL94 V0, RoHS, and REACH compliance. Benefit: Ensures compliance and safer operation in harsh environments, reducing rework and regulatory risk. Application: Industrial automation, machinery enclosures, and wiring looms exposed to dust or heat. Feature: 4‑cavity layout and plastic shell. Benefit: Lightweight, space‑efficient design that supports scalable BOMs and straightforward sourcing. Application: Multi‑signal or mixed power/signal harnesses in small enclosures. Feature: Dimensions and weight (49.2 mm L, 21.2 mm W, 9.9 mm H, ~4.4 g). Benefit: Predictable fit in tight panels and precise enclosure planning, aiding CAD and procurement workflows. Application: BOM creation, fit‑gap analyses, and engineering documentation.
Get a Quick Quote for a Eaton SMS4RDH1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS4RDH1?
Enquire Now
FAQs
SMS4RDH1 uses crimp contact delivery and supports four contacts within a 4‑cavity layout. It is designed to work with standard Souriau SMS crimp terminals, enabling consistent termination and reliable strain relief. When selecting mating components, verify cable gauge and crimp tooling to ensure proper compression and long‑term retention in the free hanging receptacle.
Install SMS4RDH1 as a free hanging receptacle with the integrated strain relief hood engaged. Use the Push-Pull coupling for mating and unmate quickly during maintenance. Since contact delivery is not included, source the compatible crimp contacts separately and ensure correct crimp height and conductor insulation fit to preserve IP30 rating and mechanical integrity.
SMS4RDH1 operates from -55 °C to 125 °C, suitable for harsh industrial environments. It holds UL94 V0 flammability rating and complies with RoHS and REACH directives, supporting safe operation with restricted substances and regulatory compliance in many automation applications.
Yes. The Push-Pull coupling provides secure mating, and the integrated strain relief helps absorb cable movement, reducing contact wear. With IP30 protection and a compact 4‑cavity footprint, it maintains reliable connections in vibrating machinery and automated lines.
Official drawings are available as BSC20142400901.pdf from Eaton. This drawing package enables precise installation planning and BOM integration for engineering workflows and procurement alignment.
