Eaton SMS4RE3TR29 Rectangular Connector - IP30
Part Number: SMS4RE3TR29
Quick Summary
Eaton SMS4RE3TR29 is a quick-mating plastic rectangular connector for PCB interconnects in automation equipment. Engineers often struggle with reliable mating, space constraints, and complex field servicing in compact panel layouts. This series meets IP30 protection, UL94 V0 flame rating, and REACH requirements, helping ensure safe, compliant operation. Tin-plated PCB contacts and a front-mount panel receptacle simplify installation, reducing alignment issues and rework. The receptacle type and 4-position layout support straightforward wiring and maintenance in control panels, while push-pull coupling provides secure, tool-free mating. For designers, the SMS4RE3TR29 delivers robust reliability and lower total cost of ownership in rugged industrial environments.
Product Information
Extended Description

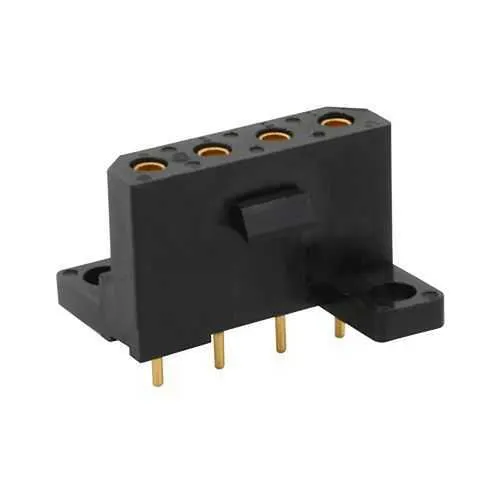

SMS4RE3TR29 Eaton: Straight boardmount with long PCB female contacts (Tin plating); SMS4RE3TR29
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS4RE3TR29
Product Length/Depth
13.4 mm
Product Height
21.3 mm
Product Width
5.9 mm
Product Weight
3.1 g
Environmental conditions
REACH Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
4
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
4
Number of cavity #16
4
Feature 1: Compact footprint with four PCB contacts and a 13.4 mm depth enables dense panel layouts. Business impact: frees panel space and speeds wiring, reducing cabinet manufacturing time. Application: automation controllers and small PLC panels where space is at a premium. Feature 2: Tin-plated PCB contacts deliver improved solderability and corrosion resistance. Business impact: lowers maintenance costs and extends service intervals. Application: long-life interconnects in harsh industrial environments. Feature 3: Push-pull coupling offers quick, secure mating without tools. Business impact: reduces downtime during assembly and field service. Application: high-volume production lines and frequent connector mating/demating. Feature 4: IP30 protection with UL94 V0 and REACH compliance provide safety and regulatory assurance. Business impact: supports regulatory audits and reduces risk in machinery builds. Application: sealed indoor control cabinets and compliant automation equipment. Feature 5: Front-mount panel receptacle and 4-contact configuration simplify installation and future expansion. Business impact: faster module swaps and scalable wiring. Application: modular control panels and compact automation architectures. Feature 6: No backshell option requires mindful cable routing but improves cost and simplicity. Business impact: lower BOM cost; Application: clean-area installations with planned cable management. Feature 7: Operating range from -55 °C to 125 °C ensures reliability across diverse manufacturing environments. Business impact: reduces the need for part substitutions; Application: automotive and industrial plants with wide temperature swings.
Get a Quick Quote for a Eaton SMS4RE3TR29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SMS4RE3TR29?
Enquire Now
FAQs
The SMS4RE3TR29 is a front-mount panel receptacle in the Souriau SMS series designed for PCB interconnects. It features four tin-plated PCB contacts, a push-pull coupling, and a compact 13.4 mm depth with a 5.9 mm width and 21.3 mm height. It is intended for front-panel mounting in protected enclosures and is compatible with standard board-mounted assemblies.
SMS4RE3TR29 provides four PCB contacts loaded for immediate use, tin-plated for solderability and corrosion resistance. It carries an IP30 protection rating, operates from -55 °C to 125 °C, and uses a plastic shell with UL94 V0 flammability and REACH compliance. These specs support reliable performance in controlled industrial environments and align with typical control-panel requirements.
Yes. The SMS4RE3TR29 is a front-mount panel receptacle designed for control cabinets and similar enclosures. Its front-mount panel receptacle type, compact 4-position layout, and push-pull mating streamline assembly and service. With IP30 protection and tin-plated PCB contacts, it tolerates vibration and temperature swings common in industrial settings while keeping wiring tidy and accessible.
SMS4RE3TR29 carries UL94 V0 flammability, REACH compliance, and IP30 protection, with a design that supports safe operation in hazardous or controlled environments. These certifications help meet safety and environmental requirements for food-and-beverage, machine-building, and automation projects, reducing risk during audits and enabling faster product acceptance by systems integrators.
To maximize ROI, plan for front-mount panels to simplify field servicing and reduce downtime. Use the loaded contacts to speed wiring, ensure proper mating with push-pull coupling, and account for the lack of a backshell by routing cables to protect against debris. Consider inventorying the four-contact module as a standard SKU to streamline replacements.
