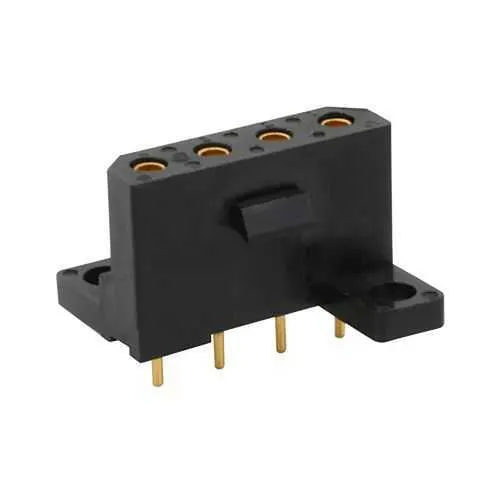

Eaton SMS4SE3T Receptacle Connector - IP30 Push-Pull
Part Number: SMS4SE3T
Quick Summary
Eaton SMS4SE3T is a quick-mating receptacle connector for compact PCB and front-panel assemblies. In tight spaces, engineers confront misalignment, insertion effort, and repeated mating failures that slow production. The design integrates IP30 protection, UL94 V0 flammability, and REACH compliance to meet harsh industrial standards. With tin pre plated PCB contacts, a 4-contact layout, and a push-pull coupling option, it reduces assembly time, improves reliability, and lowers lifecycle costs. The compact footprint and front-mount panel receptacle design support scalable, cost-efficient deployments across control panels and automation equipment.
Product Information
Extended Description
SMS4SE3T Eaton: Straight boardmount with short PCB female contacts (Tin plating); SMS4SE3T
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS4SE3T
Product Length/Depth
13.4 mm
Product Height
21.3 mm
Product Width
5.9 mm
Product Weight
3.1 g
Environmental conditions
Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Tin pre plated
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
4
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
4
Number of cavity #16
4
Feature → Business Impact → Application: 4-contact, front-mount panel receptacle with a 13.4 mm depth, 21.3 mm height, and 5.9 mm width delivers a compact footprint that minimizes harness length and system volume, reducing overall cabinet size and installation time. This translates to faster assembly, simpler cable routing, and lower labor costs in control panels and automated equipment that demand reliable signal integrity. The Push-Pull coupling provides one-handed mating and secure retention in vibration-prone environments, improving uptime and reducing maintenance interruptions in manufacturing lines and packaging systems. Tin pre plated PCB contacts offer corrosion resistance and stable electrical performance, extending connector life in harsh environments while supporting consistent solderability and reworkability during assembly. IP30 protection, UL94 V0 rating, and REACH compliance reinforce regulatory confidence for industrial applications, ensuring safe operation across machinery and robotics workplaces. End-user benefits include predictable mating cycles, reduced field service calls, and streamlined BOMs due to standardized SMS series components, enabling faster time-to-value for machine builders and system integrators.
