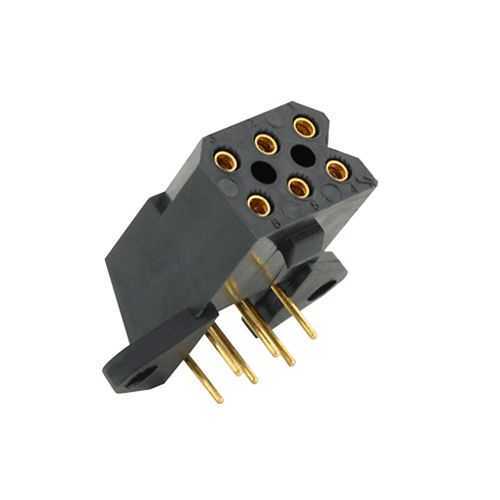

Eaton SMS6GE5 SMS Series Plastic Connector - IP30
Part Number: SMS6GE5
Quick Summary
The Eaton SMS6GE5 is a quick-mating plastic rectangular connector for 6‑position PCB mounting in industrial control panels. In tight panels, engineers often struggle with secure mating and durable field maintenance. It carries UL94 V0 flammability, REACH and RoHS compliance, and IP30 protection, ensuring safety and regulatory alignment in many environments. The 6‑way, front‑mount receptacle with PCB90° contacts and gold plating supports push‑pull coupling for quick field connections, reducing assembly time. This combination delivers predictable performance, lowers assembly and maintenance costs, and facilitates scalable system integration across machine builders and panel builders.
Product Information
Extended Description
SMS6GE5 Eaton: Right angle boardmount with female PCB contacts; SMS6GE5
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6GE5
Product Length/Depth
24.5 mm
Product Height
11.9 mm
Product Width
30.2 mm
Product Weight
6.7 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
PCB 90°
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
6
Number of cavity #16
6
Six-contact, gold‑plated PCB90° contacts reduce contact resistance and corrosion concerns, delivering reliable performance in high‑duty automation panels. Business impact: longer service intervals and lower downtime, translating to higher line uptime in manufacturing environments. Application: 6‑circuit control panel interfaces where compact, durable connections are essential. Pull‑to‑mate push‑pull coupling enables fast, tool‑free mating and disconnection, cutting installation time and simplifying field servicing. Business impact: faster commissioning and easier maintenance workflows. Application: assembly lines and machine dashboards requiring rapid harness connections. IP30 protection and UL94 V0, REACH, RoHS compliance provide regulatory confidence for internal equipment use. Business impact: mitigates compliance risk in plant environments. Application: indoor control panels with modest environmental exposure. The front‑mount panel receptacle design offers straightforward integration with minimal backshell considerations, supporting faster enclosure wiring. Business impact: simplified enclosure design and reduced BOM complexity. Application: machine builders aiming for lean assemblies. Operating temperature range from −55 °C to 125 °C ensures resilience in demanding industrial settings. Business impact: reliability across cold start scenarios and high‑temperature operation. Application: harsh environment robotics and material handling cells. Overall, the SMS6GE5 delivers a compact, lightweight, high‑performance interface with predictable lifecycle costs in modern automation architectures.
