Eaton SMS6GE53 SMS Series Connector - Push-Pull IP40
Part Number: SMS6GE53
Quick Summary
Eaton Souriau SMS series quick mating plastic rectangular connector enables fast, PCB-to-panel interconnects for control panels. Engineers often struggle with misalignment and downtime from hard-to-mate, bulky interfaces, which this design helps minimize. Key certifications include UL94 V0 flame rating, RoHS compliance, and IP40 protection, aligning with safety and environmental requirements. With gold-plated PCB contacts and a compact 6-position layout, it streamlines installation while improving signal integrity for automation projects. This combination supports scalable deployment in robotics, control cabinets, and machine builders, delivering business value by reducing maintenance and downtime.
Product Information
Extended Description

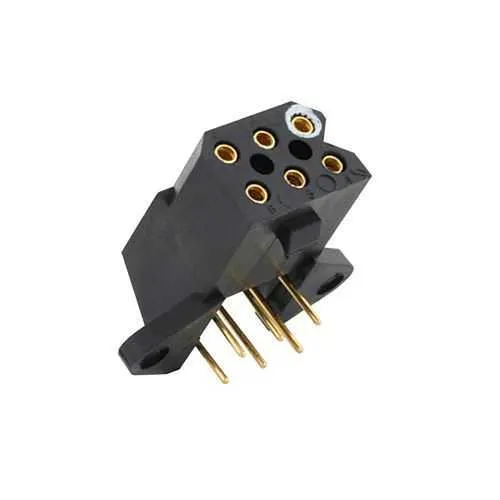

SMS6GE53 Eaton: Flame retardant right boardmount receptacle with female PCB contacts; SMS6GE53
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6GE53
Product Length/Depth
24.5 mm
Product Height
11.9 mm
Product Width
30.2 mm
Product Weight
6.42 g
Environmental conditions
REACH Fire & Smoke Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
PCB 90°
Coupling type
Push-Pull
Degree of protection
IP40
Layout
6
Shell material
Plastic
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Front Mount Panel
Number Of Contacts
6
Number of cavity #16
6
Feature → Business Impact → Application: The SMS6GE53 uses a front-mount panel receptacle with six PCB 90° contacts, delivering a clean, space-efficient interface. This arrangement minimizes wiring complexity and enables reliable mating with minimal alignment effort. Ideal for control cabinets and machine panels where quick field servicing is valued. Feature → Business Impact → Application: Push-Pull coupling enables faster mating and secure retention in vibration-prone environments, reducing assembly time and rework in conveyors and robotics. It supports reliable operation in harsh industrial settings while simplifying field maintenance. Feature → Business Impact → Application: Gold-plated contacts provide enhanced corrosion resistance and stable signal integrity for high-density interconnects, improving long-term performance in automated systems and control networks. Feature → Business Impact → Application: IP40 protection offers enclosure-level defense against solid ingress in indoor factory environments, helping maintain uptime in systems with exposed wiring or panel openings. Feature → Business Impact → Application: Connector accessory option indicates no backshell possibility, simplifying procurement and reducing parts count for standard panel installations. This streamlines sourcing and minimizes lifecycle costs in assembly lines and machine builds. Feature → Business Impact → Application: Front Mount Panel receptacle design supports straightforward mounting and serviceability, accelerating commissioning in control cabinets and modular automation architectures.
