Eaton SMS6GE6 Receptacle Connector - IP30, Gold PCB
Part Number: SMS6GE6
Quick Summary
Eaton SMS6GE6 is a quick-mating receptacle connector for PCB assemblies in industrial automation. Engineers struggle with secure mating, panel space, and long setup times; this SMS6GE6 streamlines the connection with a front-mount receptacle and robust gold-plated contacts. It meets IP30 protection, RoHS and REACH compliance, and UL94 V0 flame rating, ensuring safe operation in manufacturing environments. Designed for compact layouts and reliable service in control panels, it pairs well with Souriau SMS series components to reduce assembly steps and improve uptime. This combination supports PCB mount reliability and fast field replacement, delivering measurable business value through lower lifecycle costs. Trust the SMS6GE6 for demanding industrial environments.
Product Information
Extended Description

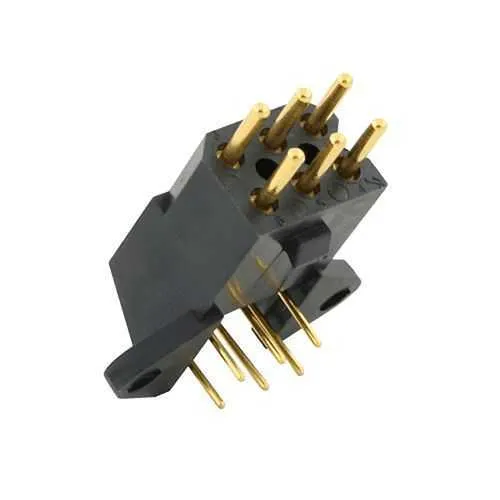

SMS6GE6 Eaton: Right angle boardmount with male PCB contacts; SMS6GE6
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6GE6
Product Length/Depth
24.5 mm
Product Height
11.9 mm
Product Width
30.2 mm
Product Weight
10.58 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
PCB
Coupling type
Push-Pull
Degree of protection
IP30
Layout
6
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Receptacle type
Front Mount Panel
Number Of Contacts
6
Number of cavity #16
6
Feature: Right-angle boardmount with male PCB contacts and 6 positions using Push-Pull coupling. Impact: Speeds assembly and ensures secure mating under vibration. Application: Ideal for compact control panels and robotics where space is tight and high-reliability is required. Feature: Front Mount Panel receptacle, IP30 rated plastic shell, RoHS/REACH compliant. Impact: Protects internal contacts from dust and debris while supporting regulatory compliance. Application: Enclosures and control panels in harsh industrial environments. Feature: Gold-plated PCB contacts; 6 contacts; corrosion-resistant plating. Impact: Improves signal integrity and long-term reliability in challenging environments. Application: Data and control signal paths in automation networks. Feature: Operating temperature range -55 to 125 °C; UL94 V0; compact external dimensions. Impact: Maintains performance across extreme ambient conditions and reduces fire risk in high-power cabinets. Application: Industrial machines and harsh factory floors. Feature: 6 cavities; front-mount receptacle design; compatibility with SMS series; light-weight construction (10.58 g). Impact: Space-saving, easy installation, and modular field upgrades. Application: Tight-panel installations in automated lines and machine builds.
