Eaton SMS6H1 Quick Mating Plastic Connector - 6-Pole
Part Number: SMS6H1
Quick Summary
Eaton SMS6H1 is a quick mating plastic rectangular connector designed for reliable wiring in industrial automation. This 6-pole interface delivers fast, misalignment-resistant mating in crowded control panels, reducing installation time and maintenance risk. Engineers often struggle with cable strain and rework caused by rugged environments, but the SMS6H1’s strain relief backshell helps protect conductors and extend harness life. While certifications vary by region, this connector family commonly aligns with CE safety expectations and offers rugged IP-rated options when paired with appropriate housings. By combining a lightweight plastic shell with robust temperature performance (-55 °C to 125 °C), the SMS6H1 supports durable performance in motors, sensors, and control wiring, delivering tangible business value.
Product Information
Extended Description

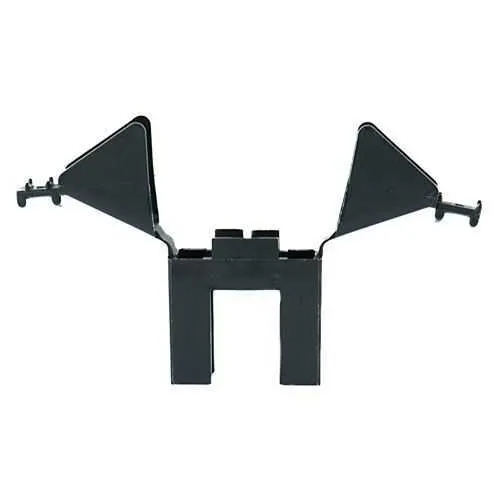

SMS6H1 Eaton: Strain relief hood, for 6 contacts connector; SMS6H1
Product Name
Eaton Souriau SMS series quick mating plastic rectangular connector
Catalog Number
SMS6H1
Number Of Poles
6-pole
Backshell type
Strain Relief
Shell material
Plastic
Operating temperature - max
125 °C
Operating temperature - min
-55 °C
Number Of Contacts
6
Feature: 6-pole, quick mating design enables rapid, error-free assembly. Impact: reduces installation time and minimizes mis-mates in busy control panels. Application: ideal for sensor and actuator wiring in machine automation. Feature: Strain relief backshell protects conductors from flex and vibration. Impact: extends harness life and lowers maintenance costs in harsh environments. Application: robotics, conveyors, and machinery where frequent movement occurs. Feature: Plastic shell keeps weight down and resists corrosion in typical factory atmospheres. Impact: easier handling and lower procurement cost compared with metal variants. Application: indoor machinery enclosures and modular automation cabinets. Feature: Operating temperature range from -55 to 125 °C. Impact: maintains performance across extreme cold and heat, reducing field failures. Application: metalworking, automotive, and outdoor installations with large temperature swings. Feature: Compatibility with the SMS series and standard 6-contact distribution isobar. Impact: simplifies design-in and spare-part compatibility, lowering total cost of ownership. Application: OEM machine builders and system integrators seeking scalable I/O solutions. Note: For high IP or sealing requirements, pair with appropriate backshell options and verify regional regulatory compliance to avoid integration gaps.
